FBConstraintRelation Class Reference

ConstraintRelation class. More...

#include <fbconstraint.h>

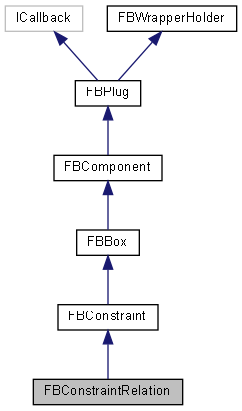

Inheritance diagram for FBConstraintRelation:

Public Member Functions
	FBConstraintRelation (const char *pName, HIObject pObject=NULL)
	Constructor. More...
	IObject_Declare (override)
FBBox *	SetAsSource (FBBox *pSource)
	Create a sender box. More...
FBBox *	ConstrainObject (FBBox *pConstrainedObject)
	Create a receiver box. More...
FBBox *	CreateFunctionBox (const char *pGroup, const char *pName)
	Create a function box. More...
bool	GetBoxPosition (FBBox *pBox, int &pX, int &pY)
	Get a box position in the GUI. More...
bool	SetBoxPosition (FBBox *pBox, int pX, int pY)
	Set a box position in the GUI. More...
Public Member Functions inherited from FBConstraint
	FBConstraint (const char *pName, HIObject pObject=NULL)
	Constructor. More...
	IObject_Declare (override)
virtual void	ActiveChanged ()
	Notification for Activation Status Change. More...
virtual void	RemoveAllAnimationNodes ()
	Remove animation nodes. More...
virtual void	SetupAllAnimationNodes ()
	Setup animation nodes. More...
virtual void	SnapSuggested ()
	Suggest 'snap'. More...
virtual void	FreezeSuggested ()
	Suggest 'freeze'. More...
virtual bool	Disable (FBModel *pModel)
	Disable constraint on pModel. More...
virtual bool	Enable (FBModel *pModel)
	Enable constraint on pModel. More...
virtual bool	AnimationNodeNotify (FBAnimationNode *pAnimationNode, FBEvaluateInfo *pEvaluateInfo, FBConstraintInfo *pConstraintInfo)
	Notification callback for connectors. More...
FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, FBModel *pModel, const char *pAttribute)
	Animation Node Creations (IN/OUT). More...
FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, FBModel *pModel, const char *pAttribute)
FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, FBProperty *pProperty)
	Animation Node Creations (IN). More...
virtual void	SaveModelState (FBModel *pModel, bool pS, bool pR, bool pT)
	Save current state of pModel. More...
virtual void	RestoreModelState (FBModel *pModel)
	Restore the saved model state onto pModel. More...
virtual void	FreezeSRT (FBModel *pModel, bool pS, bool pR, bool pT)
	Freeze current model state. More...
virtual FBConstraint *	Clone ()
	Clone the constraint. More...
int	ReferenceGroupGetCount ()
	Return the number of reference groups. More...
int	ReferenceGroupAdd (const char *pGroupName, int pMaxItemCount)
	Add a group of references. More...
const char *	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group. More...
int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question. More...
FBModel *	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference. More...
int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group. More...
bool	ReferenceAdd (int pGroupIndex, FBModel *pModel)
	Add a reference to a specified group. More...
bool	ReferenceRemove (int pGroupIndex, FBModel *pModel)
	Remove a reference to pModel from the group at pGroupIndex. More...
void	ReferenceRemoveAll ()
	Remove All References. More...
virtual bool	ReferenceAddNotify (int pGroupIndex, FBModel *pModel)
	Notification callbacks for when a reference is added or removed. More...
virtual bool	ReferenceRemoveNotify (int pGroupIndex, FBModel *pModel)
virtual bool	DeformerPreNotify (FBModel *pModel, FBEvaluateInfo *pEvaluateInfo, FBVertex *pBBoxMin, FBVertex *pBBoxMax)
	Deformation pre-notification function This function pass the evaluation information for deformation (if timing is required). More...
virtual bool	DeformerNotify (FBModel *pModel, const FBVertex *pSrcVertex, const FBVertex *pSrcNormal, int pCount, FBVertex *pDstVertex, FBVertex *pDstNormal)
	Deformation notification function. More...
virtual bool	DeformerBind (FBModel *pModel)
	Bind/Unbind pModel to deformation constraint. More...
virtual bool	DeformerUnBind (FBModel *pModel)
virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Store/Retrieve data to/from FBX files. More...
virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...
virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char *pName, const char *pDataType, bool pIsPublic=false, double *pMin=NULL, double *pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes. More...
virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char *pName, const char *pDataType, bool pIsPublic=false, double *pMin=NULL, double *pMax=NULL, bool pUserData=false)
virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...
virtual bool	AnimationNodeNotify (FBAnimationNode *pAnimationNode, FBEvaluateInfo *pEvaluateInfo)
	Notification function for animation thread. More...
virtual bool	ResolveCandidate (FBAnimationNode *pAnimationNode, FBEvaluateInfo *pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...
virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode *pAnimationNode, double *pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...
virtual ECandidateAction	SetStdCandidate (FBAnimationNode *pAnimationNode, double *pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...
virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...
virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...
virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...
virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...
virtual FBAnimationNode *	AnimationNodeOutGet ()
virtual const char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...
virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...
	IObject_Declare (override)
virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...
virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...
virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...
virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...
Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...
virtual	~FBComponent ()
	Destructor. More...
virtual bool	FBCreate ()
	Open Reality Creation function. More...
virtual void	FBDestroy ()
	Open Reality destruction function. More...
virtual void	FBDelete () override
	Open Reality deletion function. More...
virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...
virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...
bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...
void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...
void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...
FBProperty *	PropertyCreate (const char *pName, FBPropertyType pType, const char *pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...
void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...
void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...
void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...
void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...
virtual const char *	ClassName () override
	Get the class name. More...
virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...
const char *	GetFullName (void)
	Get the full name. More...
void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...
FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...
FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...
void	HardSelect ()
	HardSelect. More...
virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...
virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...
void	AddWrapper (FBScriptWrapper *)
void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyListBox	Boxes
	List: Boxes used in this constraint. More...
Public Attributes inherited from FBConstraint
FBPropertyBool	Deformer
	Read Write Property: Is a deformer constraint? More...
FBPropertyBool	HasLayout
	Read Write Property: Does the constraint have a layout? More...
FBPropertyString	Description
	Read Write Property: Long description of constraint. More...
FBPropertyBool	Active
	Read Write Property: Active state. More...
FBPropertyBool	Lock
	Read Write Property: Lock state. More...
FBPropertyAction	Snap
	Function Property: Snap constraint. More...
FBPropertyAnimatableDouble	Weight
	Read Write Property: Weight of constraint. More...
Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...
FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...
FBPropertyBool	Live
	Read Write Property: Is live? More...
FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...
Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...
FBPropertyListComponent	Components
	List: List of components. More...
FBPropertyListComponent	Parents
	List: Parents. More...
FBPropertyBool	Selected
	Read Write Property: Selected property. More...
FBPropertyString	Name
	Read Write Property: Unique name of object. More...
FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...
FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction {   eCandidateAccept ,   eCandidateIntercept ,   eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()
static void	FBComponentSetName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetName (FBComponent *pObject)
static void	FBComponentSetLongName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetLongName (FBComponent *pObject)
Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...
Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...
bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...
bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...
bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...
bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...
bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...
bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...
void	DisconnectAllSrc ()
	Remove all source connections. More...
void	DisconnectAllDst ()
	Remove all destination connections. More...
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...
bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...
bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...
bool	MoveSrcAt (FBPlug *pSrc, FBPlug *pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...
int	GetSrcCount ()
	Get source connection count. More...
FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...
int	GetDstCount ()
	Get destination connection count. More...
FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...
bool	BeginChange ()
	Begins a change on multiple plugs. More...
void	EndChange ()
	Ends a change on multiple plugs. More...
void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...
bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...
void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...
bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...
int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...
bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...
void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...
bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...
FBPlug *	GetOwner ()
	Get the owner of this plug. More...
FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...
int	GetOwnedCount ()
	Get the owned plug count. More...
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...
Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...
Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...
HIObject	mObject
	Handle on the Plug. More...
bool	mSDKComponent
	bool Plug is an SDK component. More...
Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...
static int	TypeInfo
	TypeInfo. More...
static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

ConstraintRelation class.

This class exposes the relation constraint and allows addition of new boxes and removal of existing ones.

Definition at line 453 of file fbconstraint.h.

Constructor & Destructor Documentation

FBConstraintRelation()

FBConstraintRelation	(	const char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters

pName	Name of constraint.
pObject	For internal use only (default is NULL).

Member Function Documentation

ConstrainObject()

FBBox* ConstrainObject

(

FBBox *

pConstrainedObject

)

Create a receiver box.

Use an existing FBBox object to create a receiver in the relation.

Parameters

pConstrainedObject

Destination box to insert in the constraint.

Returns

A place holder box for the object.

CreateFunctionBox()

FBBox* CreateFunctionBox	(	const char *	pGroup,
		const char *	pName
	)

Create a function box.

Ask the constraint to create new function box.

Parameters

pGroup	Name of the group under which the function is located in the Constraint Relation GUI (case-sensitive!).
pName	Name of the function, as seen in the GUI (case-sensitive!).

Returns

The newly created function box, or NULL if the name/group combination was invalid.

GetBoxPosition()

bool GetBoxPosition	(	FBBox *	pBox,
		int &	pX,
		int &	pY
	)

Get a box position in the GUI.

Get the position of a box within the constraint layout view.

Parameters

pBox	Box from which the information will be queried.
pX	X position.
pY	Y position.

Returns

A boolean value indicating success (True) or failure (False).

Warning

Should the function return False, the X and Y values will not be set.

SetAsSource()

FBBox* SetAsSource

(

FBBox *

pSource

)

Create a sender box.

Use an existing FBBox object to create a sender in the relation.

Parameters

pSource

Source box to insert in the constraint.

Returns

A place holder box for the object.

SetBoxPosition()

bool SetBoxPosition	(	FBBox *	pBox,
		int	pX,
		int	pY
	)

Set a box position in the GUI.

Set the position of a box within the constraint layout view.

Parameters

pBox	Box which needs to be moved.
pX	New X position.
pY	New Y position.

Returns

A boolean value indicating success (True) or failure (False).

Member Data Documentation

Boxes

FBPropertyListBox Boxes

List: Boxes used in this constraint.

Definition at line 505 of file fbconstraint.h.

---

The documentation for this class was generated from the following file:

• fbconstraint.h
