Optical device class. More...

#include <fboptical.h>

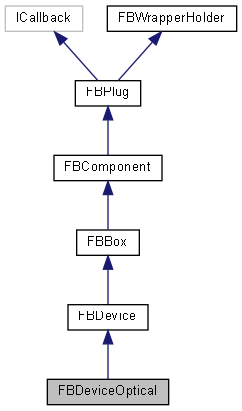

Inheritance diagram for FBDeviceOptical:

[legend]

Public Member Functions
	FBDeviceOptical (const char *pName, HIObject pObject=NULL)
	Constructor. More...

void	DeviceOpticalBeginSetup ()
	Begin device setup. More...

void	DeviceOpticalEndSetup ()
	End device setup. More...

virtual void	DeviceOpticalEvalAllMarkers (FBDeviceNotifyInfo &pDeviceNotifyInfo)
	Evaluate all optical markers for the device. More...

virtual void	DeviceOpticalRecordFrame (FBTime &pTime, FBDeviceNotifyInfo &pDeviceNotifyInfo)
	Record a frame of information from device. More...

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override
	Storage/Retrieval of information into the FBX file format. More...

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat) override

virtual bool	FBCreate () override
	Open Reality Creation function. More...

virtual void	FBDestroy () override
	Open Reality destruction function. More...

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo) override
	Notification function for animation thread. More...

virtual void	DeviceIONotify (kDeviceIOs pAction, FBDeviceNotifyInfo &pDeviceNotifyInfo) override
	Real-Time engine thread: Device I/O. More...

virtual void	RecordingInitAnimation (FBAnimationNode *pAnimationNode) override
	When recording, initialize animation. More...

virtual void	RecordingDoneAnimation (FBAnimationNode *pAnimationNode) override
	When recording, finish animation. More...

Public Member Functions inherited from FBDevice
	FBDevice (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=true, double pMin=NULL, double pMax=NULL, bool pUserData=false) override
	Creation of IN/OUT Animation Nodes. More...

virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=true, double pMin=NULL, double pMax=NULL, bool pUserData=false) override

virtual bool	DeviceOperation (kDeviceOperations pOperation)
	Operate device. More...

virtual void	DeviceTransportNotify (kTransportMode pMode, FBTime pTime, FBTime pSystem)
	Real-Time engine thread: Tranport notifications. More...

virtual bool	DeviceEvaluationNotify (kTransportMode pMode, FBEvaluateInfo *pEvaluateInfo)
	Real-Time engine thread: Output device evaluation. More...

virtual bool	ModelTemplateBindNotify (FBModel pModel, int pIndex, FBModelTemplate pModelTemplate)
	Model Template binding notification callback. More...

virtual bool	ModelTemplateUnBindNotify (int pIndex, FBModelTemplate *pModelTemplate)
	Model Template unbinding notification callback. More...

FBModel *	ModelBindingCreate ()
	Create a new model binding. More...

void	ModelBindingRootsList (FBModelList &pList)
	Get the list of all the possible root models for binding. More...

virtual const char *	FbxGetObjectType () override
	Returns the class type inherited by the class of an object, for example: 'Device'. More...

virtual void	DeviceSendCommand (kDeviceOperations pOperation)
	Send a command to the device. More...

	IObject_Declare (override)

void	AckOneSampleReceived ()
	Acknowlege that one sample was received (for statistical purposes). More...

void	AckOneBadSampleReceived ()
	Acknowlege that one bad sample was received (for statistical purposes). More...

void	AckOneSampleSent ()
	Acknowlege that one sample was sent (for statistical purposes). More...

Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...

virtual bool	ResolveCandidate (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...

virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...

virtual ECandidateAction	SetStdCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...

virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...

virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...

virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...

virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

virtual FBAnimationNode *	AnimationNodeOutGet ()

virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...

	IObject_Declare (override)

virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...

virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...

virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...

virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...

virtual	~FBComponent ()
	Destructor. More...

virtual void	FBDelete () override
	Open Reality deletion function. More...

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...

virtual const char *	ClassName () override
	Get the class name. More...

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...

const char *	GetFullName (void)
	Get the full name. More...

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...

void	HardSelect ()
	HardSelect. More...

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...

virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyListDeviceOpticalMarker	Markers
	List: Markers. More...

FBPropertyBool	SupportOcclusion
	Property: Does the device support occulsion? More...

FBPropertyBool	AutoAntialiasing
	Property: Is it auto-antialiasing? More...

FBPropertyDouble	DampingTime
	Property: Damping time for device. More...

FBPropertyModel	ModelOptical
	Property: Optical model for manipulation. More...

FBPropertyBool	ForceOpticalSamplingRate
	Property: Force the use of the optical sampling rate? More...

FBPropertyDouble	OpticalSamplingRate
	Property: Resampling rate for optical device. More...

FBPropertyBool	UseMarkerTimeStamp
	Property: Use the individual marker timestamps? More...

FBPropertyBool	SkipFrame
	Property: Skip Record Frame More...

FBPropertyTime	MarkerTimeStamp
	Property: TimeStamp for marker. More...

Public Attributes inherited from FBDevice
FBPropertyString	Status
	Read Write Property: Device information: status. More...

FBPropertyString	Information
	Read Write Property: Device information: information. More...

FBPropertyString	HardwareVersionInfo
	Read Write Property: Device information: hardware version. More...

FBPropertyTime	SamplingPeriod
	Read Write Property: Set this to how many times a device is to be evaluated in one second. There is no theoretical maximum value but practically you should consider scene complexity, system resources, network speed, etc. If set to 0: the device is evaluated on the sync signal. When the sync occurs; the device is scheduled to be evaluated. If you do not set, the sampling period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA). More...

FBPropertyBool	Online
	Read Write Property: Is online? More...

FBPropertyEvent	OnStatusChange
	Event: Status of device changed. More...

FBModelTemplate	ModelTemplate
	Component: Root of model template structure. More...

FBPropertyModel	ModelBindingRoot
	Component: Root of model currently binded model hierarchy. More...

FBPropertyDeviceSamplingMode	SamplingMode
	Read Write Property: Mode to use to record device. More...

FBPropertyInt	CommType
	Read Write Property: Type of communications. More...

FBPropertyListDeviceInstrument	Instruments
	List: List of instruments. More...

FBPropertyTime	RecordingStartTime
	Read Only Property: The time at which the recording started. More...

FBPropertyTime	RecordingStopTime
	Read Only Property: The time at which the recording stopped. More...

Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...

FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...

FBPropertyBool	Live
	Read Write Property: Is live? More...

FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyListComponent	Components
	List: List of components. More...

FBPropertyListComponent	Parents
	List: Parents. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

FBPropertyString	Name
	Read Write Property: Unique name of object. More...

FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Additional Inherited Members
Public Types inherited from FBDevice
enum	kDeviceOperations { kOpInit , kOpStart , kOpAutoDetect , kOpStop , kOpReset , kOpDone }
	Types of operations for device. More...

enum	kDeviceIOs { kIOStopModeRead , kIOPlayModeRead , kIOStopModeWrite , kIOPlayModeWrite }
	Types of I/O for device. More...

enum	kTransportMode { kPreparePlay , kPlayReady , kPlayStop , kStop , kPlay , kJog , kPlayReverse }
	Transport control types for device. More...

Public Types inherited from FBBox
enum	ECandidateAction { eCandidateAccept , eCandidateIntercept , eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...

Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

Optical device class.

Definition at line 814 of file fboptical.h.

Constructor & Destructor Documentation

◆ FBDeviceOptical()

FBDeviceOptical	(	const char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters

pName	Unique name of optical device.
pObject	Internal parent object.

Member Function Documentation

◆ AnimationNodeNotify()

virtual bool AnimationNodeNotify	(	FBAnimationNode *	pAnimationNode,
		FBEvaluateInfo *	pEvaluateInfo
	)

overridevirtual

Notification function for animation thread.

This function is called by the real-time engine in order to process animation information.

Parameters

pAnimationNode	Node containing the modified information.
pEvaluateInfo	Information concerning the evaluation of the animation (time, etc.)

Returns: true if animation node notification is successful.

Reimplemented from FBDevice.

◆ DeviceIONotify()

virtual void DeviceIONotify	(	kDeviceIOs	pAction,
		FBDeviceNotifyInfo &	pDeviceNotifyInfo
	)

overridevirtual

Real-Time engine thread: Device I/O.

The device I/O thread calls this function (required) which is a highly optimized non-blocking function registering input/output information from/to the device.

Parameters

pAction	Different reading/writing actions for the device.
pDeviceNotifyInfo	Access to the system and local time.

Reimplemented from FBDevice.

◆ DeviceOpticalBeginSetup()

void DeviceOpticalBeginSetup ( )

Begin device setup.

◆ DeviceOpticalEndSetup()

void DeviceOpticalEndSetup ( )

End device setup.

◆ DeviceOpticalEvalAllMarkers()

virtual void DeviceOpticalEvalAllMarkers ( FBDeviceNotifyInfo & pDeviceNotifyInfo )

virtual

Evaluate all optical markers for the device.

Pure virtual device-specific call to eval marker positions.

Parameters

pDeviceNotifyInfo Notification information when thread was called.

Remarks: This function is the device evaluation function, called by the real-time engine.

◆ DeviceOpticalRecordFrame()

virtual void DeviceOpticalRecordFrame	(	FBTime &	pTime,
		FBDeviceNotifyInfo &	pDeviceNotifyInfo
	)

virtual

Record a frame of information from device.

Virtual function that derived class may overide

Parameters

pTime	Time of evaluation.
pDeviceNotifyInfo	Notification information when thread was called.

◆ FBCreate()

virtual bool FBCreate ( )

overridevirtual

Open Reality Creation function.

Returns: Outcome of creation (true/false).

Reimplemented from FBDevice.

◆ FBDestroy()

virtual void FBDestroy ( )

overridevirtual

Open Reality destruction function.

Reimplemented from FBDevice.

◆ FbxStore()

virtual bool FbxStore	(	FBFbxObject *	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)

overridevirtual

Storage/Retrieval of information into the FBX file format.

Parameters

pFbxObject	Object to interface with FBX file format.
pStoreWhat	Attributes to store in FBX file.

Returns: true if successful.

Reimplemented from FBDevice.

◆ RecordingDoneAnimation()

virtual void RecordingDoneAnimation ( FBAnimationNode * pAnimationNode )

overridevirtual

When recording, finish animation.

Parameters

pAnimationNode Animation node to write information to.

Reimplemented from FBDevice.

◆ RecordingInitAnimation()

virtual void RecordingInitAnimation ( FBAnimationNode * pAnimationNode )

overridevirtual

When recording, initialize animation.

Parameters

pAnimationNode Animation node to read information from.

Reimplemented from FBDevice.

Member Data Documentation

◆ AutoAntialiasing

FBPropertyBool AutoAntialiasing

Property: Is it auto-antialiasing?

Definition at line 828 of file fboptical.h.

◆ DampingTime

FBPropertyDouble DampingTime

Property: Damping time for device.

Definition at line 829 of file fboptical.h.

◆ ForceOpticalSamplingRate

FBPropertyBool ForceOpticalSamplingRate

Property: Force the use of the optical sampling rate?

Definition at line 832 of file fboptical.h.

◆ Markers

FBPropertyListDeviceOpticalMarker Markers

List: Markers.

Definition at line 826 of file fboptical.h.

◆ MarkerTimeStamp

FBPropertyTime MarkerTimeStamp

Property: TimeStamp for marker.

Definition at line 837 of file fboptical.h.

◆ ModelOptical

FBPropertyModel ModelOptical

Property: Optical model for manipulation.

Definition at line 830 of file fboptical.h.

◆ OpticalSamplingRate

FBPropertyDouble OpticalSamplingRate

Property: Resampling rate for optical device.

Definition at line 833 of file fboptical.h.

◆ SkipFrame

FBPropertyBool SkipFrame

Property: Skip Record Frame

Definition at line 836 of file fboptical.h.

◆ SupportOcclusion

FBPropertyBool SupportOcclusion

Property: Does the device support occulsion?

Definition at line 827 of file fboptical.h.

◆ UseMarkerTimeStamp

FBPropertyBool UseMarkerTimeStamp

Property: Use the individual marker timestamps?

Definition at line 834 of file fboptical.h.

The documentation for this class was generated from the following file:

fboptical.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBDeviceOptical()

Member Function Documentation

◆ AnimationNodeNotify()

◆ DeviceIONotify()

◆ DeviceOpticalBeginSetup()

◆ DeviceOpticalEndSetup()

◆ DeviceOpticalEvalAllMarkers()

◆ DeviceOpticalRecordFrame()

◆ FBCreate()

◆ FBDestroy()

◆ FbxStore()

◆ RecordingDoneAnimation()

◆ RecordingInitAnimation()

Member Data Documentation

◆ AutoAntialiasing

◆ DampingTime

◆ ForceOpticalSamplingRate

◆ Markers

◆ MarkerTimeStamp

◆ ModelOptical

◆ OpticalSamplingRate

◆ SkipFrame

◆ SupportOcclusion

◆ UseMarkerTimeStamp
