Shader class. More...

#include <fbshader.h>

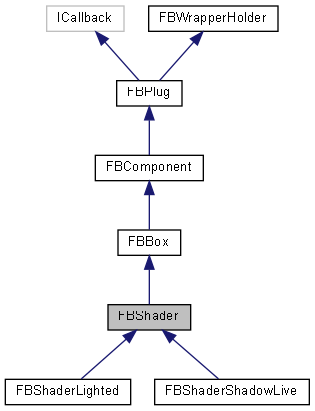

Inheritance diagram for FBShader:

[legend]

Public Member Functions
	FBShader (const char *pName, HIObject pObject=NULL)
	Protected constructor. More...

	IObject_Declare (override)

virtual FBShaderModelInfo *	NewShaderModelInfo (HKModelRenderInfo pModelRenderInfo, int pSubRegionIndex)
	Create a new shader-model information object. More...

virtual void	UpdateModelShaderInfo (FBRenderOptions pOptions, FBShaderModelInfo pInfo)
	Update shader-model information when model, material & texture mapping or shader setting change. More...

virtual void	DestroyShaderModelInfo (FBRenderOptions pOptions, FBShaderModelInfo pInfo)
	Destroy shader-model information object callback. More...

virtual bool	ReplaceAll (FBModel *pModel)
	Replace all shader in pModel. More...

virtual bool	Append (FBModel *pModel)
	Append shader to pModel. More...

virtual bool	ShaderNeedBeginRender ()
	Does the shader need a begin render call. More...

virtual void	ShaderBeginRender (FBRenderOptions pOptions, FBShaderModelInfo pInfo)
	Pre-rendering of shaders that is called only one time for a shader instance. More...

virtual void	ShadeModel (FBRenderOptions pOptions, FBShaderModelInfo pInfo, FBRenderingPass pPass)
	Real-time shading callback for shader without kFBShaderCapacityMaterialEffect. More...

virtual void	ShadeModelShadow (FBRenderOptions pRenderOptions, FBShaderModelInfo pInfo)
	Draw custom shadow shape callback for shader with kFBShaderCapacityDrawShadow but without kFBShaderCapacityMaterialEffect. More...

Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...

virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes. More...

virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)

virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Notification function for animation thread. More...

virtual bool	ResolveCandidate (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...

virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...

virtual ECandidateAction	SetStdCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format. More...

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)

virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...

virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...

virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...

virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

virtual FBAnimationNode *	AnimationNodeOutGet ()

virtual const char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...

virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...

	IObject_Declare (override)

virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...

virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...

virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...

virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...

virtual	~FBComponent ()
	Destructor. More...

virtual bool	FBCreate ()
	Open Reality Creation function. More...

virtual void	FBDestroy ()
	Open Reality destruction function. More...

virtual void	FBDelete () override
	Open Reality deletion function. More...

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...

virtual const char *	ClassName () override
	Get the class name. More...

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...

const char *	GetFullName (void)
	Get the full name. More...

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...

void	HardSelect ()
	HardSelect. More...

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...

virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Real-time shading callbacks for kFBMaterialEffectShader.
const char *	ShaderDescription
	Description. More...

FBPropertyBool	Enable
	Read Write Property: Is the shader Enabled More...

FBPropertyRenderingPass	RenderingPass
	Read Write Property: Rendering pass object are shaded in. More...

virtual void	ShaderPassTypeBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the shader instances of the same type, to setup the common state for all this type of shaders. More...

virtual void	ShaderPassTypeEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the shader instances of the same type, to clean the common state for all this type of shaders. More...

virtual void	ShaderPassInstanceBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the models associated with this shader instance, to setup the common state for this shader instance. More...

virtual void	ShaderPassInstanceEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the models associated with this shader instance, to clean the common state for this shader instance. More...

virtual void	ShaderPassMaterialBegin (FBRenderOptions pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo pInfo)
	For all the models mapped with this material and associated with this shader instance, to setup the common material state for this shader instance. More...

virtual void	ShaderPassMaterialEnd (FBRenderOptions pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo pInfo)
	For all the models mapped with this material and associated with this shader instance, to clean the common material state for this shader instance. More...

virtual void	ShaderPassGeometryBegin (FBRenderOptions pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo pInfo)
	For all the models instanced from the same geometry, to setup the common VBO state for this shader instance. More...

virtual void	ShaderPassGeometryEnd (FBRenderOptions pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo pInfo)
	For all the models instanced from the same geometry, to clean the common VBO state for this shader instance. More...

virtual void	ShaderPassModelsDraw (FBRenderOptions pRenderOptions, FBRenderingPass pPass, const FBArrayTemplate< FBShaderModelInfo > &pInfoArray)
	For all the models with the same material/geometry mappings, inside this functions, we only need to setup modelview matrix, and draw the meshes. More...

virtual void	ShaderPassModelDraw (FBRenderOptions pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo pInfo)
	Callback for Cg/CgFx shader to setup WorldMaitrx/WorldMatrixIT parameters. More...

virtual void	ShaderPassDrawShadowBegin (FBRenderOptions *pRenderOptions)
	Shadow draw pass begin notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow. More...

virtual void	ShaderPassDrawShadowEnd (FBRenderOptions *pRenderOptions)
	Shadow draw pass end notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow. More...

FBShaderPassActionCallback	GetShaderPassActionCallback () const
	Get Shader Pass Action Callback registration;. More...

void	SetShaderPassActionCallback (FBShaderPassActionCallback pCallback)
	Set Shader Pass Action Callback registration;. More...

virtual void	CloneShaderParameter (FBShader *pNewShader)
	Clone shader. More...

virtual void	DetachDisplayContext (FBRenderOptions pOptions, FBShaderModelInfo pInfo)
	Detach the display context from the shader. More...

virtual bool	FbxStore (FBFbxObject *pFbxObject)
	Storage of information into the FBX file format. More...

virtual bool	FbxRetrieve (FBFbxObject pFbxObject, FBRenderer pRenderer)
	Retrieval of information into the FBX file format. More...

void	InvalidateShaderVersion ()
	Invalidate Shader version to trigger model-shader informaton to be updated. More...

int	GetShaderVersion () const
	Return Shader Version. More...

FBShaderCapacity	GetShaderCapacity () const
	Return Shader Capacity (bitwise value) More...

bool	HasShaderCapacity (FBShaderCapacity pCapacity)
	Return true if shader has certain capacity. More...

void	SetShaderCapacity (FBShaderCapacity pCapacity, bool pOn)
	Set Shader Capacity (bitwise value). More...

int	GetDrawInstancedMaximumSize () const
	Get shader maximum size for draw instanced. More...

void	SetDrawInstancedMaximumSize (int pMaxSize)
	Set shader maximum size for draw instanced. More...

virtual void	UploadModelViewMatrixArrayForDrawInstanced (const double *pModelViewMatrixArray, int pCount)
	Callback for uploading the modelview array when draw instanced. More...

static FBRenderingPass	GetRenderingPassNeededForAlpha (FBAlphaSource pTransparency)
	In order to be called at the right passes, a shader must set the result of GetRenderingPassNeededForAlpha() to RenderingPass for a given transparency type. More...

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction { eCandidateAccept , eCandidateIntercept , eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...

Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...

FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...

FBPropertyBool	Live
	Read Write Property: Is live? More...

FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyListComponent	Components
	List: List of components. More...

FBPropertyListComponent	Parents
	List: Parents. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

FBPropertyString	Name
	Read Write Property: Unique name of object. More...

FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...

void	DisconnectAllSrc ()
	Remove all source connections. More...

void	DisconnectAllDst ()
	Remove all destination connections. More...

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...

int	GetSrcCount ()
	Get source connection count. More...

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...

int	GetDstCount ()
	Get destination connection count. More...

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...

bool	BeginChange ()
	Begins a change on multiple plugs. More...

void	EndChange ()
	Ends a change on multiple plugs. More...

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...

FBPlug *	GetOwner ()
	Get the owner of this plug. More...

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...

int	GetOwnedCount ()
	Get the owned plug count. More...

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...

HIObject	mObject
	Handle on the Plug. More...

bool	mSDKComponent
	bool Plug is an SDK component. More...

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...

static int	TypeInfo
	TypeInfo. More...

static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

Shader class.

Definition at line 452 of file fbshader.h.

Constructor & Destructor Documentation

◆ FBShader()

FBShader	(	const char *	pName,
		HIObject	pObject = `NULL`
	)

Protected constructor.

Parameters

pName	Shader name.
pObject	Internal parent object to own shader(default=NULL).

Member Function Documentation

◆ Append()

virtual bool Append ( FBModel * pModel )

virtual

Append shader to pModel.

Parameters

pModel Model to append shader to.

Returns: True if the operation is successful, false otherwise.

◆ CloneShaderParameter()

virtual void CloneShaderParameter ( FBShader * pNewShader )

virtual

Clone shader.

Parameters

pNewShader Shader to copy data to.

◆ DestroyShaderModelInfo()

virtual void DestroyShaderModelInfo	(	FBRenderOptions *	pOptions,
		FBShaderModelInfo *	pInfo
	)

virtual

Destroy shader-model information object callback.

Parameters

pOptions	Render options.
pInfo	Shader-model information object to destroy.

◆ DetachDisplayContext()

virtual void DetachDisplayContext	(	FBRenderOptions *	pOptions,
		FBShaderModelInfo *	pInfo
	)

virtual

Detach the display context from the shader.

Parameters

pOptions	Render options.
pInfo	Shader-model information object.

◆ FbxRetrieve()

virtual bool FbxRetrieve	(	FBFbxObject *	pFbxObject,
		FBRenderer *	pRenderer
	)

virtual

Retrieval of information into the FBX file format.

Parameters

pFbxObject	Object to interface with FBX file format.
pRenderer	Renderer being restored.

Returns: true if successful, false otherwise.

◆ FbxStore()

virtual bool FbxStore ( FBFbxObject * pFbxObject )

virtual

Storage of information into the FBX file format.

Parameters

pFbxObject Object to interface with FBX file format.

Returns: true if successful, false otherwise.

◆ GetDrawInstancedMaximumSize()

int GetDrawInstancedMaximumSize ( ) const

Get shader maximum size for draw instanced.

◆ GetRenderingPassNeededForAlpha()

static FBRenderingPass GetRenderingPassNeededForAlpha ( FBAlphaSource pTransparency )

staticprotected

In order to be called at the right passes, a shader must set the result of GetRenderingPassNeededForAlpha() to RenderingPass for a given transparency type.

It should not be called at rendering time.

Parameters

pTransparency Transparency type.

Returns: a mask of all rendering passes needed for DrawGeometry() to work correctly.

◆ GetShaderCapacity()

FBShaderCapacity GetShaderCapacity ( ) const

Return Shader Capacity (bitwise value)

◆ GetShaderPassActionCallback()

FBShaderPassActionCallback GetShaderPassActionCallback ( ) const

Get Shader Pass Action Callback registration;.

◆ GetShaderVersion()

int GetShaderVersion ( ) const

Return Shader Version.

◆ HasShaderCapacity()

bool HasShaderCapacity ( FBShaderCapacity pCapacity )

Return true if shader has certain capacity.

◆ InvalidateShaderVersion()

void InvalidateShaderVersion ( )

Invalidate Shader version to trigger model-shader informaton to be updated.

◆ NewShaderModelInfo()

virtual FBShaderModelInfo* NewShaderModelInfo	(	HKModelRenderInfo	pModelRenderInfo,
		int	pSubRegionIndex
	)

virtual

Create a new shader-model information object.

Parameters

pModelRenderInfo	Internal Model Render Info.
pSubRegionIndex

Returns: Newly allocated shader-model information object.

◆ ReplaceAll()

virtual bool ReplaceAll ( FBModel * pModel )

virtual

Replace all shader in pModel.

Parameters

pModel Model to replace all shader to.

Returns: True if the operation is successful, false otherwise.

◆ SetDrawInstancedMaximumSize()

void SetDrawInstancedMaximumSize ( int pMaxSize )

Set shader maximum size for draw instanced.

◆ SetShaderCapacity()

void SetShaderCapacity	(	FBShaderCapacity	pCapacity,
		bool	pOn
	)

Set Shader Capacity (bitwise value).

Only when the shader is not connected to any model, this function will take effect. otherwise, it will be ignored.

◆ SetShaderPassActionCallback()

void SetShaderPassActionCallback ( FBShaderPassActionCallback pCallback )

Set Shader Pass Action Callback registration;.

◆ ShadeModel()

virtual void ShadeModel	(	FBRenderOptions *	pOptions,
		FBShaderModelInfo *	pInfo,
		FBRenderingPass	pPass
	)

virtual

Real-time shading callback for shader without kFBShaderCapacityMaterialEffect.

This is called after all the calls to ShaderBeginRender.

Parameters

pOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShadeModelShadow()

virtual void ShadeModelShadow	(	FBRenderOptions *	pRenderOptions,
		FBShaderModelInfo *	pInfo
	)

virtual

Draw custom shadow shape callback for shader with kFBShaderCapacityDrawShadow but without kFBShaderCapacityMaterialEffect.

Parameters

pRenderOptions	Render options.
pInfo	Shader-model information.

◆ ShaderBeginRender()

virtual void ShaderBeginRender	(	FBRenderOptions *	pOptions,
		FBShaderModelInfo *	pInfo
	)

virtual

Pre-rendering of shaders that is called only one time for a shader instance.

Remarks: ShaderBeginRender is called as many times as the number of models affected by the instance of the shader in a given render pass. (ShaderNeedBeginRender must return true for this function to be called).

◆ ShaderNeedBeginRender()

virtual bool ShaderNeedBeginRender ( )

virtual

Does the shader need a begin render call.

Remarks: Re-implement this function and return true if you need it. This method is called once per shader on each render pass.

◆ ShaderPassDrawShadowBegin()

virtual void ShaderPassDrawShadowBegin ( FBRenderOptions * pRenderOptions )

virtual

Shadow draw pass begin notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow.

Parameters

pRenderOptions Render options.

◆ ShaderPassDrawShadowEnd()

virtual void ShaderPassDrawShadowEnd ( FBRenderOptions * pRenderOptions )

virtual

Shadow draw pass end notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow.

Parameters

pRenderOptions Render options.

◆ ShaderPassGeometryBegin()

virtual void ShaderPassGeometryBegin	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		FBShaderModelInfo *	pInfo
	)

virtual

For all the models instanced from the same geometry, to setup the common VBO state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShaderPassGeometryEnd()

virtual void ShaderPassGeometryEnd	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		FBShaderModelInfo *	pInfo
	)

virtual

For all the models instanced from the same geometry, to clean the common VBO state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShaderPassInstanceBegin()

virtual void ShaderPassInstanceBegin	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass
	)

virtual

For all the models associated with this shader instance, to setup the common state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.

◆ ShaderPassInstanceEnd()

virtual void ShaderPassInstanceEnd	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass
	)

virtual

For all the models associated with this shader instance, to clean the common state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.

◆ ShaderPassMaterialBegin()

virtual void ShaderPassMaterialBegin	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		FBShaderModelInfo *	pInfo
	)

virtual

For all the models mapped with this material and associated with this shader instance, to setup the common material state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShaderPassMaterialEnd()

virtual void ShaderPassMaterialEnd	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		FBShaderModelInfo *	pInfo
	)

virtual

For all the models mapped with this material and associated with this shader instance, to clean the common material state for this shader instance.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShaderPassModelDraw()

virtual void ShaderPassModelDraw	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		FBShaderModelInfo *	pInfo
	)

virtual

Callback for Cg/CgFx shader to setup WorldMaitrx/WorldMatrixIT parameters.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfo	Shader-model information.

◆ ShaderPassModelsDraw()

virtual void ShaderPassModelsDraw	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass,
		const FBArrayTemplate< FBShaderModelInfo * > &	pInfoArray
	)

virtual

For all the models with the same material/geometry mappings, inside this functions, we only need to setup modelview matrix, and draw the meshes.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.
pInfoArray	An array of Shader-model information to be displayed.

◆ ShaderPassTypeBegin()

virtual void ShaderPassTypeBegin	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass
	)

virtual

For all the shader instances of the same type, to setup the common state for all this type of shaders.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.

◆ ShaderPassTypeEnd()

virtual void ShaderPassTypeEnd	(	FBRenderOptions *	pRenderOptions,
		FBRenderingPass	pPass
	)

virtual

For all the shader instances of the same type, to clean the common state for all this type of shaders.

Parameters

pRenderOptions	Render options.
pPass	Rendering pass.

◆ UpdateModelShaderInfo()

virtual void UpdateModelShaderInfo	(	FBRenderOptions *	pOptions,
		FBShaderModelInfo *	pInfo
	)

virtual

Update shader-model information when model, material & texture mapping or shader setting change.

Parameters

pOptions	Render options.
pInfo	Shader-model information object to be updated.

◆ UploadModelViewMatrixArrayForDrawInstanced()

virtual void UploadModelViewMatrixArrayForDrawInstanced	(	const double *	pModelViewMatrixArray,
		int	pCount
	)

virtual

Callback for uploading the modelview array when draw instanced.

Parameters

pModelViewMatrixArray	pointer of 4x4 column major modelview matrix array, length is 44pCount;
pCount	number of modelview matrixs in the array.

Member Data Documentation

◆ Enable

FBPropertyBool Enable

Read Write Property: Is the shader Enabled

Definition at line 669 of file fbshader.h.

◆ RenderingPass

FBPropertyRenderingPass RenderingPass

Read Write Property: Rendering pass object are shaded in.

Set the property to kFBPassFlat if you want to be called at the first pass, kFBPassPostRender at the second pass, kFBPassFlat | kFBPassPostRender at both. The current pass will be the third argument of ShadeModel()

Definition at line 676 of file fbshader.h.

◆ ShaderDescription

const char* ShaderDescription

Description.

Definition at line 634 of file fbshader.h.

The documentation for this class was generated from the following file:

fbshader.h

Public Member Functions

Real-time shading callbacks for kFBMaterialEffectShader.

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBShader()

Member Function Documentation

◆ Append()

◆ CloneShaderParameter()

◆ DestroyShaderModelInfo()

◆ DetachDisplayContext()

◆ FbxRetrieve()

◆ FbxStore()

◆ GetDrawInstancedMaximumSize()

◆ GetRenderingPassNeededForAlpha()

◆ GetShaderCapacity()

◆ GetShaderPassActionCallback()

◆ GetShaderVersion()

◆ HasShaderCapacity()

◆ InvalidateShaderVersion()

◆ NewShaderModelInfo()

◆ ReplaceAll()

◆ SetDrawInstancedMaximumSize()

◆ SetShaderCapacity()

◆ SetShaderPassActionCallback()

◆ ShadeModel()

◆ ShadeModelShadow()

◆ ShaderBeginRender()

◆ ShaderNeedBeginRender()

◆ ShaderPassDrawShadowBegin()

◆ ShaderPassDrawShadowEnd()

◆ ShaderPassGeometryBegin()

◆ ShaderPassGeometryEnd()

◆ ShaderPassInstanceBegin()

◆ ShaderPassInstanceEnd()

◆ ShaderPassMaterialBegin()

◆ ShaderPassMaterialEnd()

◆ ShaderPassModelDraw()

◆ ShaderPassModelsDraw()

◆ ShaderPassTypeBegin()

◆ ShaderPassTypeEnd()

◆ UpdateModelShaderInfo()

◆ UploadModelViewMatrixArrayForDrawInstanced()

Member Data Documentation

◆ Enable

◆ RenderingPass

◆ ShaderDescription
