FBActor is used to link motion data to a character. More...

#include <pyfbsdk_generated.h>

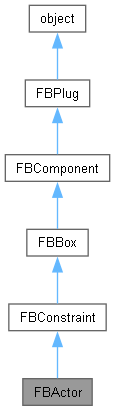

Inheritance diagram for FBActor:

[legend]

Public Member Functions
	FBActor (str pName)
	Constructor.

	FBDelete ()
	Actual Actor destructor.

FBSkeletonState	GetCurrentSkeletonState (bool pResetOrientation=False)
	Return the Current Skeleton State.

FBSkeletonState	GetDefaultSkeletonState ()
	Return the Default Skeleton State.

	GetDefinitionRotationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pRotationVector)
	Get Actor Rotation Definition.

	GetDefinitionScaleVector (FBSkeletonNodeId pSkeletonId, FBVector3d pScaleVector)
	Get Actor Scaling Definition.

	GetDefinitionTranslationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pTranslationVector)
	Get Actor Translation Definition.

	SetActorTranslation (FBVector3d pTranslationVector)
	Translate Actor, similar to moving the hips of the Actor in the UI.

	SetDefinitionRotationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pRotationVector, bool pSymmetricUpdate=True)
	Set Actor Rotation Definition.

	SetDefinitionScaleVector (FBSkeletonNodeId pSkeletonId, FBVector3d pScaleVector, bool pSymmetricUpdate=True)
	Set Actor Scaling Definition.

	SetDefinitionTranslationVector (FBSkeletonNodeId pSkeletonId, FBVector3d pTranslationVector, bool pSymmetricUpdate=True)
	Set Actor Translation Definition.

bool	Snap (FBRecalcMarkerSetOffset pRecalcOffset)
	Snap the marker set of the actor.

	UpdateValues (FBEvaluateInfo pEvalInfo)
	Update Internal Values to be corresponding to the Given Evaluate Information.

Public Member Functions inherited from FBConstraint
	FBConstraint (str pName)
	Constructor.

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
	Animation Node Creations (IN).

FBAnimationNode	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT).

FBConstraint	Clone ()
	Clone the constraint.

bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint.

bool	DeformerUnBind (FBModel pModel)

bool	Disable (FBModel pModel)
	Disable constraint on pModel.

	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state.

	FreezeSuggested ()
	Suggest 'freeze'.

bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group.

FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference.

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group.

int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references.

int	ReferenceGroupGetCount ()
	Return the number of reference groups.

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question.

str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group.

bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex.

	RemoveAllAnimationNodes ()
	Remove animation nodes.

	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel.

	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel.

	SetupAllAnimationNodes ()
	Setup animation nodes.

	SnapSuggested ()
	Suggest 'snap'.

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBColor	BodyColor
	Read Write Property: The color of the body of the actor.

FBAnimatableVector3d	ChestOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	ChestOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	ChestPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableDouble	FKFingerMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges.

FBAnimatableDouble	FKFingerTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges.

FBAnimatableDouble	FKThumbTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges.

FBAnimatableVector3d	HeadOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	HeadOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	HeadPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	HipsOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	HipsOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	HipsPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableBool	HumanFingerLimits
	Read Write Property: Enables/Disables human finger limits during actor solve.

bool	IKManip
	Read Write Property: Access to the IK Manip mode. This property is shared for all actors.

FBAnimatableVector3d	LeftAnkleOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftAnkleOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftAnklePosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftCollarOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftCollarOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftCollarPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftElbowOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftElbowOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftElbowPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftFootOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftFootOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftFootPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableDouble	LeftHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	LeftHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableVector3d	LeftHipOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftHipOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftHipPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftIndexAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftIndexAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftIndexBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftIndexBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftIndexCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftIndexCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftKneeOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftKneeOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftKneePosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftMiddleAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftMiddleAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftMiddleBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftMiddleBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftMiddleCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftMiddleCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftPinkyCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftRingCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftShoulderOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftShoulderOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftShoulderPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	LeftThumbAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftThumbAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftThumbBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftThumbBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftThumbCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftThumbCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	LeftWristOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	LeftWristOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	LeftWristPosition
	Read Write Property: Body part pivot of the actor.

bool	ManipulateOffsets
	Read Write Property: Flag to compute offsets while manipulating. If it is set to false, the manipulator is re-snapping as before. If it is set to true, offsets properties (T and R) are computed and candidated instead.

FBMarkerSet	MarkerSet
	Read Write Property: Associated marker set.

float	MarkerSetSize
	Read Write Property: The size of the markers of the actor.

FBAnimatableVector3d	NeckOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	NeckOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	NeckPosition
	Read Write Property: Body part pivot of the actor.

FBMarkerSet	OutputMarkerSet
	Read Write Property: Associated output marker set.

FBColor	PivotColor
	Read Write Property: The color of the pivot points of the actor.

bool	PivotPointsVisibility
	Read Write Property: Show or Hide the Pivot Points.

float	PivotSize
	Read Write Property: The size of the pivot points of the actor.

FBAnimatableVector3d	RightAnkleOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightAnkleOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightAnklePosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightCollarOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightCollarOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightCollarPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightElbowOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightElbowOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightElbowPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightFootOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightFootOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightFootPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableDouble	RightHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableDouble	RightHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

FBAnimatableVector3d	RightHipOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightHipOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightHipPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightIndexAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightIndexAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightIndexBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightIndexBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightIndexCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightIndexCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightKneeOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightKneeOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightKneePosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightMiddleAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightMiddleAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightMiddleBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightMiddleBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightMiddleCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightMiddleCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightPinkyCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightRingCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightShoulderOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightShoulderOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightShoulderPosition
	Read Write Property: Body part pivot of the actor.

FBAnimatableVector3d	RightThumbAOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightThumbAOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightThumbBOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightThumbBOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightThumbCOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightThumbCOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBAnimatableVector3d	RightWristOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	RightWristOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	RightWristPosition
	Read Write Property: Body part pivot of the actor.

FBColor	SkeletonColor
	Read Write Property: The color of the skeleton of the actor.

bool	SkeletonVisibility
	Read Write Property: Show or Hide the Skeleton.

bool	SymmetryEditRotation
	Read Write Property: Symmetry Edit (Rotation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

bool	SymmetryEditScaling
	Read Write Property: Symmetry Edit (Scaling) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

bool	SymmetryEditTranslation
	Read Write Property: Symmetry Edit (Translation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

bool	Visibility
	Read Write Property: Show or Hide the Actor Body.

FBAnimatableVector3d	WaistOffsetR
	Read Write Property: Local rotation offset that is applied after the actor solve

FBAnimatableVector3d	WaistOffsetT
	Read Write Property: Local translation offset that is applied after the actor solve

FBVector3d	WaistPosition
	Read Write Property: Body part pivot of the actor.

Public Attributes inherited from FBConstraint
bool	Active
	Read Write Property: Active state.

bool	Deformer
	Read Write Property: Is a deformer constraint?

str	Description
	Read Write Property: Long description of constraint.

bool	HasLayout
	Read Write Property: Does the constraint have a layout?

bool	Lock
	Read Write Property: Lock state.

FBAction	Snap
	Function Property: Snap constraint.

FBAnimatableDouble	Weight
	Read Write Property: Weight of constraint.

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

FBActor is used to link motion data to a character.

In MotionBuilder, an actor is a model used to link captured motion data to a character. Use functions in FBActor to set the body color, skeleton color, pivot color, marker size, pivot size, pivot information, etc. on an actor.These classes are under development and may change dramatically between versions.To obtain the list of actors present in a scene, you need to create an instance of class FBSystem, to obtain the current scene. The FBScene object holds the list of actors in the property Actors.

FBSystem lSystem;
FBScene* lScene = lSystem.Scene;
for( int lIdx = 0; lIdx < lScene->Actors.GetCount(); ++lIdx )
{
    FBTrace( "Actor[%d]: '%s'\n", lIdx, (char*)lScene->Actors[lIdx] );
}

The current actor selected in the Character tool can be obtained via the FBApplication object.

FBApplication lApplication;
FBActor* lActor = lApplication.CurrentActor;
if( lActor )
{
    FBTrace( "Current actor is: '%s'\n", (char*)lActor->Name );
}
else
{
    FBTrace( "No actor currently selected\n" );
}

Constructor & Destructor Documentation

◆ FBActor()

FBActor ( str pName )

Constructor.

Parameters

pName Name of new actor.

Member Function Documentation

◆ FBDelete()

FBDelete ( )

Actual Actor destructor.

This method is used to delete the actual actor object represented by an instance of FBActor.

See sample: DeleteHierarchy.py.

◆ GetCurrentSkeletonState()

FBSkeletonState GetCurrentSkeletonState ( bool pResetOrientation = False )

Return the Current Skeleton State.

Parameters

pResetOrientation When set to true, all rotations in the state will be reset to characterization values.

Returns: Current Skeleton State

Note: Usage of this function can be found in script sample /bin/config/Scripts/Samples/Character/CharacterMarkerSetFromActor.py

◆ GetDefaultSkeletonState()

FBSkeletonState GetDefaultSkeletonState ( )

Return the Default Skeleton State.

Returns: Default Skeleton State

◆ GetDefinitionRotationVector()

GetDefinitionRotationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pRotationVector
	)

Get Actor Rotation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pRotationVector	Actor Rotation Definition for the given ID

◆ GetDefinitionScaleVector()

GetDefinitionScaleVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pScaleVector
	)

Get Actor Scaling Definition.

Parameters

pSkeletonId	Skeleton Node Id
pScaleVector	Actor Scaling Definition for the given ID

◆ GetDefinitionTranslationVector()

GetDefinitionTranslationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pTranslationVector
	)

Get Actor Translation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pTranslationVector	Actor Translation Definition for the given ID

◆ SetActorTranslation()

SetActorTranslation ( FBVector3d pTranslationVector )

Translate Actor, similar to moving the hips of the Actor in the UI.

Only effective when IKManip property is set to false.

Parameters

pTranslationVector Will move the entire Actor to pTranslationVector coordinate

◆ SetDefinitionRotationVector()

SetDefinitionRotationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pRotationVector,
		bool	pSymmetricUpdate = `True`
	)

Set Actor Rotation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pRotationVector	Actor Rotation value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ SetDefinitionScaleVector()

SetDefinitionScaleVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pScaleVector,
		bool	pSymmetricUpdate = `True`
	)

Set Actor Scaling Definition.

Parameters

pSkeletonId	Skeleton Node Id
pScaleVector	Actor Scaling value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ SetDefinitionTranslationVector()

SetDefinitionTranslationVector	(	FBSkeletonNodeId	pSkeletonId,
		FBVector3d	pTranslationVector,
		bool	pSymmetricUpdate = `True`
	)

Set Actor Translation Definition.

Only effective when IKManip property is set to false.

Parameters

pSkeletonId	Skeleton Node Id
pTranslationVector	Actor Translation value for the given ID
pSymmetricUpdate	Update right and left part at the same time

◆ Snap()

bool Snap ( FBRecalcMarkerSetOffset pRecalcOffset )

Snap the marker set of the actor.

Returns: True if the operation completed successfully.

◆ UpdateValues()

UpdateValues ( FBEvaluateInfo pEvalInfo )

Update Internal Values to be corresponding to the Given Evaluate Information.

Parameters

pEvalInfo Evaluate Info of the Values

Member Data Documentation

◆ BodyColor

FBColor BodyColor

Read Write Property: The color of the body of the actor.

◆ ChestOffsetR

FBAnimatableVector3d ChestOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ ChestOffsetT

FBAnimatableVector3d ChestOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ ChestPosition

FBVector3d ChestPosition

Read Write Property: Body part pivot of the actor.

◆ FKFingerMultiplier

FBAnimatableDouble FKFingerMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges.

◆ FKFingerTipMultiplier

FBAnimatableDouble FKFingerTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges.

◆ FKThumbTipMultiplier

FBAnimatableDouble FKThumbTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges.

◆ HeadOffsetR

FBAnimatableVector3d HeadOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ HeadOffsetT

FBAnimatableVector3d HeadOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ HeadPosition

FBVector3d HeadPosition

Read Write Property: Body part pivot of the actor.

◆ HipsOffsetR

FBAnimatableVector3d HipsOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ HipsOffsetT

FBAnimatableVector3d HipsOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ HipsPosition

FBVector3d HipsPosition

Read Write Property: Body part pivot of the actor.

◆ HumanFingerLimits

FBAnimatableBool HumanFingerLimits

Read Write Property: Enables/Disables human finger limits during actor solve.

◆ IKManip

bool IKManip

Read Write Property: Access to the IK Manip mode. This property is shared for all actors.

◆ LeftAnkleOffsetR

FBAnimatableVector3d LeftAnkleOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftAnkleOffsetT

FBAnimatableVector3d LeftAnkleOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftAnklePosition

FBVector3d LeftAnklePosition

Read Write Property: Body part pivot of the actor.

◆ LeftCollarOffsetR

FBAnimatableVector3d LeftCollarOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftCollarOffsetT

FBAnimatableVector3d LeftCollarOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftCollarPosition

FBVector3d LeftCollarPosition

Read Write Property: Body part pivot of the actor.

◆ LeftElbowOffsetR

FBAnimatableVector3d LeftElbowOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftElbowOffsetT

FBAnimatableVector3d LeftElbowOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftElbowPosition

FBVector3d LeftElbowPosition

Read Write Property: Body part pivot of the actor.

◆ LeftFootOffsetR

FBAnimatableVector3d LeftFootOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftFootOffsetT

FBAnimatableVector3d LeftFootOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftFootPosition

FBVector3d LeftFootPosition

Read Write Property: Body part pivot of the actor.

◆ LeftHandIndexIndex

FBAnimatableDouble LeftHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexMiddle

FBAnimatableDouble LeftHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexPinky

FBAnimatableDouble LeftHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexRing

FBAnimatableDouble LeftHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleIndex

FBAnimatableDouble LeftHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleMiddle

FBAnimatableDouble LeftHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddlePinky

FBAnimatableDouble LeftHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleRing

FBAnimatableDouble LeftHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyIndex

FBAnimatableDouble LeftHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyMiddle

FBAnimatableDouble LeftHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyPinky

FBAnimatableDouble LeftHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyRing

FBAnimatableDouble LeftHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingIndex

FBAnimatableDouble LeftHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingMiddle

FBAnimatableDouble LeftHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingPinky

FBAnimatableDouble LeftHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingRing

FBAnimatableDouble LeftHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHipOffsetR

FBAnimatableVector3d LeftHipOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftHipOffsetT

FBAnimatableVector3d LeftHipOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftHipPosition

FBVector3d LeftHipPosition

Read Write Property: Body part pivot of the actor.

◆ LeftIndexAOffsetR

FBAnimatableVector3d LeftIndexAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftIndexAOffsetT

FBAnimatableVector3d LeftIndexAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftIndexBOffsetR

FBAnimatableVector3d LeftIndexBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftIndexBOffsetT

FBAnimatableVector3d LeftIndexBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftIndexCOffsetR

FBAnimatableVector3d LeftIndexCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftIndexCOffsetT

FBAnimatableVector3d LeftIndexCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftKneeOffsetR

FBAnimatableVector3d LeftKneeOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftKneeOffsetT

FBAnimatableVector3d LeftKneeOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftKneePosition

FBVector3d LeftKneePosition

Read Write Property: Body part pivot of the actor.

◆ LeftMiddleAOffsetR

FBAnimatableVector3d LeftMiddleAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftMiddleAOffsetT

FBAnimatableVector3d LeftMiddleAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftMiddleBOffsetR

FBAnimatableVector3d LeftMiddleBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftMiddleBOffsetT

FBAnimatableVector3d LeftMiddleBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftMiddleCOffsetR

FBAnimatableVector3d LeftMiddleCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftMiddleCOffsetT

FBAnimatableVector3d LeftMiddleCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftPinkyAOffsetR

FBAnimatableVector3d LeftPinkyAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftPinkyAOffsetT

FBAnimatableVector3d LeftPinkyAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftPinkyBOffsetR

FBAnimatableVector3d LeftPinkyBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftPinkyBOffsetT

FBAnimatableVector3d LeftPinkyBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftPinkyCOffsetR

FBAnimatableVector3d LeftPinkyCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftPinkyCOffsetT

FBAnimatableVector3d LeftPinkyCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftRingAOffsetR

FBAnimatableVector3d LeftRingAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftRingAOffsetT

FBAnimatableVector3d LeftRingAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftRingBOffsetR

FBAnimatableVector3d LeftRingBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftRingBOffsetT

FBAnimatableVector3d LeftRingBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftRingCOffsetR

FBAnimatableVector3d LeftRingCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftRingCOffsetT

FBAnimatableVector3d LeftRingCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftShoulderOffsetR

FBAnimatableVector3d LeftShoulderOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftShoulderOffsetT

FBAnimatableVector3d LeftShoulderOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftShoulderPosition

FBVector3d LeftShoulderPosition

Read Write Property: Body part pivot of the actor.

◆ LeftThumbAOffsetR

FBAnimatableVector3d LeftThumbAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftThumbAOffsetT

FBAnimatableVector3d LeftThumbAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftThumbBOffsetR

FBAnimatableVector3d LeftThumbBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftThumbBOffsetT

FBAnimatableVector3d LeftThumbBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftThumbCOffsetR

FBAnimatableVector3d LeftThumbCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftThumbCOffsetT

FBAnimatableVector3d LeftThumbCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftWristOffsetR

FBAnimatableVector3d LeftWristOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ LeftWristOffsetT

FBAnimatableVector3d LeftWristOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ LeftWristPosition

FBVector3d LeftWristPosition

Read Write Property: Body part pivot of the actor.

◆ ManipulateOffsets

bool ManipulateOffsets

Read Write Property: Flag to compute offsets while manipulating. If it is set to false, the manipulator is re-snapping as before. If it is set to true, offsets properties (T and R) are computed and candidated instead.

◆ MarkerSet

FBMarkerSet MarkerSet

Read Write Property: Associated marker set.

◆ MarkerSetSize

float MarkerSetSize

Read Write Property: The size of the markers of the actor.

◆ NeckOffsetR

FBAnimatableVector3d NeckOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ NeckOffsetT

FBAnimatableVector3d NeckOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ NeckPosition

FBVector3d NeckPosition

Read Write Property: Body part pivot of the actor.

◆ OutputMarkerSet

FBMarkerSet OutputMarkerSet

Read Write Property: Associated output marker set.

◆ PivotColor

FBColor PivotColor

Read Write Property: The color of the pivot points of the actor.

◆ PivotPointsVisibility

bool PivotPointsVisibility

Read Write Property: Show or Hide the Pivot Points.

◆ PivotSize

float PivotSize

Read Write Property: The size of the pivot points of the actor.

◆ RightAnkleOffsetR

FBAnimatableVector3d RightAnkleOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightAnkleOffsetT

FBAnimatableVector3d RightAnkleOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightAnklePosition

FBVector3d RightAnklePosition

Read Write Property: Body part pivot of the actor.

◆ RightCollarOffsetR

FBAnimatableVector3d RightCollarOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightCollarOffsetT

FBAnimatableVector3d RightCollarOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightCollarPosition

FBVector3d RightCollarPosition

Read Write Property: Body part pivot of the actor.

◆ RightElbowOffsetR

FBAnimatableVector3d RightElbowOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightElbowOffsetT

FBAnimatableVector3d RightElbowOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightElbowPosition

FBVector3d RightElbowPosition

Read Write Property: Body part pivot of the actor.

◆ RightFootOffsetR

FBAnimatableVector3d RightFootOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightFootOffsetT

FBAnimatableVector3d RightFootOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightFootPosition

FBVector3d RightFootPosition

Read Write Property: Body part pivot of the actor.

◆ RightHandIndexIndex

FBAnimatableDouble RightHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexMiddle

FBAnimatableDouble RightHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexPinky

FBAnimatableDouble RightHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexRing

FBAnimatableDouble RightHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleIndex

FBAnimatableDouble RightHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleMiddle

FBAnimatableDouble RightHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddlePinky

FBAnimatableDouble RightHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleRing

FBAnimatableDouble RightHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyIndex

FBAnimatableDouble RightHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyMiddle

FBAnimatableDouble RightHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyPinky

FBAnimatableDouble RightHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyRing

FBAnimatableDouble RightHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingIndex

FBAnimatableDouble RightHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingMiddle

FBAnimatableDouble RightHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingPinky

FBAnimatableDouble RightHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingRing

FBAnimatableDouble RightHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHipOffsetR

FBAnimatableVector3d RightHipOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightHipOffsetT

FBAnimatableVector3d RightHipOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightHipPosition

FBVector3d RightHipPosition

Read Write Property: Body part pivot of the actor.

◆ RightIndexAOffsetR

FBAnimatableVector3d RightIndexAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightIndexAOffsetT

FBAnimatableVector3d RightIndexAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightIndexBOffsetR

FBAnimatableVector3d RightIndexBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightIndexBOffsetT

FBAnimatableVector3d RightIndexBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightIndexCOffsetR

FBAnimatableVector3d RightIndexCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightIndexCOffsetT

FBAnimatableVector3d RightIndexCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightKneeOffsetR

FBAnimatableVector3d RightKneeOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightKneeOffsetT

FBAnimatableVector3d RightKneeOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightKneePosition

FBVector3d RightKneePosition

Read Write Property: Body part pivot of the actor.

◆ RightMiddleAOffsetR

FBAnimatableVector3d RightMiddleAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightMiddleAOffsetT

FBAnimatableVector3d RightMiddleAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightMiddleBOffsetR

FBAnimatableVector3d RightMiddleBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightMiddleBOffsetT

FBAnimatableVector3d RightMiddleBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightMiddleCOffsetR

FBAnimatableVector3d RightMiddleCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightMiddleCOffsetT

FBAnimatableVector3d RightMiddleCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightPinkyAOffsetR

FBAnimatableVector3d RightPinkyAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightPinkyAOffsetT

FBAnimatableVector3d RightPinkyAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightPinkyBOffsetR

FBAnimatableVector3d RightPinkyBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightPinkyBOffsetT

FBAnimatableVector3d RightPinkyBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightPinkyCOffsetR

FBAnimatableVector3d RightPinkyCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightPinkyCOffsetT

FBAnimatableVector3d RightPinkyCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightRingAOffsetR

FBAnimatableVector3d RightRingAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightRingAOffsetT

FBAnimatableVector3d RightRingAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightRingBOffsetR

FBAnimatableVector3d RightRingBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightRingBOffsetT

FBAnimatableVector3d RightRingBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightRingCOffsetR

FBAnimatableVector3d RightRingCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightRingCOffsetT

FBAnimatableVector3d RightRingCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightShoulderOffsetR

FBAnimatableVector3d RightShoulderOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightShoulderOffsetT

FBAnimatableVector3d RightShoulderOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightShoulderPosition

FBVector3d RightShoulderPosition

Read Write Property: Body part pivot of the actor.

◆ RightThumbAOffsetR

FBAnimatableVector3d RightThumbAOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightThumbAOffsetT

FBAnimatableVector3d RightThumbAOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightThumbBOffsetR

FBAnimatableVector3d RightThumbBOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightThumbBOffsetT

FBAnimatableVector3d RightThumbBOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightThumbCOffsetR

FBAnimatableVector3d RightThumbCOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightThumbCOffsetT

FBAnimatableVector3d RightThumbCOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightWristOffsetR

FBAnimatableVector3d RightWristOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ RightWristOffsetT

FBAnimatableVector3d RightWristOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ RightWristPosition

FBVector3d RightWristPosition

Read Write Property: Body part pivot of the actor.

◆ SkeletonColor

FBColor SkeletonColor

Read Write Property: The color of the skeleton of the actor.

◆ SkeletonVisibility

bool SkeletonVisibility

Read Write Property: Show or Hide the Skeleton.

◆ SymmetryEditRotation

bool SymmetryEditRotation

Read Write Property: Symmetry Edit (Rotation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

◆ SymmetryEditScaling

bool SymmetryEditScaling

Read Write Property: Symmetry Edit (Scaling) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

◆ SymmetryEditTranslation

bool SymmetryEditTranslation

Read Write Property: Symmetry Edit (Translation) mode state. Only effective when IKManip property is set to false. This property is shared for all actors.

◆ Visibility

bool Visibility

Read Write Property: Show or Hide the Actor Body.

◆ WaistOffsetR

FBAnimatableVector3d WaistOffsetR

Read Write Property: Local rotation offset that is applied after the actor solve

◆ WaistOffsetT

FBAnimatableVector3d WaistOffsetT

Read Write Property: Local translation offset that is applied after the actor solve

◆ WaistPosition

FBVector3d WaistPosition

Read Write Property: Body part pivot of the actor.

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FBActor()

Member Function Documentation

◆ FBDelete()

◆ GetCurrentSkeletonState()

◆ GetDefaultSkeletonState()

◆ GetDefinitionRotationVector()

◆ GetDefinitionScaleVector()

◆ GetDefinitionTranslationVector()

◆ SetActorTranslation()

◆ SetDefinitionRotationVector()

◆ SetDefinitionScaleVector()

◆ SetDefinitionTranslationVector()

◆ Snap()

◆ UpdateValues()

Member Data Documentation

◆ BodyColor

◆ ChestOffsetR

◆ ChestOffsetT

◆ ChestPosition

◆ FKFingerMultiplier

◆ FKFingerTipMultiplier

◆ FKThumbTipMultiplier

◆ HeadOffsetR

◆ HeadOffsetT

◆ HeadPosition

◆ HipsOffsetR

◆ HipsOffsetT

◆ HipsPosition

◆ HumanFingerLimits

◆ IKManip

◆ LeftAnkleOffsetR

◆ LeftAnkleOffsetT

◆ LeftAnklePosition

◆ LeftCollarOffsetR

◆ LeftCollarOffsetT

◆ LeftCollarPosition

◆ LeftElbowOffsetR

◆ LeftElbowOffsetT

◆ LeftElbowPosition

◆ LeftFootOffsetR

◆ LeftFootOffsetT

◆ LeftFootPosition

◆ LeftHandIndexIndex

◆ LeftHandIndexMiddle

◆ LeftHandIndexPinky

◆ LeftHandIndexRing

◆ LeftHandMiddleIndex

◆ LeftHandMiddleMiddle

◆ LeftHandMiddlePinky

◆ LeftHandMiddleRing

◆ LeftHandPinkyIndex

◆ LeftHandPinkyMiddle

◆ LeftHandPinkyPinky

◆ LeftHandPinkyRing

◆ LeftHandRingIndex

◆ LeftHandRingMiddle

◆ LeftHandRingPinky

◆ LeftHandRingRing

◆ LeftHipOffsetR

◆ LeftHipOffsetT

◆ LeftHipPosition

◆ LeftIndexAOffsetR

◆ LeftIndexAOffsetT

◆ LeftIndexBOffsetR

◆ LeftIndexBOffsetT

◆ LeftIndexCOffsetR

◆ LeftIndexCOffsetT

◆ LeftKneeOffsetR

◆ LeftKneeOffsetT

◆ LeftKneePosition

◆ LeftMiddleAOffsetR

◆ LeftMiddleAOffsetT

◆ LeftMiddleBOffsetR

◆ LeftMiddleBOffsetT

◆ LeftMiddleCOffsetR

◆ LeftMiddleCOffsetT
