FBKeyingGroup Class Reference

KeyingGroup class. More...

#include <pyfbsdk_generated.h>

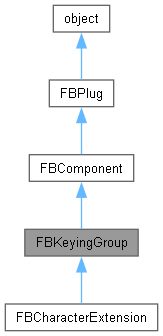

Inheritance diagram for FBKeyingGroup:

Public Member Functions

 FBKeyingGroup (str pName, FBKeyingGroupType pType)
 Constructor.

 AddObjectDependency (FBComponent pObj)
 AddObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

 AddProperty (FBProperty pProp)
 Add property to be keyed when current keying group is active.

 ClearAllItems ()
 ClearAllItems clear object dependency, properties and child keying group.

 DeselectAllAnimatableProperties ()
 FBDeselectAllAnimatableProperties, deselect all animatable properties in the scene.

 FBDelete ()
 Virtual FBDelete function.

int FindPropertyIndex (FBProperty pProp)
 FindPropertyIndex.

FBProperty GetCumulativeProperty (int pIndex, bool pStopAtVisible=False)
 GetCumulativeProperty Same as GetSubKeyingGroup but recursive in child keying group.

int GetCumulativePropertyCount (bool pStopAtVisible=False)
 GetCumulativePropertyCount Same as GetSubKeyingGroupCount but recursive in child keying group.

FBKeyingGroup GetParentKeyingGroup (int pIndex)
 GetParentKeyingGroup.

int GetParentKeyingGroupCount ()
 GetParentKeyingGroupCount.

FBProperty GetProperty (int pIndex)
 GetProperty from the keyinggroup list.

int GetPropertyCount ()
 GetPropertyCount.

FBKeyingGroup GetSubKeyingGroup (int pIndex)
 GetSubKeyingGroup.

int GetSubKeyingGroupCount ()
 GetSubKeyingGroupCount.

FBComponent GetSubObject (int pIndex)
 GetSubObject.

int GetSubObjectCount ()
 GetSubObjectCount.

bool IsObjectDependency (FBComponent pObj)
 IsObjectDependency determine if the pObj is a dependency.

bool IsObjectDependencySelected ()
 IsObjectDependencySelected.

 RemoveAllObjectDependency ()
 IsObjectDependencySelected empty the content list.

 RemoveAllProperties ()
 IsObjectDependencySelected empty the property list.

 RemoveAllSubKeyingGroup ()
 RemoveAllSubKeyingGroup empty the child keying group.

 RemoveObjectDependency (FBComponent pObj)
 RemoveObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

 RemoveProperty (FBProperty pProp)
 RemoveProperty from the keyinggroup list.

 SetActive (bool pActive)
 SetActive, activate the keying group, replacing the other keying group.

 SetActiveAppend (bool pActive)
 SetActiveAppend, activate and append the keying group to the other keying groups.

 SetEnabled (bool pEnable)
 SetEnabled, makes the keying group available in keying group list of the key control UI.

 SetObjectType (FBComponent pObject)
 Set the object type filter for and object type keying group.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Additional Inherited Members

- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

KeyingGroup class.


This class is an interface to manipulate which properties will be keyed when active. A derived class could control when the keying group should activate and what content it should have. For example, a derived class could activate based one that is selected in the scene.To create a custom keying group, use the appropriate FBKeyingGroupType flag. Then, if it is a local keying group, call AddObjectDependency() to add an object to the keying group. You can then add properties belonging to the new object with AddProperty().If you are creating an object type keying group, call SetObjectType() to specify what kind of object will be keyed by this keying group. Then, add a property from an object, the name of the property will be used by the keying group the find corresponding properties in selected object.If you create a global keying group, simply properties from an object with AddProperty(). The name of the property will be used by the keying group to find corresponding properties in the selected object.

Constructor & Destructor Documentation

◆ FBKeyingGroup()

FBKeyingGroup ( str  pName,
FBKeyingGroupType  pType
)

Constructor.

Parameters
pNameGroup name.
pTypeKeying group type.

Member Function Documentation

◆ AddObjectDependency()

AddObjectDependency ( FBComponent  pObj)

AddObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

Parameters
pObja Dependency of the keying group.

◆ AddProperty()

AddProperty ( FBProperty  pProp)

Add property to be keyed when current keying group is active.

Parameters
pPropProperty to be added.

◆ ClearAllItems()

ClearAllItems ( )

ClearAllItems clear object dependency, properties and child keying group.

◆ DeselectAllAnimatableProperties()

DeselectAllAnimatableProperties ( )

FBDeselectAllAnimatableProperties, deselect all animatable properties in the scene.

◆ FBDelete()

FBDelete ( )

Virtual FBDelete function.

See sample: DeleteHierarchy.py.

◆ FindPropertyIndex()

int FindPropertyIndex ( FBProperty  pProp)

FindPropertyIndex.

Parameters
pPropmust be in the list (return -1 if not).
Returns
the index of pProp in the keyinggroup property list.

◆ GetCumulativeProperty()

FBProperty GetCumulativeProperty ( int  pIndex,
bool  pStopAtVisible = False
)

GetCumulativeProperty Same as GetSubKeyingGroup but recursive in child keying group.

Parameters
pIndexindex in the content Object Dependency list
pStopAtVisibleconsider all keying group and stop to the first visible keying group.
Returns
he number of ObjectDependency of the keying group.

◆ GetCumulativePropertyCount()

int GetCumulativePropertyCount ( bool  pStopAtVisible = False)

GetCumulativePropertyCount Same as GetSubKeyingGroupCount but recursive in child keying group.

Parameters
pStopAtVisibleconsider all keying group and stop to the first visible keying group.
Returns
he number of ObjectDependency of the keying group.

◆ GetParentKeyingGroup()

FBKeyingGroup GetParentKeyingGroup ( int  pIndex)

GetParentKeyingGroup.

Parameters
pIndexis the index of the parent list of the current keying group.
Returns
the parent keying group.

◆ GetParentKeyingGroupCount()

int GetParentKeyingGroupCount ( )

GetParentKeyingGroupCount.

Returns
the number of parent.

◆ GetProperty()

FBProperty GetProperty ( int  pIndex)

GetProperty from the keyinggroup list.

Parameters
pIndexindex of the desired property.
Returns
property coresponding to pIndex.

◆ GetPropertyCount()

int GetPropertyCount ( )

GetPropertyCount.

Returns
the number of properties in the keying group.

◆ GetSubKeyingGroup()

FBKeyingGroup GetSubKeyingGroup ( int  pIndex)

GetSubKeyingGroup.

Parameters
pIndexindex of the desired keying group child.
Returns
the the child at the index.

◆ GetSubKeyingGroupCount()

int GetSubKeyingGroupCount ( )

GetSubKeyingGroupCount.

Returns
the number of child keying group.

◆ GetSubObject()

FBComponent GetSubObject ( int  pIndex)

GetSubObject.

Parameters
pIndexindex in the content Object Dependency list
Returns
the desired object at pIndex.

◆ GetSubObjectCount()

int GetSubObjectCount ( )

GetSubObjectCount.

Returns
the number of ObjectDependency of the keying group.

◆ IsObjectDependency()

bool IsObjectDependency ( FBComponent  pObj)

IsObjectDependency determine if the pObj is a dependency.

Parameters
pObjan object to test the Dependency.
Returns
true if it depend.

◆ IsObjectDependencySelected()

bool IsObjectDependencySelected ( )

IsObjectDependencySelected.

Returns
return true as soon as a Property Owner or another Object Dependency is selected.

◆ RemoveAllObjectDependency()

RemoveAllObjectDependency ( )

IsObjectDependencySelected empty the content list.

◆ RemoveAllProperties()

RemoveAllProperties ( )

IsObjectDependencySelected empty the property list.

◆ RemoveAllSubKeyingGroup()

RemoveAllSubKeyingGroup ( )

RemoveAllSubKeyingGroup empty the child keying group.

◆ RemoveObjectDependency()

RemoveObjectDependency ( FBComponent  pObj)

RemoveObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).

Parameters
pObja Dependency of the keying group.

◆ RemoveProperty()

RemoveProperty ( FBProperty  pProp)

RemoveProperty from the keyinggroup list.

Parameters
pPropProperty to be removed.

◆ SetActive()

SetActive ( bool  pActive)

SetActive, activate the keying group, replacing the other keying group.

◆ SetActiveAppend()

SetActiveAppend ( bool  pActive)

SetActiveAppend, activate and append the keying group to the other keying groups.

◆ SetEnabled()

SetEnabled ( bool  pEnable)

SetEnabled, makes the keying group available in keying group list of the key control UI.

◆ SetObjectType()

SetObjectType ( FBComponent  pObject)

Set the object type filter for and object type keying group.

Parameters
pObjectObject that will be used to set the keying group object type. Use NULL to remove the filter.
