FBVideoClipImage Class Reference

Video clip image media class. More...

#include <pyfbsdk_generated.h>

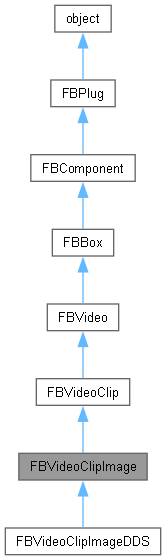

Inheritance diagram for FBVideoClipImage:

Public Member Functions

 FBVideoClipImage (str pName)
 Constructor.

- Public Member Functions inherited from FBVideoClip
 FBVideoClip (str pName)
 Constructor.

 DrawImage (int pX=0, int pY=0, int pW=-1, int pH=-1, int pFrame=-1)
 Draw a frame of the image to the current view.

 FBDelete ()
 Open Reality deletion function.

bool GetEmbeddedTimecode (int pFrame, FBTimeCode pTimeCode)
 Get the embedded timecode associated to a video clip frame.

int GetTextureID ()
 Get the texture ID.

bool IsValid ()
 Verifies the validity of the FBVideo object.

- Public Member Functions inherited from FBVideo
 FBVideo (str pName)
 Constructor.

- Public Member Functions inherited from FBBox
 FBBox (str pName)
 Constructor.

bool AnimationNodeDestroy (FBAnimationNode pAnimationNode)
 Destroy an animation node.

FBAnimationNode AnimationNodeInGet ()
 Get the (IN/OUT) animation node for this box.

bool AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
 Is the animation node user data?

FBAnimationNode AnimationNodeOutGet ()

str FbxGetObjectSubType ()
 Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str FbxGetObjectType ()
 Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode GetInConnector (int pIndex)
 Get the animation node input associated with the given index.

int GetInConnectorCount ()
 Get the number of animation node inputs for this box.

FBAnimationNode GetOutConnector (int pIndex)
 Get the animation node output associated with the given index.

int GetOutConnectorCount ()
 Get the number of animation node outputs for this box.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

bool ImageSequence
 Read Write Property: Clip is an image sequence?


FBVideoResolution MaxMipMapResolution
 Read Write Property: Maximum MipMap resolution will be loaded into GPU.


bool UseSystemFrameRate
 Read Write Property: Clip is using system frame rate?


- Public Attributes inherited from FBVideoClip
int CurrentFrame
 Read Write Property: Current frame.


FBTime CurrentFrameTime
 Read Write Property: Current time in clip.


FBTime CurrentFrameTimeCode
 Read Only Property: Embedded timecode from current frame in clip. Use the method GetEmbeddedTimecode to get the timecode of a different frame than the current frame.


FBTime CustomEmbeddedStartTimecode
 Read Write Property:The custom timecode of the first frame of the video. To be effective, the ShowEmbeddedTimecode and UseCustomEmbeddedStartTimecode properties must be active.


str Filename
 Read Write Property: Filename of media.


FBVideoFormat Format
 Read Only Property: Video format.


float FrameRate
 Read Write Property: Frame rate.


FBTime FrameTime
 Read Only Property: Inverse of FPS, time per frame


bool FreeRunning
 Read Write Property: Is free Running on?


int Height
 Read Only Property: Height of image.


FBVideoInterlaceMode InterlaceMode
 Read Write Property: Interlace mode.


int LastFrame
 Read Only Property: Last frame in clip.


FBTime LastFrameTime
 Read Only Property: Time of last frame


bool Loop
 Read Write Property: Loop video clip?


float PlaySpeed
 Read Write Property: Playback speed.


int PowerOfTwoHeight
 Read Only Property: Closest power of two value superior to height of image.


int PowerOfTwoWidth
 Read Only Property: Closest power of two value superior to width of image.


FBVideoProxyMode ProxyMode
 Read Write Property: Proxy mode.


str RelativePath
 Read Only Property: Relative path of media.


bool ShowEmbeddedTimecode
 Read Write Property: True if the video clip is showing its embedded timecode (real, if available, or custom), false if showing a timecode starting at 00:00:00:00 (00).


int StartFrame
 Read Write Property: Frame to begin video playback from.


int StopFrame
 Read Write Property: Frame to end video playback at.


FBVideoStorageMode StorageMode
 Read Write Property: Storage mode.


FBTime TimeOffset
 Read Write Property: Temporal offset for beginning of video.


bool UseCustomEmbeddedStartTimecode
 Read Write Property: True if the video clip is using the custom embedded start timecode value, false if it is using the real embedded timecode, if available.


int Width
 Read Only Property: Width of image.


- Public Attributes inherited from FBVideo
bool KeepOnGPU
 Read Write Property: Don't auto flush from GPU if true. session runtime flag, won't be saved.


- Public Attributes inherited from FBBox
bool Animatable
 Read Write Property: Is the box animatable.


bool Live
 Read Write Property: Is live?


bool RecordMode
 Read Write Property: Is recording?


str UniqueName
 internal Unique name.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Video clip image media class.

Used for a variety of image types. For DDS images, use the FBVideoClipImageDDS instead.

Constructor & Destructor Documentation

◆ FBVideoClipImage()

FBVideoClipImage ( str  pName)

Constructor.

Parameters
pNameName of image file.

Member Data Documentation

◆ ImageSequence

bool ImageSequence

Read Write Property: Clip is an image sequence?

◆ MaxMipMapResolution

FBVideoResolution MaxMipMapResolution

Read Write Property: Maximum MipMap resolution will be loaded into GPU.

◆ UseSystemFrameRate

bool UseSystemFrameRate

Read Write Property: Clip is using system frame rate?
