FBVisualComponent Class Reference

Visual Component base class. More...

#include <pyfbsdk_generated.h>

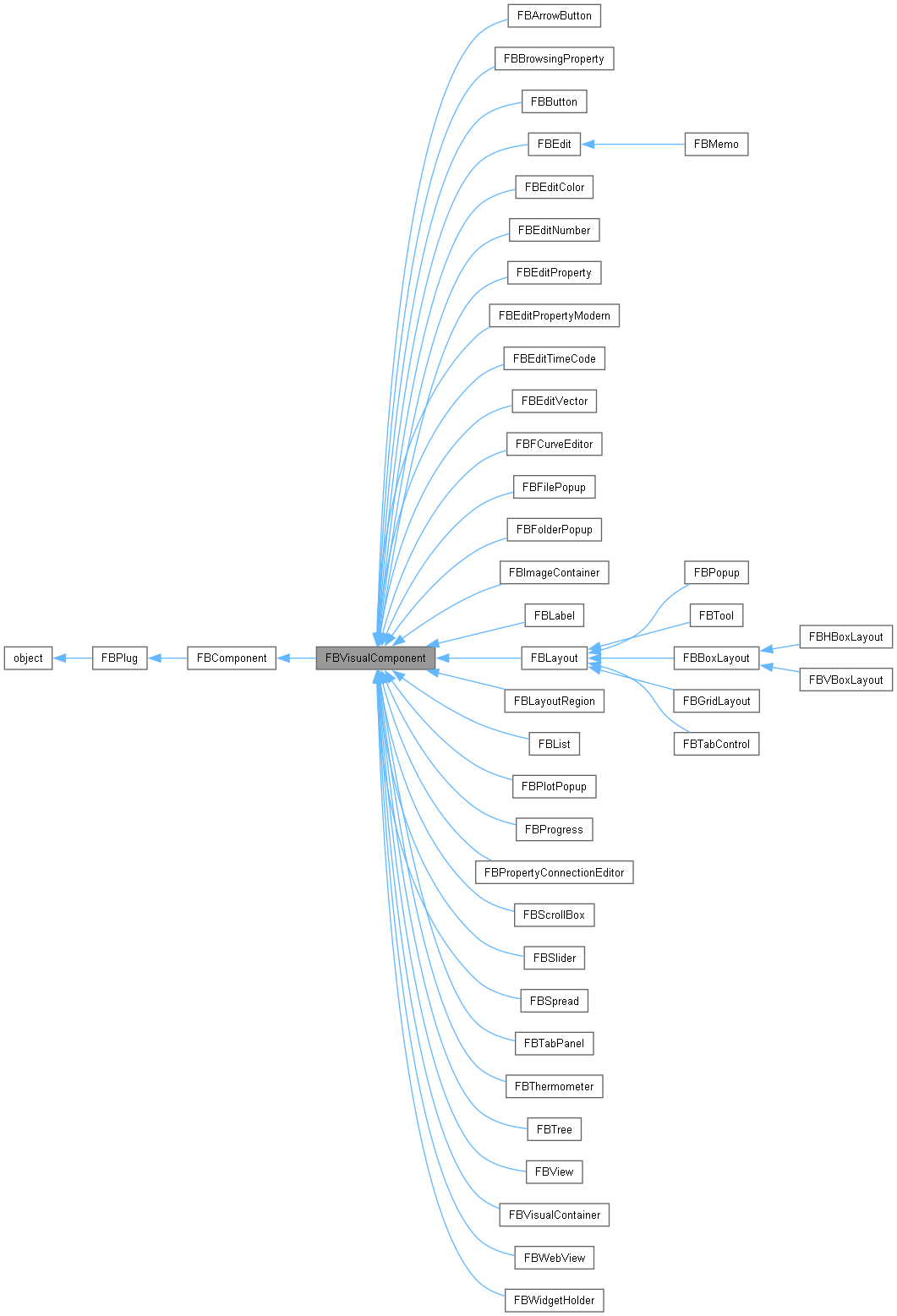

Inheritance diagram for FBVisualComponent:

Public Member Functions

 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Visual Component base class.


All of the user interface elements available in the SDK derive from this class.

Constructor & Destructor Documentation

◆ FBVisualComponent()

Constructor.

Member Function Documentation

◆ AddChild()

bool AddChild ( FBVisualComponent  pChild,
int  pId = 0
)

Add a child component.

Parameters
pChildVisual component to add as a child.
pIdUser reference number to associate with pChild(default=0).
Returns
Operation was successful (true or false).

◆ GetChild()

FBVisualComponent GetChild ( int  pId = 0)

Get a child component.

Parameters
pIdUser reference number to look for child with(default=0).
Returns
Handle to child (NULL if not found).

◆ GetQWidgetAddress()

QWidget GetQWidgetAddress ( )

Get internal QWidget.

Returns
Handle to internal QWidget object.

◆ IsView()

bool IsView ( )

Is component a view?

Returns
true if component is a view.

◆ Refresh()

Refresh ( bool  pNow = False)

Refresh component.

Parameters
pNowRefresh immediately if true (default = false).

◆ ViewExpose()

ViewExpose ( )

Exposed view callback function.

◆ ViewInput()

ViewInput ( int  pMouseX,
int  pMouseY,
FBInputType  pAction,
int  pButtonKey,
int  pModifier
)

Input callback function.

Parameters
pMouseXMouse X position.
pMouseYMouse Y position.
pActionMouse action.
pButtonKeyKeyboard input.
pModifierKeyboard input modifier.

Member Data Documentation

◆ Caption

str Caption

Property: Widget caption.

◆ Enabled

bool Enabled

Read Write Property: Is visual enabled?

◆ Height

int Height

Read Write Property: Height.

◆ Hint

str Hint

Read Write Property: Hint to show.

◆ Left

int Left

Read Write Property: Left coordinate.

◆ ReadOnly

bool ReadOnly

Read Write Property: Is visual component read only?

◆ Top

int Top

Read Write Property: Top coordinate.

◆ Visible

bool Visible

Read Write Property: Is visual component visible?

◆ Width

int Width

Read Write Property: Width.
