Alerts instances are the actual occurrences of alerts and as such, they are a powerful tool way of informing the user when a significant event has occurred during a simulation. Alert instances are represented in various areas of ICMLive Operator Client:
The Alerts Window and the Verification Alerts Window are visible within the same context as a simulation result (i.e. they are specific to one simulation).
The grid has the basic functionality expected of grids, such as sorting.
To see alerts as a theme on the GeoPlan, drag and drop the alert instance list object onto the simulation opened in the GeoPlan.
When an Alert Instance List is generated in InfoWorks ICM, at least two new results fields to the corresponding simulation:
For each network object, the value of these new fields is determined by the presence of any alert instances associated with that object. In other words, Sim.Alert Count is the number of alerts associated with that object (at a given time) and Sim.Alert Priority is the priority of the highest priority alert associated with that object (at a given time).
Similarly to simulations, polygon objects (areas of interest) have another two additional results fields added in InfoWorks ICM:
For a polygon, these values are derived from any alert instances associated with objects geographically contained in the polygon. These fields can be themed on like any other results fields. AOI Alert Count and AOI Alert Priority results are usually themed using a GeoExplorer theme. A Geoexplorer theme is needed in the Manifest Deployment object in InfoWorks ICM.
Objects are themed in descending priority of sub-theme, so users would typically assign the Alert theme at the top to override any underlying more standard theme definitions. Please refer to the Theme Precedence topic note for more information.

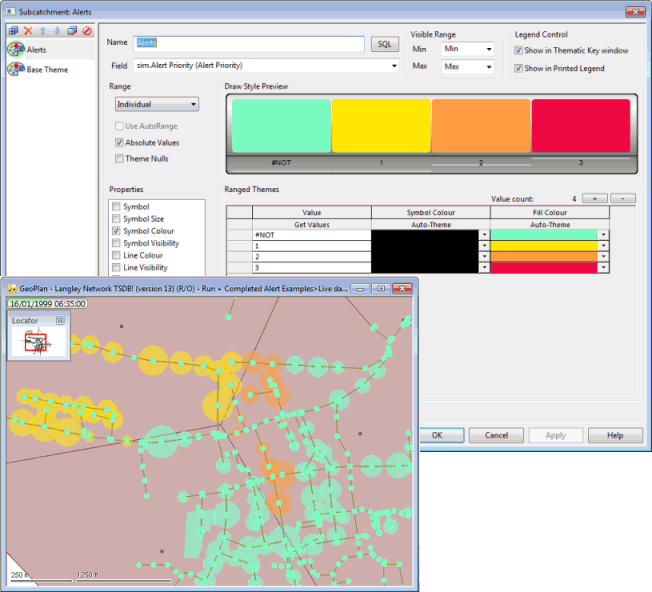

Example of GeoPlan alert theme on a selection of subcatchments for which the rainfall exceeds a given threshold, and corresponding theme attributes
In ICMLive Operator Client, the default theme for the Network Page is defined in the Manifest, and other themes are available in the theme list.
Results graphs can be implemented via
(Graph) ointhe
Results toolbar. See the
Generating Graph Data for a Network Object section of the
Viewing Simulation Results topic.

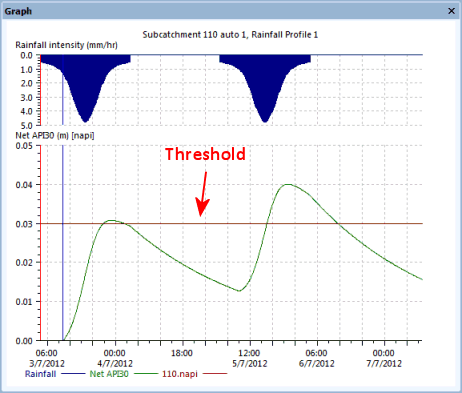

When a results graph is displayed for an object and results field combination that contains an alert, most data relevant to that alert definition is displayed on the graph. In particular, the constant threshold when Target type B is <FIXED VALUE>, or the result of Target B when Target B is pointing at another network object.
When an alert is defined that includes a Comparison operator and Target type B set to <FIXED VALUE>, you can choose a Graph trace colour that will be used for the threshold colour in the graph.

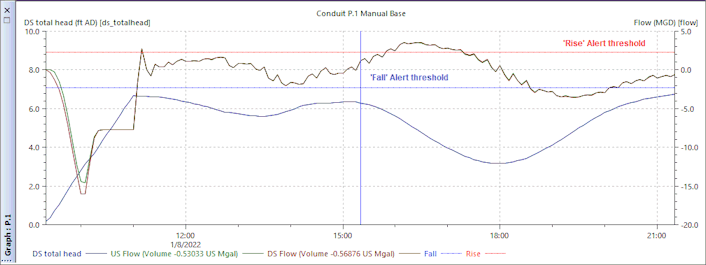

Results graph for a conduit showing Flow, and US and DS total heads attributes, and thresholds for 'Fall' and 'Rise' Alert definitions
See the InfoWorks ICM help for more details on alert definition parameters.
The Summary Window summarises the alert situation for the selected manifest deployment using the results from the latest automatic run for each network/manifest combination. For each Area of Interest polygon, the number of alerts of each priority across the duration of the simulation is counted and summarised in the Executive summary column.
