IPFOperatorPhysXWorld Class Reference

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/ParticleFlow/IPFOperatorPhysXWorld.h>

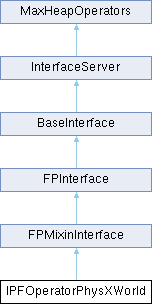

Inheritance diagram for IPFOperatorPhysXWorld:

Public Types
enum	{   kAddCollisionGroupExclusionPair , kRemoveCollisionGroupExclusionPair , kHasCollisionGroupExclusionPair , kBakeSimulation ,   kRemoveBakedSimulation , kPlayback , kCreateNewDriver }
Public Types inherited from BaseInterface
enum	LifetimeType { noRelease , immediateRelease , wantsRelease , serverControlled }

Public Member Functions
	FN_2 (kAddCollisionGroupExclusionPair, TYPE_bool, AddCollisionGroupExclusionPair, TYPE_INT, TYPE_INT)
	FN_2 (kRemoveCollisionGroupExclusionPair, TYPE_bool, RemoveCollisionGroupExclusionPair, TYPE_INT, TYPE_INT)
	FN_2 (kHasCollisionGroupExclusionPair, TYPE_bool, HasCollisionGroupExclusionPair, TYPE_INT, TYPE_INT)
	FN_0 (kBakeSimulation, TYPE_bool, BakeSimulation)
	VFN_0 (kRemoveBakedSimulation, RemoveBakedSimulation)
	VFN_0 (kPlayback, Playback)
	VFN_0 (kCreateNewDriver, CreateNewDriver)
virtual bool	AddCollisionGroupExclusionPair (int group0, int group1)=0
virtual bool	RemoveCollisionGroupExclusionPair (int group0, int group1)=0
virtual bool	HasCollisionGroupExclusionPair (int group0, int group1) const =0
virtual bool	BakeSimulation (void)=0
virtual void	RemoveBakedSimulation (void)=0
virtual void	Playback (void)
virtual bool	SupressExpressSave (void) const
virtual void	CreateNewDriver (void)
virtual IPFSystemWorld *	GetSystemWorld (IObject *pCont) const =0
FPInterfaceDesc *	GetDesc ()
Public Member Functions inherited from FPMixinInterface
	FPMixinInterface ()
virtual LifetimeType	LifetimeControl ()
virtual CoreExport bool	RegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual void	UnRegisterNotifyCallback (InterfaceNotifyCallback *incb)
CoreExport	~FPMixinInterface ()
virtual BaseInterface *	GetInterface (Interface_ID id)
virtual FPInterfaceDesc *	GetDescByID (Interface_ID id)
virtual Interface_ID	GetID ()
Public Member Functions inherited from FPInterface
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t=0, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPParams *params)
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t, FPValue &result, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPValue &result, FPParams *params=NULL)
virtual CoreExport FunctionID	FindFn (const MCHAR *name)
virtual CoreExport BOOL	IsEnabled (FunctionID actionID)
virtual CoreExport BOOL	IsChecked (FunctionID actionID)
virtual CoreExport BOOL	IsVisible (FunctionID actionID)
virtual CoreExport FunctionID	GetIsEnabled (FunctionID actionID)
virtual CoreExport FunctionID	GetIsChecked (FunctionID actionID)
virtual CoreExport FunctionID	GetIsVisible (FunctionID actionID)
virtual ActionTable *	GetActionTable ()
virtual void	EnableActions (BOOL onOff)
Public Member Functions inherited from BaseInterface
virtual UtilExport	~BaseInterface ()
	Destructor.
virtual BaseInterface *	AcquireInterface ()
virtual void	ReleaseInterface ()
virtual void	DeleteInterface ()
virtual BaseInterface *	CloneInterface (void *remapDir=nullptr)
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()

Additional Inherited Members
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void *ptr, void *placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.
Static Public Attributes inherited from FPInterface
static CoreExport FPInterfaceDesc	nullInterface
Protected Member Functions inherited from FPMixinInterface
	FPMixinInterface (const FPMixinInterface &rhs)
FPMixinInterface &	operator= (const FPMixinInterface &rhs)
Protected Member Functions inherited from FPInterface
virtual FPStatus	_dispatch_fn (FunctionID fid, TimeValue t, FPValue &result, FPParams *p)
Protected Attributes inherited from FPMixinInterface
Tab< InterfaceNotifyCallback * > *	interfaceNotifyCBs

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kAddCollisionGroupExclusionPair
kRemoveCollisionGroupExclusionPair
kHasCollisionGroupExclusionPair
kBakeSimulation
kRemoveBakedSimulation
kPlayback
kCreateNewDriver

         {
        kAddCollisionGroupExclusionPair,
        kRemoveCollisionGroupExclusionPair,
        kHasCollisionGroupExclusionPair,
        kBakeSimulation,
        kRemoveBakedSimulation,
        kPlayback,
        kCreateNewDriver
    };

Member Function Documentation

FN_2() [1/3]

FN_2	(	kAddCollisionGroupExclusionPair	,
		TYPE_bool	,
		AddCollisionGroupExclusionPair	,
		TYPE_INT	,
		TYPE_INT	)

FN_2() [2/3]

FN_2	(	kRemoveCollisionGroupExclusionPair	,
		TYPE_bool	,
		RemoveCollisionGroupExclusionPair	,
		TYPE_INT	,
		TYPE_INT	)

FN_2() [3/3]

FN_2	(	kHasCollisionGroupExclusionPair	,
		TYPE_bool	,
		HasCollisionGroupExclusionPair	,
		TYPE_INT	,
		TYPE_INT	)

FN_0()

FN_0	(	kBakeSimulation	,
		TYPE_bool	,
		BakeSimulation	)

VFN_0() [1/3]

VFN_0	(	kRemoveBakedSimulation	,
		RemoveBakedSimulation	)

VFN_0() [2/3]

VFN_0	(	kPlayback	,
		Playback	)

VFN_0() [3/3]

VFN_0	(	kCreateNewDriver	,
		CreateNewDriver	)

AddCollisionGroupExclusionPair()

virtual bool AddCollisionGroupExclusionPair ( int group0, int group1 )

pure virtual

RemoveCollisionGroupExclusionPair()

virtual bool RemoveCollisionGroupExclusionPair ( int group0, int group1 )

pure virtual

HasCollisionGroupExclusionPair()

virtual bool HasCollisionGroupExclusionPair ( int group0, int group1 ) const

pure virtual

BakeSimulation()

virtual bool BakeSimulation ( void )

pure virtual

RemoveBakedSimulation()

virtual void RemoveBakedSimulation ( void )

pure virtual

Playback()

virtual void Playback ( void )

inlinevirtual

{}

SupressExpressSave()

virtual bool SupressExpressSave ( void ) const

inlinevirtual

{ return false; }

CreateNewDriver()

virtual void CreateNewDriver ( void )

inlinevirtual

{}

GetSystemWorld()

virtual IPFSystemWorld * GetSystemWorld ( IObject * pCont ) const

pure virtual

GetDesc()

FPInterfaceDesc * GetDesc ( )

inlinevirtual

Remarks

Returns a pointer to the class which contains the interface metadata.

Implements FPInterface.

{ return GetDescByID(PFOPERATORPHYSXWORLD_INTERFACE); }
