ISceneStateManager Class Reference

This class is the public interface to the scene state feature. More...

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/ISceneStateManager.h>

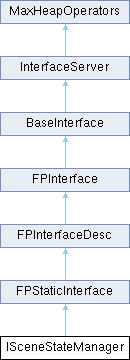

Inheritance diagram for ISceneStateManager:

Public Types
enum	SceneStatePart {   eIncludeLightProperties = 0 , eIncludeLightTM = 1 , eIncludeObjectProperties = 2 , eIncludeCameraTM = 3 ,   eIncludeCameraProperties = 4 , eIncludeLayerProperties = 5 , eIncludeLayerAssignment = 6 , eIncludeMaterials = 7 ,   eIncludeEnvironment = 8 , eIncludeAnimationLayerProperties =9 }
	Definition of scene state parts. More...
enum	{   E_GET_COUNT , E_GET , E_FIND , E_CAPTURE ,   E_RESTORE , E_DELETE , E_RENAME , E_GET_PARTS ,   E_GET_NUM_PARTS , E_PART_TO_INDEX , E_INDEX_TO_PART , E_CAPTURE_ALL_PARTS ,   E_RESTORE_ALL_PARTS }
Public Types inherited from BaseInterface
enum	LifetimeType { noRelease , immediateRelease , wantsRelease , serverControlled }

Public Member Functions
virtual int	GetSceneStateCount ()=0
	Get the number of scene states stored in the scene.
virtual const MCHAR *	GetSceneState (int index)=0
	Get the name of the scene state at this index.
virtual int	FindSceneState (const MCHAR *name)=0
	Find the index of the scene state with this name.
virtual bool	CaptureState (const MCHAR *name)=0
	Capture, or save, a scene state. All scene state parts will be saved.
virtual bool	CaptureState (const MCHAR *name, BitArray parts)=0
	Capture, or save, a scene state with a specific set of parts.
virtual bool	RestoreState (const MCHAR *name)=0
	Restore a scene state. All scene state parts included in the scene state will be restored.
virtual bool	RestoreState (const MCHAR *name, BitArray parts)=0
	Restore a scene state.
virtual bool	DeleteState (const MCHAR *name)=0
	Delete the scene state with this name.
virtual bool	RenameState (const MCHAR *oldName, const MCHAR *newName)=0
	Rename a scene state.
virtual BitArray	GetSceneStateParts (const MCHAR *name)=0
	Get the parts that are stored in a specific scene state.
virtual void	DoManageDialog ()=0
	Open the Scene State manager dialog.
virtual void	EnumAuxFiles (AssetEnumCallback &assetEnum, DWORD flags=FILE_ENUM_ALL)=0
	Enumerate external files used by objects stored in the scene states.
Public Member Functions inherited from FPInterfaceDesc
CoreExport	FPInterfaceDesc ()
CoreExport	FPInterfaceDesc (Interface_ID id, const MCHAR *int_name, StringResID descr, ClassDesc *cd, ULONG flag,...)
CoreExport	~FPInterfaceDesc ()
virtual void	Init ()
LifetimeType	LifetimeControl ()
virtual BaseInterface *	GetInterface (Interface_ID id)
CoreExport void	LoadDescriptor (Interface_ID id, const MCHAR *int_name, StringResID descr, ClassDesc *pCD, ULONG flag,...)
CoreExport void	AppendFunction (int id,...)
	Add a new function to this interface descriptor.
CoreExport void	AppendProperty (int id,...)
	Add a new property to this interface descriptor.
CoreExport void	AppendEnum (int id,...)
	Add a new enum to this interface descriptor.
CoreExport void	SetClassDesc (ClassDesc *i_cd)
CoreExport va_list	check_fn (va_list ap, int id)
CoreExport va_list	scan_fn (va_list ap, int id, int index)
CoreExport va_list	check_prop (va_list ap, int id)
CoreExport va_list	scan_prop (va_list ap, int id, int index)
CoreExport va_list	check_enum (va_list ap, EnumID id)
CoreExport va_list	scan_enum (va_list ap, EnumID id, int index)
FPInterfaceDesc *	GetDesc ()
Interface_ID	GetID ()
CoreExport FPFunctionDef *	GetFnDef (FunctionID fid)
ActionTable *	GetActionTable ()
CoreExport void	EnableActions (BOOL onOff)
virtual CoreExport HINSTANCE	HInstance ()
virtual CoreExport const MCHAR *	GetRsrcString (StringResID id)
Public Member Functions inherited from FPInterface
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t=0, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPParams *params)
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t, FPValue &result, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPValue &result, FPParams *params=NULL)
virtual CoreExport FunctionID	FindFn (const MCHAR *name)
virtual CoreExport BOOL	IsEnabled (FunctionID actionID)
virtual CoreExport BOOL	IsChecked (FunctionID actionID)
virtual CoreExport BOOL	IsVisible (FunctionID actionID)
virtual CoreExport FunctionID	GetIsEnabled (FunctionID actionID)
virtual CoreExport FunctionID	GetIsChecked (FunctionID actionID)
virtual CoreExport FunctionID	GetIsVisible (FunctionID actionID)
Public Member Functions inherited from BaseInterface
virtual UtilExport	~BaseInterface ()
	Destructor.
virtual bool	RegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual void	UnRegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual BaseInterface *	AcquireInterface ()
virtual void	ReleaseInterface ()
virtual void	DeleteInterface ()
virtual BaseInterface *	CloneInterface (void *remapDir=nullptr)
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()

Additional Inherited Members
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, int block_type, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, const char *filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void *ptr, void *placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.
Public Attributes inherited from FPInterfaceDesc
Interface_ID	ID
MSTR	internal_name
StringResID	description
ClassDesc *	cd
USHORT	flags
Tab< FPFunctionDef * >	functions
Tab< FPPropDef * >	props
Tab< FPEnum * >	enumerations
MSPluginClass *	pc
Rollout *	rollout
ActionTable *	action_table
Static Public Attributes inherited from FPInterface
static CoreExport FPInterfaceDesc	nullInterface
Protected Member Functions inherited from FPInterfaceDesc
CoreExport void	load_descriptor (Interface_ID id, const MCHAR *int_name, StringResID descr, ClassDesc *cd, USHORT flag, va_list ap)
void	InitProtected ()
Protected Member Functions inherited from FPInterface
virtual FPStatus	_dispatch_fn (FunctionID fid, TimeValue t, FPValue &result, FPParams *p)

Detailed Description

This class is the public interface to the scene state feature.

Member Enumeration Documentation

SceneStatePart

enum SceneStatePart

Definition of scene state parts.

Each part is represented by a bit in a BitArray

Enumerator
eIncludeLightProperties
eIncludeLightTM
eIncludeObjectProperties
eIncludeCameraTM
eIncludeCameraProperties
eIncludeLayerProperties
eIncludeLayerAssignment
eIncludeMaterials
eIncludeEnvironment
eIncludeAnimationLayerProperties

                        {
        eIncludeLightProperties = 0,
        eIncludeLightTM = 1,
        eIncludeObjectProperties = 2,
        eIncludeCameraTM = 3,
        eIncludeCameraProperties = 4,
        eIncludeLayerProperties = 5,
        eIncludeLayerAssignment = 6,
        eIncludeMaterials = 7,
        eIncludeEnvironment = 8,
        eIncludeAnimationLayerProperties =9,
    };

anonymous enum

anonymous enum

Enumerator
E_GET_COUNT
E_GET
E_FIND
E_CAPTURE
E_RESTORE
E_DELETE
E_RENAME
E_GET_PARTS
E_GET_NUM_PARTS
E_PART_TO_INDEX
E_INDEX_TO_PART
E_CAPTURE_ALL_PARTS
E_RESTORE_ALL_PARTS

    {
        E_GET_COUNT,
        E_GET,
        E_FIND,
        E_CAPTURE,
        E_RESTORE,
        E_DELETE,
        E_RENAME,
        E_GET_PARTS,
        E_GET_NUM_PARTS,
        E_PART_TO_INDEX,
        E_INDEX_TO_PART,
        E_CAPTURE_ALL_PARTS,
        E_RESTORE_ALL_PARTS
    };

Member Function Documentation

GetSceneStateCount()

virtual int GetSceneStateCount ( )

pure virtual

Get the number of scene states stored in the scene.

Returns

The number of scene states stored in the scene.

GetSceneState()

virtual const MCHAR * GetSceneState ( int index )

pure virtual

Get the name of the scene state at this index.

Parameters

[in]

index

- The index of the scene state

Returns

The name of the scene state, or NULL in case of an error.

FindSceneState()

virtual int FindSceneState ( const MCHAR * name )

pure virtual

Find the index of the scene state with this name.

Parameters

[in]

name

- The name of the scene state.

Returns

The index of the scene state, or -1 in case of an error.

CaptureState() [1/2]

virtual bool CaptureState ( const MCHAR * name )

pure virtual

Capture, or save, a scene state. All scene state parts will be saved.

Parameters

[in]

name

- The name of the scene state

Returns

true if successful, otherwise false.

CaptureState() [2/2]

virtual bool CaptureState ( const MCHAR * name, BitArray parts )

pure virtual

Capture, or save, a scene state with a specific set of parts.

Parameters

[in]	name	- The name of the scene state
[in]	parts	- A BitArray representing the scene state parts to save.

Returns

true if successful, otherwise false.

See also

SceneStatePart

RestoreState() [1/2]

virtual bool RestoreState ( const MCHAR * name )

pure virtual

Restore a scene state. All scene state parts included in the scene state will be restored.

Parameters

[in]

name

- The name of the scene state to restore

Returns

true if successful, otherwise false.

RestoreState() [2/2]

virtual bool RestoreState ( const MCHAR * name, BitArray parts )

pure virtual

Restore a scene state.

Parameters

[in]	name	- The name of the scene state to restore
[in]	parts	- A BitArray representing the scene state parts to restore.

Returns

true if successful, otherwise false.

See also

SceneStatePart

DeleteState()

virtual bool DeleteState ( const MCHAR * name )

pure virtual

Delete the scene state with this name.

Parameters

[in]

name

- The name of the scene state to delete

Returns

true if successful, otherwise false.

RenameState()

virtual bool RenameState ( const MCHAR * oldName, const MCHAR * newName )

pure virtual

Rename a scene state.

Parameters

[in]	oldName	- The name of the scene state to rename
[in]	newName	- The new name of the scene state

Returns

true if successful, otherwise false.

GetSceneStateParts()

virtual BitArray GetSceneStateParts ( const MCHAR * name )

pure virtual

Get the parts that are stored in a specific scene state.

Parameters

[in]

name

- The name of the scene state

Returns

A bitarray representing the parts that the scene state contains.

See also

SceneStatePart

DoManageDialog()

virtual void DoManageDialog ( )

pure virtual

Open the Scene State manager dialog.

EnumAuxFiles()

virtual void EnumAuxFiles ( AssetEnumCallback & assetEnum, DWORD flags = FILE_ENUM_ALL )

pure virtual

Enumerate external files used by objects stored in the scene states.

Parameters

[in]	assetEnum	- The callback where external files are logged.
[in]	flags	- Standard EnumAuxFiles flags.
