The list of XMLAnimTreeEntry tracks, that will then be loaded onto, or saved out, or put into the mixer. More...

#include <C:/adskgit/3dsmax/3dsmax/3dswin/src/maxsdk/include/XMLAnimTreeEntry.h>

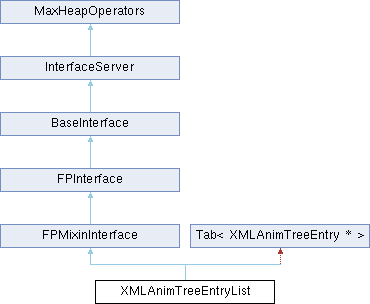

Inheritance diagram for XMLAnimTreeEntryList:

Public Types
enum	{ getEntry , count , zeroCount , shrink , deleteItems , findAnim , findName }
Public Types inherited from BaseInterface
enum	LifetimeType { noRelease , immediateRelease , wantsRelease , serverControlled }

Public Member Functions
DllExport	XMLAnimTreeEntryList ()
	Constructor.
DllExport	~XMLAnimTreeEntryList ()
	Deconstructor.
DllExport XMLAnimTreeEntry *	operator[] (const int index)
	Returns the i'th XMLAnimTreeEntry.
DllExport int	Count () const
	How many items in the list.
DllExport void	ZeroCount ()
	Zeroes out the list and deletes the XLMAnimTreeEntries in the list.
DllExport void	Shrink ()
	Shrinks the internal Tab that holds the items.
DllExport int	Delete (int start, int num)
	Delete the specified items out of the list. Also deletes the XMLAnimTreeEntry objects themselves.
DllExport void	DeleteData ()
	Deletes all of the XMLAnimTreeEntries in the list.
DllExport int	FindAnim (Animatable *anim, int start=0)
	Find the specified anim in the list.
DllExport int	Find (XMLAnimTreeEntry *which)
	Find this particular XMLAnimTreeEntry based off it's pointer value.
DllExport int	Find (const MSTR &name, int unique)
DllExport void	FindParents (int index, Tab< int > &parentIndices)
DllExport void	FindChildren (int index, Tab< int > &childIndices)
	Fnd the subAnim children of the specified item.
	FN_1 (getEntry, TYPE_INTERFACE, GetEntry, TYPE_INT)
	FN_0 (count, TYPE_INT, Count)
	VFN_0 (zeroCount, ZeroCount)
	VFN_0 (shrink, Shrink)
	FN_2 (deleteItems, TYPE_INT, Delete, TYPE_INT, TYPE_INT)
	FN_2 (findAnim, TYPE_INT, FindAnimFP, TYPE_REFTARG, TYPE_INT)
	FN_2 (findName, TYPE_INT, FindNameFP, TYPE_STRING, TYPE_INT)
DllExport FPInterfaceDesc *	GetDesc ()
LifetimeType	LifetimeControl ()
BaseInterface *	AcquireInterface ()
DllExport void	ReleaseInterface ()
Public Member Functions inherited from FPMixinInterface
	FPMixinInterface ()
virtual CoreExport bool	RegisterNotifyCallback (InterfaceNotifyCallback *incb)
virtual void	UnRegisterNotifyCallback (InterfaceNotifyCallback *incb)
CoreExport	~FPMixinInterface ()
virtual BaseInterface *	GetInterface (Interface_ID id)
virtual FPInterfaceDesc *	GetDescByID (Interface_ID id)
virtual Interface_ID	GetID ()
Public Member Functions inherited from FPInterface
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t=0, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPParams *params)
virtual CoreExport FPStatus	Invoke (FunctionID fid, TimeValue t, FPValue &result, FPParams *params=NULL)
virtual FPStatus	Invoke (FunctionID fid, FPValue &result, FPParams *params=NULL)
virtual CoreExport FunctionID	FindFn (const MCHAR *name)
virtual CoreExport BOOL	IsEnabled (FunctionID actionID)
virtual CoreExport BOOL	IsChecked (FunctionID actionID)
virtual CoreExport BOOL	IsVisible (FunctionID actionID)
virtual CoreExport FunctionID	GetIsEnabled (FunctionID actionID)
virtual CoreExport FunctionID	GetIsChecked (FunctionID actionID)
virtual CoreExport FunctionID	GetIsVisible (FunctionID actionID)
virtual ActionTable *	GetActionTable ()
virtual void	EnableActions (BOOL onOff)
Public Member Functions inherited from BaseInterface
virtual UtilExport	~BaseInterface ()
	Destructor.
virtual void	DeleteInterface ()
virtual BaseInterface *	CloneInterface (void *remapDir=nullptr)
Public Member Functions inherited from InterfaceServer
virtual UtilExport	~InterfaceServer ()
	Destructor.
template<class InterfaceType>
InterfaceType *	GetTypedInterface ()

Friends
class	XMLAnimTreeEntry
class	XMLAnimLabelWindow
class	XMLAnimMapDlg
class	AnimFileLoader
class	AnimFileCreator
class	XMLAnim
class	XMLTreeListEnum
class	XMLAnimTreeEntryListImp
class	NodeAndAnims

Additional Inherited Members
Static Public Member Functions inherited from MaxHeapOperators
static UtilExport void *	operator new (size_t size)
	Standard new operator used to allocate objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e)
	Standard new operator used to allocate objects if there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate objects that takes the type of memory, filename and line number where the new was called If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate objects that takes the filename and line number where the new was called If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new (size_t size, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate objects that takes extra flags to specify special operations If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, int block_type, const char *filename, int line)
	New operator used to allocate arrays of objects.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, const char *filename, int line)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void *	operator new[] (size_t size, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, an exception will be thrown.
static UtilExport void *	operator new[] (size_t size, const std::nothrow_t &e, unsigned long flags)
	New operator used to allocate arrays of objects If there is insufficient memory, NULL will be returned.
static UtilExport void	operator delete (void *ptr)
	Standard delete operator used to deallocate an object If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an object If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void ptr, const char filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void ptr, int block_type, const char filename, int line)
	Delete operator used to deallocate an object that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void ptr, const std::nothrow_t &e, const char filename, int line)
	Delete operator used to deallocate an object that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete (void *ptr, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an object that takes extra flags to specify special operations If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e)
	Standard delete operator used to deallocate an array of objects If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void ptr, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void ptr, int block_type, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the type of memory, filename and line number where the delete was called If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void ptr, const std::nothrow_t &e, const char filename, int line)
	Delete operator used to deallocate an array of objects that takes the filename and line number where the delete was called If the pointer is invalid, nothing will happen.
static UtilExport void	operator delete[] (void *ptr, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void	operator delete[] (void *ptr, const std::nothrow_t &e, unsigned long flags)
	Delete operator used to deallocate an array of objects that takes extra flags to specify special operations If the pointer is invalid, an exception will be thrown.
static UtilExport void *	operator new (size_t size, void *placement_ptr)
	Placement new operator.
static UtilExport void	operator delete (void ptr, void placement_ptr)
	Placement delete operator.
static UtilExport void *	aligned_malloc (size_t size, size_t alignment)
	Allocates memory on a specified alignment boundary.
static UtilExport void *	aligned_realloc (void *ptr, size_t size, size_t alignment)
	Reallocates memory on a specified alignment boundary.
static UtilExport void	aligned_free (void *ptr)
	Frees a block of memory that was allocated with aligned_malloc/aligned_realloc.
Static Public Attributes inherited from FPInterface
static CoreExport FPInterfaceDesc	nullInterface
Protected Member Functions inherited from FPMixinInterface
	FPMixinInterface (const FPMixinInterface &rhs)
FPMixinInterface &	operator= (const FPMixinInterface &rhs)
Protected Member Functions inherited from FPInterface
virtual FPStatus	_dispatch_fn (FunctionID fid, TimeValue t, FPValue &result, FPParams *p)
Protected Attributes inherited from FPMixinInterface
Tab< InterfaceNotifyCallback * > *	interfaceNotifyCBs

Detailed Description

The list of XMLAnimTreeEntry tracks, that will then be loaded onto, or saved out, or put into the mixer.

The class contains pointers to the XMLAnimTreeEntry objects and allocates and deletes these objects itself. This class is contained within the NodeAndAnims object.

See also: XMLAnimTreeEntry; NodeAndAnims

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

!

Enumerator
getEntry
count
zeroCount
shrink
deleteItems
findAnim
findName

332{ getEntry,count,zeroCount,shrink,deleteItems,findAnim,findName};

XMLAnimTreeEntryList::getEntry

@ getEntry
