Basic video input class, supporting webcam and DV device. More...

#include <fbvideo.h>

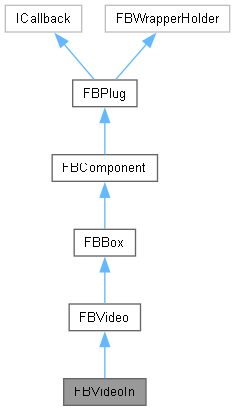

Inheritance diagram for FBVideoIn:

[legend]

Public Member Functions
	FBVideoIn (HIObject pObject=NULL)
	Constructor.

virtual bool	LiveSetCompressor (int pCompressorIndex)
	Set the current compressor to be used when recording.

virtual int	LiveGetCompressor ()
	Get the current compressor index.

virtual int	LiveGetCompressorCount ()
	Get the compressor count.

virtual const char *	LiveGetCompressorName (int pCompressorIndex)
	Get the compressor name at a particular index.

virtual void	LiveSetResolutionFR (int pIndex)
	Set the current resolution and frame rate for the device.

virtual int	LiveGetResolutionFR ()
	Get the current resolution and frame rate index.

virtual int	LiveGetResolutionFRCount ()
	Get the number of resolution and frame rate available for the device.

virtual const char *	LiveGetResolutionFRName (int pIndex)
	Get the resolution and frame rate string description at the specified index.

virtual FBVideoLiveType	LiveGetType ()
	Get the type of the video input device.

Public Member Functions inherited from FBVideo
	FBVideo (const char *pName, HIObject pObject=NULL)
	Constructor.

Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor.

virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes.

virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char pName, const char pDataType, bool pIsPublic=false, double pMin=NULL, double pMax=NULL, bool pUserData=false)

virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated.

virtual bool	AnimationNodeNotify (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Notification function for animation thread.

virtual bool	ResolveCandidate (FBAnimationNode pAnimationNode, FBEvaluateInfo pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local).

virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node.

virtual ECandidateAction	SetStdCandidate (FBAnimationNode pAnimationNode, double pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node.

virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format.

virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)

virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node.

virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data?

virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo.

virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

virtual FBAnimationNode *	AnimationNodeOutGet ()

virtual const char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

	IObject_Declare (override)

virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box.

virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box.

virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index.

virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index.

Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor.

virtual	~FBComponent ()
	Destructor.

virtual bool	FBCreate ()
	Open Reality Creation function.

virtual void	FBDestroy ()
	Open Reality destruction function.

virtual void	FBDelete () override
	Open Reality deletion function.

virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer.

virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager.

void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager.

void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

FBProperty *	PropertyCreate (const char pName, FBPropertyType pType, const char pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char pNamespaceName, const char pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace.

virtual const char *	ClassName () override
	Get the class name.

virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not.

const char *	GetFullName (void)
	Get the full name.

void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object.

FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object.

FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object.

void	HardSelect ()
	HardSelect.

virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId.

virtual int	GetTypeId () override
	GetTypeId( int pTypeId )

Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject.

void	AddWrapper (FBScriptWrapper *)

void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyBool	Online
	Read Write Property: If true, the device is online and will display the current video feed.

FBPropertyBool	Recording
	Read Write Property: If true, the device will record during a recording session.

FBPropertyBool	RecordAudio
	Read Write Property: If true, the device will also record audio during a recording session.

FBPropertyString	FilePath
	Read Write Property: Location of the generated movie file after a recording session.

Public Attributes inherited from FBVideo
FBPropertyBool	KeepOnGPU
	Read Write Property: Don't auto flush from GPU if true. session runtime flag, won't be saved.

Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name.

FBPropertyBool	Animatable
	Read Write Property: Is the box animatable.

FBPropertyBool	Live
	Read Write Property: Is live?

FBPropertyBool	RecordMode
	Read Write Property: Is recording?

Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

FBPropertyListComponent	Components
	List: List of components.

FBPropertyListComponent	Parents
	List: Parents.

FBPropertyBool	Selected
	Read Write Property: Selected property.

FBPropertyString	Name
	Read Write Property: Unique name of object.

FBPropertyString	LongName
	Read Write Property: Name and namespace for object.

FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component.

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction { eCandidateAccept , eCandidateIntercept , eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...

Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()

static void	FBComponentSetName (FBComponent pObject, const char pName)

static const char *	FBComponentGetName (FBComponent *pObject)

static void	FBComponentSetLongName (FBComponent pObject, const char pName)

static const char *	FBComponentGetLongName (FBComponent *pObject)

Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object.

Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.

bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.

bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.

bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.

bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.

bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection.

bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection.

void	DisconnectAllSrc ()
	Remove all source connections.

void	DisconnectAllDst ()
	Remove all destination connections.

bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index.

bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index.

bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index.

bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index.

bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.

bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.

bool	MoveSrcAt (FBPlug pSrc, FBPlug pAtSrc)
	Move source connection pSrc to the position of pAtSrc.

int	GetSrcCount ()
	Get source connection count.

FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index.

FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index.

int	GetDstCount ()
	Get destination connection count.

FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index.

FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index.

bool	BeginChange ()
	Begins a change on multiple plugs.

void	EndChange ()
	Ends a change on multiple plugs.

void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag.

bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed.

void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag.

bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed.

int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List.

bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status.

void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag.

bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed.

FBPlug *	GetOwner ()
	Get the owner of this plug.

FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index.

int	GetOwnedCount ()
	Get the owned plug count.

virtual const char *	ClassName ()
	internal System vars.

virtual bool	Is (int pTypeId)
	Is( int pTypeId )

virtual int	GetTypeId ()
	GetTypeId( int pTypeId )

virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.

virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug pThis, void pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.

virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug pThis, int pIndex, FBPlug pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.

virtual void	FBDelete ()
	Actual destructor for a FBPlug.

Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id.

Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component.

HIObject	mObject
	Handle on the Plug.

bool	mSDKComponent
	bool Plug is an SDK component.

Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object.

static int	TypeInfo
	TypeInfo.

static int	mGlobalTypeInfo
	Represente the Type Index.

Detailed Description

Basic video input class, supporting webcam and DV device.

Definition at line 365 of file fbvideo.h.

Constructor & Destructor Documentation

◆ FBVideoIn()

FBVideoIn ( HIObject pObject = NULL )

Constructor.

Parameters

pObject Internal parent object.

Member Function Documentation

◆ LiveGetCompressor()

virtual int LiveGetCompressor ( )

virtual

Get the current compressor index.

Returns: Index of the current compressor.

◆ LiveGetCompressorCount()

virtual int LiveGetCompressorCount ( )

virtual

Get the compressor count.

Returns: Number of available compressor.

◆ LiveGetCompressorName()

virtual const char * LiveGetCompressorName ( int pCompressorIndex )

virtual

Get the compressor name at a particular index.

Returns: Name of the compressor. If the pCompressorIndex is higher than the number of compressor, the function will return NULL.

◆ LiveGetResolutionFR()

virtual int LiveGetResolutionFR ( )

virtual

Get the current resolution and frame rate index.

Returns: Index of the current resolution and frame rate.

◆ LiveGetResolutionFRCount()

virtual int LiveGetResolutionFRCount ( )

virtual

Get the number of resolution and frame rate available for the device.

Returns: Number of available resolution and frame rate.

◆ LiveGetResolutionFRName()

virtual const char * LiveGetResolutionFRName ( int pIndex )

virtual

Get the resolution and frame rate string description at the specified index.

Parameters

pIndex Index of the resolution and frame rate.

Returns: Name of the resolution and frame rate.

◆ LiveGetType()

virtual FBVideoLiveType LiveGetType ( )

virtual

Get the type of the video input device.

Returns: Type of the video input device.

◆ LiveSetCompressor()

virtual bool LiveSetCompressor ( int pCompressorIndex )

virtual

Set the current compressor to be used when recording.

Parameters

pCompressorIndex Index of the compressor.

Returns: True if successful.

◆ LiveSetResolutionFR()

virtual void LiveSetResolutionFR ( int pIndex )

virtual

Set the current resolution and frame rate for the device.

Parameters

pIndex Index of the resolution and frame rate.

Member Data Documentation

◆ FilePath

FBPropertyString FilePath

Read Write Property: Location of the generated movie file after a recording session.

Definition at line 376 of file fbvideo.h.

◆ Online

FBPropertyBool Online

Read Write Property: If true, the device is online and will display the current video feed.

Definition at line 373 of file fbvideo.h.

◆ RecordAudio

FBPropertyBool RecordAudio

Read Write Property: If true, the device will also record audio during a recording session.

Definition at line 375 of file fbvideo.h.

◆ Recording

FBPropertyBool Recording

Read Write Property: If true, the device will record during a recording session.

Definition at line 374 of file fbvideo.h.

The documentation for this class was generated from the following file:

fbvideo.h

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBVideoIn()

Member Function Documentation

◆ LiveGetCompressor()

◆ LiveGetCompressorCount()

◆ LiveGetCompressorName()

◆ LiveGetResolutionFR()

◆ LiveGetResolutionFRCount()

◆ LiveGetResolutionFRName()

◆ LiveGetType()

◆ LiveSetCompressor()

◆ LiveSetResolutionFR()

Member Data Documentation

◆ FilePath

◆ Online

◆ RecordAudio

◆ Recording
