Reflectance and Transmittance Display

Materials and Radiosity

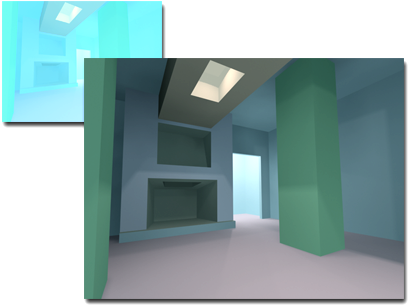

Upper left: Washed-out walls due to high reflectance.

Right: Better radiosity achieved by reducing the HSV Value (V) of materials in the scene.

To get good radiosity results, keep these points in mind as you design materials:

• Before you generate a radiosity solution, check the reflectance value of all materials in the scene, to make sure it is not too high. The reflectance of a material determines how much of the light energy it receives is subsequently used in the radiosity calculation. Keep this value within the range of the physical materials you are simulating. (See the table in the description of “Reflectance,” below.)
• Don’t be concerned if a material preview seems too dark. For example, a white wall with the maximum recommended reflectance of 80% appears gray. The color balance will be adjusted correctly by the exposure control in the final rendering.
• Bitmaps used as diffuse textures have already been illuminated by the scanner, digital camera, or paint program in which you created them. To bring them into the proper reflectance range, you might have to dim them by reducing the RGB Level value on the bitmap’s Output rollout.

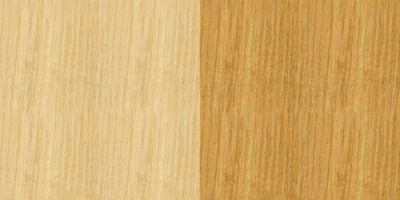

  Left: Wood grain bitmap as originally photographed has too high a reflectance.

  Right: Reducing the RGB Level value reduces the map’s reflectance.

Reflectance and Transmittance Fields

Reflectance

Reflectance is the percentage of diffuse light energy that is reflected from a material. When you increase a material’s HSV value (V), the material reflects more diffuse light. Decreasing a material’s Opacity also decreases its reflectance.

Typically, the reflectance of a material should never be greater than 85%. this is an unusually high value that will lead to poor-quality renderings. In the real world, even the whitest wall reflects no more than 80% of the light it receives.

One source of high reflectance can be a map assigned to the material’s diffuse component. For example, a white tile bitmap might create high reflectance. In this case, you can reduce reflectance by reducing the RGB Level in the bitmap’s Output rollout.

An alternate way to reduce a bitmapped material’s reflectance is to set the diffuse color of the material to black, and then reduce the diffuse map’s Amount (in the parent material’s Maps rollout). You can use this method to reduce the reflectance of 3D procedural maps as well.

Here are some typical reflectance ranges for common materials:

Material	Minimum	Maximum
Ceramic	20%	70%
Fabric	20%	70%
Masonry	20%	50%
Metal	30%	90%
Paint	30%	80%
Paper	30%	70%
Plastic	20%	80%
Stone	20%	70%
Wood	20%	50%

Transmittance

Transmittance is the amount of light energy transmitted through a material. A completely opaque material has 0% transmittance.

When the material is transparent (like clear glass), the energy transmitted is specular, and light passes directly through the material (subject to refraction). The value of specular transmittance is an interaction between the material’s Opacity value and its filter color. When the filter color is pure white, specular transmittance is the inverse of Opacity.

When the material is translucent (like frosted glass), the energy transmitted is diffuse, and scattered in all directions. The value of diffuse transmittance is based on the HSV value (V) of the translucent color. Diffuse transmittance happens only for materials that use the Translucent shader, or Raytrace materials that specify translucency.

Usually, when a material has high transmittance, it has low reflectance, and the other way around.
