Pair Models

Video Player is loading.

Play

Play

Mute

Current Time 0:00

/

Duration 0:00

Loaded: 0%

Progress: 0%



Playback Rate

• 2x
• 1.5x
• 1.25x
• 1x, selected
• 0.5x

1x

Descriptions

• descriptions off, selected

Captions

• captions off, selected

Chapters

Audio Track

Fullscreen

This is a modal window.

Now that we have setup our structural model with ANSYS, we are ready to use Advanced Material Exchange to map fiber orientations to our structural model.

1. With Advanced Material Exchange open, click (Start & Learn > Information Pairing > Part Mapping).

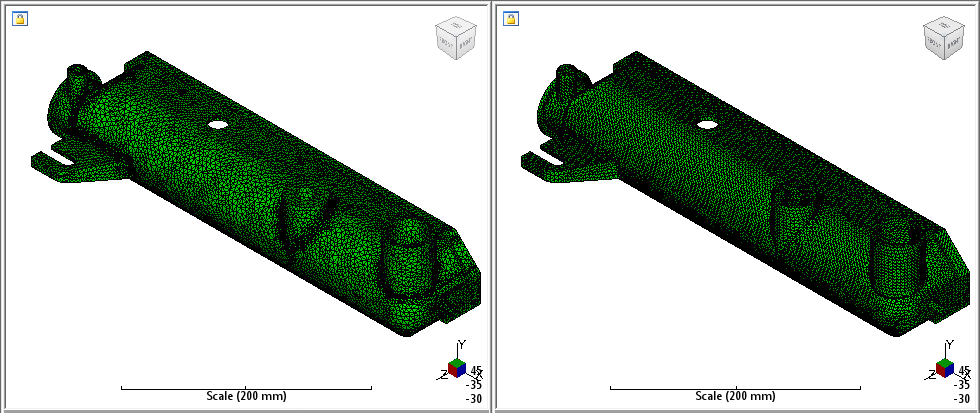

2. When the Part Mapping dialog appears, locate the radiatortank.sdy file. Once selected, you will see a preview of the tank that you can use to verify that the correct part was chosen. Click Continue.
3. Locate the radiatortank.inp file and click OK.
