Surface control tab

You can use the Surface control tab of the Surface Milling Properties dialog to specify how the toolpaths are generated on surfaces.

The Surface list displays all surfaces in the feature. Deselect the check box next to a surface name to exclude it from the operation.

Select a surface in the list to highlight it in the graphics window, or use the Pick surface button and select a surface in the graphics window to highlight it in the list.

Isoline milling

Attributes for — displays the operation being edited.

Surface — The surfaces are machined in the order listed. Use the and buttons to rearrange the surfaces in the list. Deselect the check box next to a surface name to exclude it from the operation.

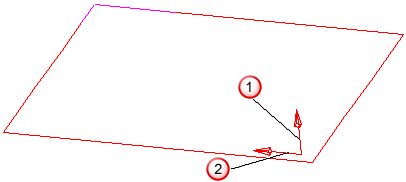

Start Curve — Isoline surfaces are made up of rows or columns of curves. The Start Curve determines the first isoline curve used for machining the surface. Click Set isoline row/col to change the starting isoline curve.
First Row — the tool cuts along the row isoline curves, starting with the first row.

Last Row — the tool cuts along the row isoline curves, starting with the last row.

First Col — the tool cuts along the column isoline curves, starting with the first column.

Last Col — the tool cuts along the column isoline curves, starting with the last column.
Cut direction — Determines the direction that the tool cuts along the isoline curves. Click Cut direction to change the direction between increasing and decreasing.
Sequence — Determines the sequence in which the tool cuts the isoline curves. Click Sequence to cycle through the toolpath sequence options.
1. None — the tool cuts the isoline curves in order.
2. In to out — The tool starts at the middle and cuts towards the outside in both directions.
3. Out to in — The tool starts at the outside and cuts towards the middle from both directions.
