General Settings

Colour Management Mode option

Select the type of colour management tool to use.

Bit-Depth option

Select the output bit-depth. Select "16-bit fp" or "32-bit fp" when converting to a scene-linear colour space.

Tagged Colour Space option

Select the colour space to tag your media with. This does not alter pixel values, but it does affect how the viewports show the media.

Invert

Invert the colour transform to convert from the original destination back to the original source colour space. In Custom mode, available in the Colour Management node, you may also invert individual component transforms by clicking in the Invert column to toggle it.

Export

Export this transformation as a single CTF file. This may be used in other applications that use a sufficiently recent version of OpenColorIO.

Pixel Sampler

Click on this box and then drag the cursor through the image to sample values.

Colour Transform details

Shows descriptive information about the transform including the mathematical operations applied. Each OCIO Transform in the processing chain is shown. Click the plus icon to expand and show the transform parameters.

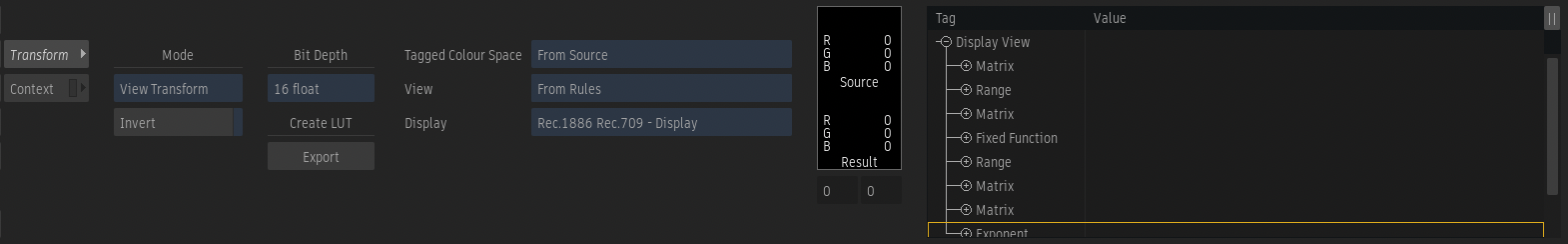

View Transform settings

Tagged Colour Space option

Select "From Source" to use the tagged colour space of the input or select another value to override it.

View Transform option

Before selecting a View, first set the Tagged Colour Space and Display since the list of Views is filtered based on those values. Select "From Rules" to use the highest priority OCIO View for the Tagged Colour Space and Display. Use the "All Views" sub-menu to access all the views in the config for the selected display, not filtered by the OCIO viewing rules.

Display option

Select the Display from the OCIO config that you want to use. The "Current Video Preview Device" option is taken from the Colour Management Preferences. If the display has a corresponding display colour space in the config, that will be used to tag the output. Otherwise, the output will be tagged with the colour space specified in the view.

Input Transform settings

Input Colour Space option

Select the source colour space of your media. "From File or Rules" leverages the File Input Rules set in Colour Management Preferences. However, metadata from the file takes precedence over the File Input Rules. Named Transforms from the config will be included in this menu if they have the 'file-io' category set.

Working Space option

Select the destination colour space for the transform. "From Project" takes the Working Space value from the Colour Management Preferences. By default, the list of items is filtered based on the 'working-space' category tag assigned to each colour space.

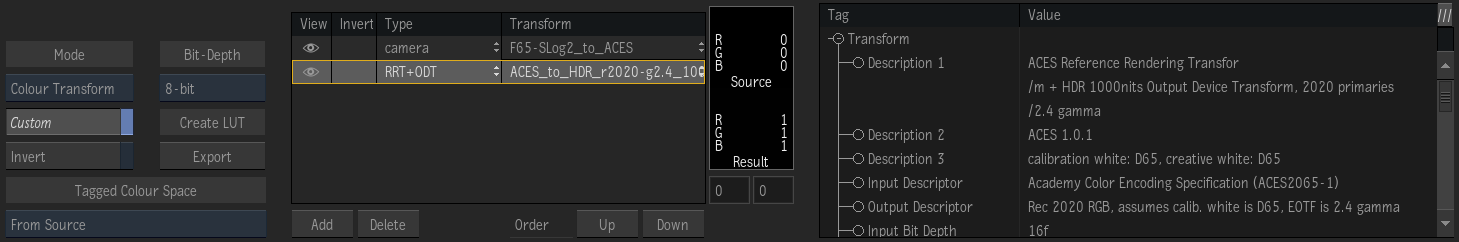

Colour Transform Settings

Import

Open the file browser to import a LUT or colour transform using OpenColorIO.

Custom

Apply a custom chain of colour transforms.

Add

Add a new row to the end of the transform chain. Click in the Type column to select or change the transform type, and then click in the Transform column to select a transform.

Delete

Remove the selected transform from the chain.

Up

Move the selected transform earlier in the chain.

Down

Move the selected transform later in the chain.

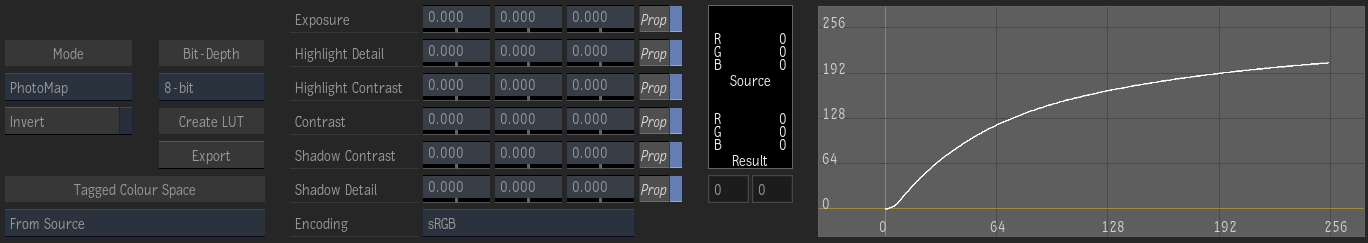

PhotoMap Settings

Invert

Enable to apply the inverse of the tone-mapping parameters function to convert video media to scene-linear media.

Red Exposure field

Displays the luminance level of the red channel for the display image. Editable.

Green Exposure field

Displays the luminance level of the green channel for the display image. Editable.

Blue Exposure field

Displays the luminance level of the blue channel for the display image. Editable.

Red Highlight Detail field

Displays the value for the detail in the light areas of the red channel. Editable.

Green Highlight Detail field

Displays the value for the detail in the light areas of the green channel. Editable.

Blue Highlight Detail field

Displays the value for the detail in the light areas of the blue channel. Editable.

Red Highlight Contrast field

Displays the value for the contrast in the light areas of the red channel. Editable.

Green Highlight Contrast field

Displays the value for the contrast in the light areas of the green channel. Editable.

Blue Highlight Contrast field

Displays the value for the contrast in the light areas of the blue channel. Editable.

Red Contrast field

Displays the value for the midtone contrast in the red channel. Editable.

Green Contrast field

Displays the value for the midtone contrast in the green channel. Editable.

Blue Contrast field

Displays the value for the midtone contrast in the blue channel. Editable.

Red Shadow Contrast field

Displays the value for the contrast in the dark areas of the red channel. Editable.

Green Shadow Contrast field

Displays the value for the contrast in the dark areas of the green channel. Editable.

Blue Shadow Contrast field

Displays the value for the contrast in the dark areas of the blue channel. Editable.

Red Shadow Detail field

Displays the value for the detail in the dark areas of the red channel. Editable.

Green Shadow Detail field

Displays the value for the detail in the dark areas of the green channel. Editable.

Blue Shadow Detail field

Displays the value for the detail in the dark areas of the blue channel. Editable.

Encoding option box

Select a standard format for the colour space.

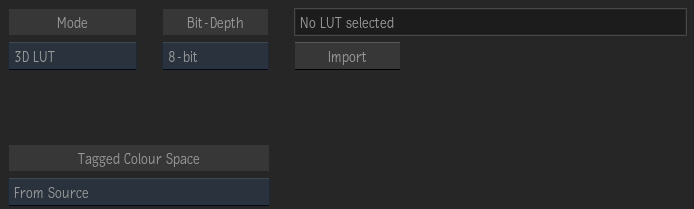

3D LUT Settings

Import

Open the file browser to select a legacy Flame LUT for import.

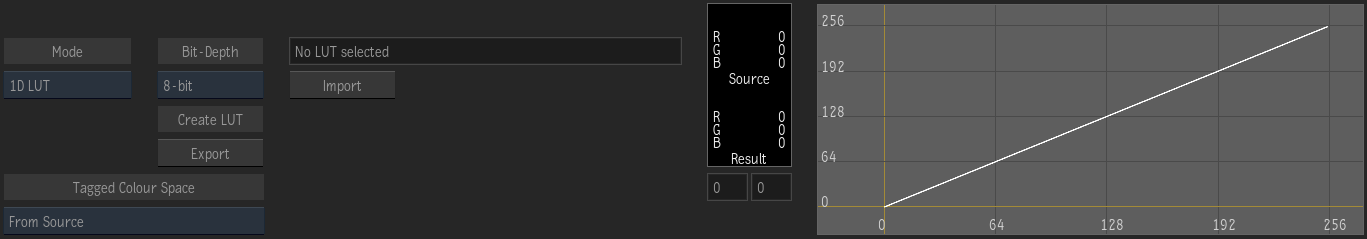

1D LUT Settings

Import

Open the file browser to select a legacy Flame LUT for import.

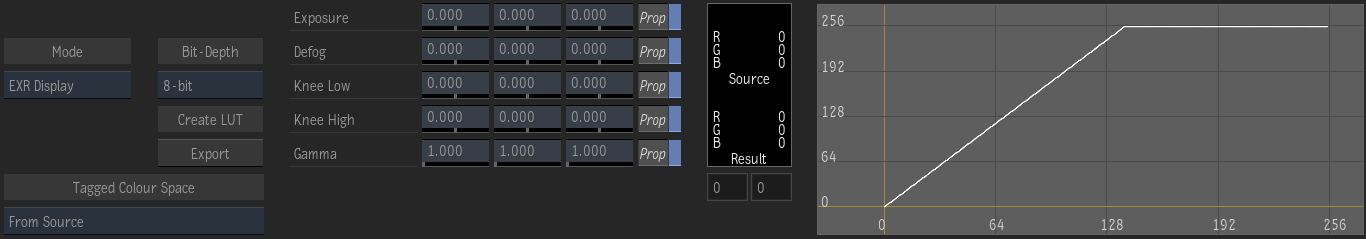

EXR Display Settings

Red Exposure field

Displays the luminance level of the red channel for the display image. Editable.

Green Exposure field

Displays the luminance level of the green channel for the display image. Editable.

Blue Exposure field

Displays the luminance level of the blue channel for the display image. Editable.

Red Defog field

Displays the value to be subtracted from red colour values to reduce fogging of the image. Editable.

Green Defog field

Displays the value to be subtracted from green colour values to reduce fogging of the image. Editable.

Blue Defog field

Displays the value to be subtracted from blue colour values to reduce fogging of the image. Editable.

Red Knee Low field

Displays the lower limit of the compressed pixel range for the red channel. Editable.

Green Knee Low field

Displays the lower limit of the compressed pixel range for the green channel. Editable.

Blue Knee Low field

Displays the lower limit of the compressed pixel range for the blue channel. Editable.

Red Knee High field

Displays the upper limit of the compressed pixel range for the red channel. Editable.

Green Knee High field

Displays the upper limit of the compressed pixel range for the green channel. Editable.

Blue Knee High field

Displays the upper limit of the compressed pixel range for the blue channel. Editable.

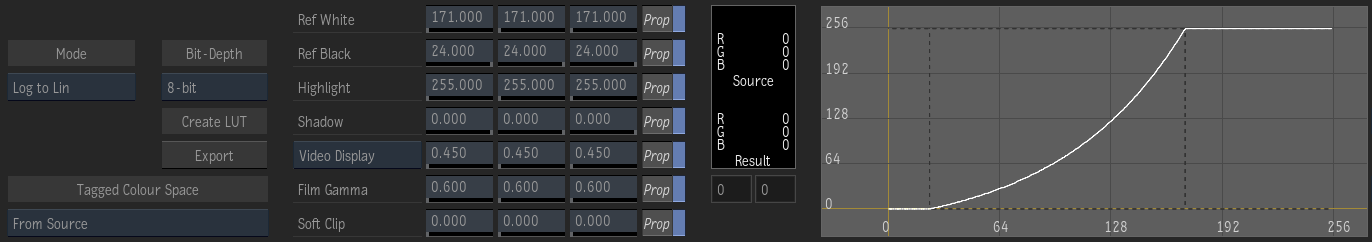

Log to Lin, Lin to Log, and Gamma Settings

Red Reference White field

Displays the lower limit at which red channel values are considered white. Editable.

Green Reference White field

Displays the lower limit at which green channel values are considered white. Editable.

Blue Reference White field

Displays the lower limit at which blue channel values are considered white. Editable.

Red Reference Black field

Displays the upper limit at which red channel values are considered black. Editable.

Green Reference Black field

Displays the upper limit at which green channel values are considered black. Editable.

Blue Reference Black field

Displays the upper limit at which blue channel values are considered black. Editable.

Red Highlight field

Displays the value at which greater red channel values are clamped. Editable.

Green Highlight field

Displays the value at which green channel values are clamped. Editable.

Blue Highlight field

Displays the value at which blue channel values are clamped. Editable.

Red Shadow field

Displays the value at which lower red channel values are clamped. Editable.

Green Shadow field

Displays the value at which lower green channel values are clamped. Editable.

Blue Shadow field

Displays the value at which blue channel values are clamped. Editable.

Gamma Correction box

Select preset gamma correction values (Video Display) or custom values.

This setting is available for Log to Lin and Lin to Log.

Red Gamma Correction field

Displays the gamma correction value for the red channel. Editable.

Green Gamma Correction field

Displays the gamma correction value for the green channel. Editable.

Blue Gamma Correction field

Displays the gamma correction value for the blue channel. Editable.

Red Film Gamma field

Displays the gamma correction value for the red channel. Editable.

Green Film Gamma field

Displays the gamma correction value for the green channel. Editable.

Blue Film Gamma field

Displays the gamma correction value for the blue channel. Editable.

Red Soft Clip field

Displays the level of adjustment to the shoulder of the conversion curve for the red channel. The upper limit is dependent on the channel's current reference white value. To create softer highlight, drag right when using a linear curve. Drag left when using a logarithmic curve.

Green Soft Clip field

Displays the level of adjustment to the shoulder of the conversion curve for the green channel. The upper limit is dependent on the channel's current reference white value. To create softer highlight, drag right when using a linear curve. Drag left when using a logarithmic curve.

Blue Soft Clip field

Displays the level of adjustment to the shoulder of the conversion curve for the blue channel. The upper limit is dependent on the channel's current reference white value. To create softer highlight, drag right when using a linear curve. Drag left when using a logarithmic curve.

Proportional

Enable to constrain channel value proportions.
