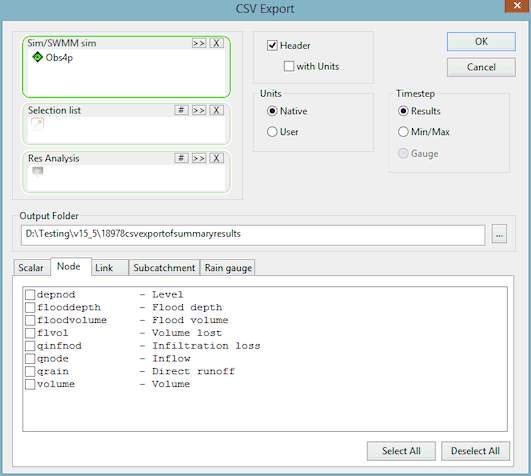

CSV Export Dialog

Sim/SWMM Sim box

Select simulations from which results are to be exported using one of the following methods:

• Drag and drop one or more simulation results from the database tree into the Sim/SWMM sim box.
• Browse for simulation items using the button.

Selection List

A Selection List can be used to restrict export of results to a selection of network objects. If a Selection List is not included, the results of all network objects will be exported.

A Selection List cannot be included if a Results Analysis item has already been selected.

Include a Selection List using one of the following methods:

• Drag and drop a Selection List, containing the network objects for which results are to be exported, from the database tree into the Selection List box.
• Browse for a Selection List using the button.
• Click to include the objects currently selected on the GeoPlan View.

Res Analysis

A Results analysis item can be used to restrict the export of 2D results to a list of Results point (2D), Results section or Results polygon (2D) Results analysis objects. If a Results analysis item is not included, the results of all 2D Zone mesh elements will be exported.

A Results analysis item cannot be included if a Selection List has already been selected.

A Results analysis item is included using one of the following methods:

• Drag and drop a Results analysis item from the database tree into the Res Analysis box.
• Browse for a Results analysis item using the button.
• Click to include the Results point (2D), Results section or Results polygon (2D) Results analysis objects currently displayed on the GeoPlan Window.

Header

Check the Header box to export a header row including network object IDs to the CSV file.

Check the with Units box to include units information in a second header row.

Units

Select whether to export the results in the current User units or in InfoWorks ICM Native (metric) units.

Timestep

Select a timestep option:

• Results - export time varying results at results timestep
• Gauge - export time varying results at gauge timestep (results will not be exported for objects that do not have gauge results)
• Min/Max - export minimum / maximum summary results

Output Folder

Type in the path of the directory to which the results are to be exported, or browse for a directory using the button.

Attribute option tabs

The lower half of the dialog contain tabs for each type of network object for which results can be exported. Select the attributes to be exported by checking the appropriate boxes on the tabs.

Use the Select All and Deselect All buttons to check or uncheck all attributes on the current option tab.

For each simulation selected in the Sim/SWMM sim box, a CSV file will be created for each object/attribute pair checked.
