- Produce an RPA report for a series of simulations using rainfall of different know return periods and storm durations.
- Export the results data from the RPA report and automatically upload it to Info360 Asset. This option is only available for users with an Autodesk licence.
- Export the results data from the RPA report to a CSV file.

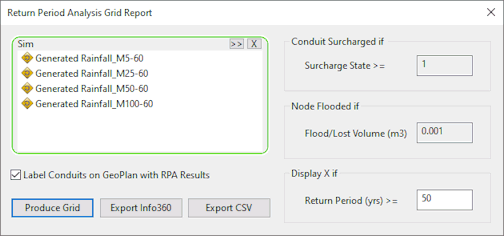

The dialog is displayed when you select Grid report
Return period analysis report from the
Results menu.
See below for a description of the dialog, and Grid Reports for details about how to use it to produce an RPA report and export data from it.
Dialog description
| Item | Description |
|---|---|
| Sim |
A drop box for the simulations to be analysed. For cloud simulations, the results (full or summary) must be downloaded to your local results folder. Ideally these should be a series of simulations using design rainfall events where the rainfall event is the only variation. Choose a series of return periods for each of a series of storm durations. All the simulations must use the same InfoWorks network. |
| Label Conduits on GeoPlan with RPA Results | Check this option to display labels for conduits on the GeoPlan with the RPA results. |
| Surcharge State >= |
Read-only field. The conduit will be considered surcharged if its Surcharge State is greater or equal to 1. |
| Flood/Lost Volume |
Read-only field. Upstream node will be considered flooded if flood/lost volume is greater or equal to 0.001 m3 |
| Return Period (yrs) >= | Use this box to set the maximum return period in which you are interested. Above this value, if flooding occurs at the node, the RPA Report View displays an x to show return period above the specified maximum value. |
| Produce Grid | Click to produce the report as a grid and display it in the RPA Report View. |
| Export Info360 |
Enabled when an RPA report has been produced. Click to export data from the RPA Report View and upload it to Info360 Asset. |
| Export CSV | Enabled when an RPA report has been produced.
Click to export the data from the RPA Report View to a CSV file. When clicked, a Windows Save As dialog is displayed, which you can use to:
|
