The Summary window (on the Baseline page) displays the total number of warnings for objects in the simulation currently displayed on the Baseline page.
This window is known as the Results window on the Comparison page, which is displayed when users perform a run comparison. In this case, the total number of warnings is displayed for each run.
In both cases, the window is displayed at the bottom of the page beneath the Map view.
The display of results in the window can be restricted to a selection of objects by choosing an option from the
(Selection list for results display) dropdown on the
Results toolbar. The options are:
- All assets - Results for all network assets will be displayed in the window.
- List - Results for objects in the chosen selection list will be displayed in the window. When this option is chosen, a list of all available selection lists will be displayed.
- Visible in map - Results for network assets currently displayed in the Map view will be displayed in the window.
- Selected in map - Results for network assets currently selected in the Map view will be displayed in the window.

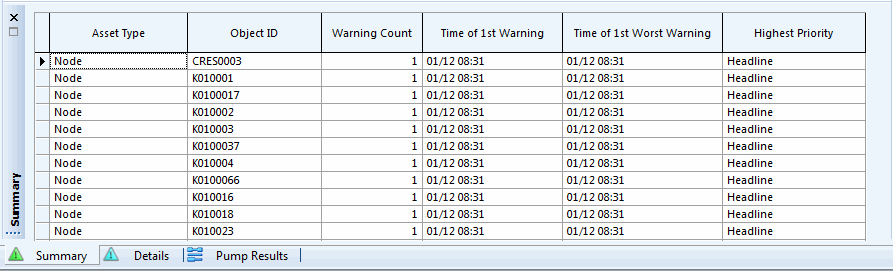

Summary window on the Baseline page
The Summary window is displayed on the Baseline page by doing one of the following:
- Clicking the Summary tab at the bottom of the Baseline page.
- Selecting Window | Results | Summary.
- Clicking the
(Summary) tool on the
Baseline Results toolbar.
To view all of the warnings that occurred during the simulation, see the Details window.
You can export warning summary results by using the Results Export window.

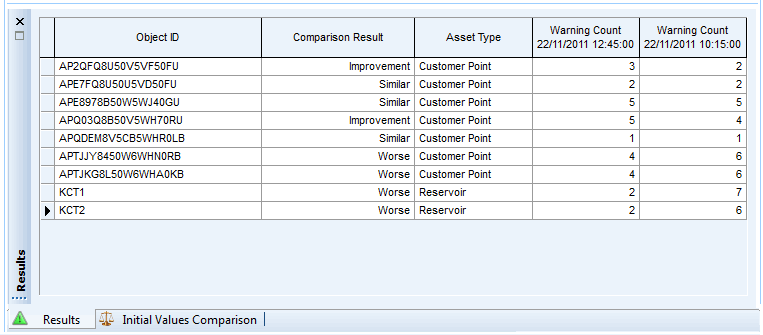

Results window on the Comparison page
To display the Results window on the Comparison page, do one of the following:
- Click the Results tab at the bottom of the Comparison page.
- Select Window | Results.
Summary window and Results window features
| Item | Description | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Column headings |
|
||||||||||||||
| Context menu |
|
