This dialog is used to set up the page options for a graph.
Notes:
- Printer, paper size, source and default page orientation options can be configured on the Print dialog (File | Print).
- There is no print preview feature on this dialog: you can see a print preview by selecting File | Print preview.

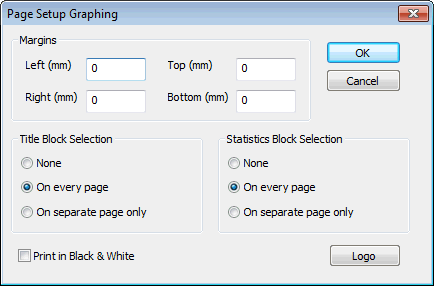

The dialog is displayed when you choose File | Page setup when a Graph view is the current active window.
| Item | Description | ||||||
|---|---|---|---|---|---|---|---|
| Margins | Default is 0, which means no margins. Set any margin you require by entering the size in millimetres. | ||||||
|
Title Block Selection Statistics Block Selection |
Use the Title Block and Statistics Block options (displayed when viewing a saved graph) to control the display of the graph title and statistics table.
|
||||||
| Print in Black & White | Check this box to print in black and white instead of colour. | ||||||
| Logo button |
Opens the Print Setup Logo dialog, for printing a user-defined title and logo at the bottom of the page. |
