TimeWarp pane

When the TimeWarp pane in the FCurves window is active, all changes such as editing, selecting, keyframing, and other actions apply to the selected function curve’s TimeWarp curve.

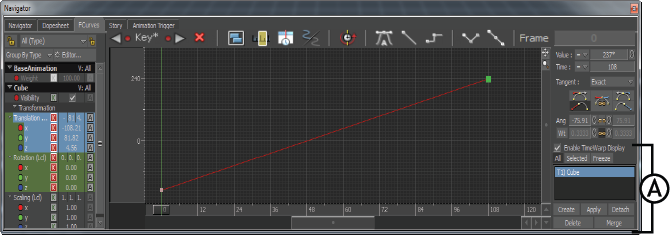

A. TimeWarp pane

The TimeWarp pane includes the following options and buttons:

Enable TimeWarp Display

Activates the TimeWarp pane and displays the selected TimeWarp curve of a function curve.

All

Displays all TimeWarp curves in the scene.

Selected

Displays TimeWarp curves for selected properties in the FCurves Properties pane.

Freeze

Freezes the current TimeWarp list, until you choose All or Selected.

TimeWarp list

The TimeWarp list is empty, by default, until you create a TimeWarp curve (see Creating a TimeWarp curve).

Curves are listed in the TimeWarp pane and numbered “Tn”, where n is a reference number for the TimeWarp curve. The name is based on the object last selected in the FCurves pane. If nothing is selected, the curve is numbered and called “No Name”.

Create

Creates a TimeWarp curve. See Creating a TimeWarp curve.

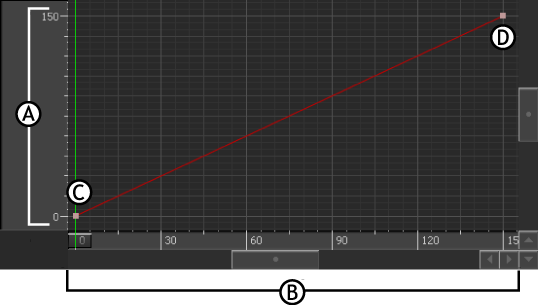

In TimeWarp mode, the original time code is graphed by the TimeWarp time code. The vertical axis shows the time values for the original animation, and the horizontal axis shows the time values for the TimeWarp animation.

A. Original animation values on Y-axis B. TimeWarp animation values on X-axis C. Beginning of time D. End of time

Apply

Applies a TimeWarp curve to its selected property. See Applying a TimeWarp curve.

Detach

Detaches a selected TimeWarp curve from its function curve, and returns to the original motion data. See Detaching a TimeWarp curve.

Delete

Deletes a selected TimeWarp curve. See Deleting a TimeWarp curve.

Merge

Merges a TimeWarp curve with its function curve and makes the curve permanent. See Merging a TimeWarp curve.
