Sample files for use with the examples are available from the Simulation downloads page.
Expand the downloaded ZIP archive into a convenient directory from which to run Local Simulation inside the numbered directories.
Problem Description
For this example, you will run commands inside directory 22.
In this example, symmetry boundary conditions are applied to the thermo-mechanical simulation of a cobalt chrome cylinder. Figure 1 shows the original and quarter-symmetric model.
Symmetry boundary conditions are applied to the X and Y faces at the origin using the *SYMM card.

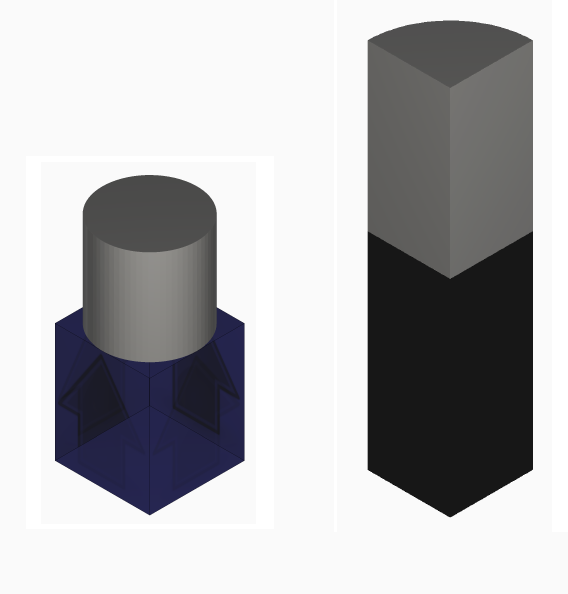

Figure 1: Original and segmented cylinder geometries
