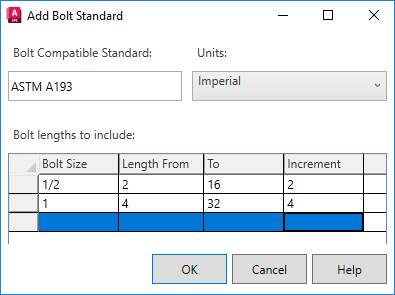

Creates a bolt mapping standard or adds a size and length range to an existing standard.
- Bolt Compatible Standard
- Specifies the name of a new bolt mapping standard. You can also specify the name of an existing standard to add new sizes and length ranges.
- Units
- Specifies metric or imperial units.
- Length From
- Specifies the lower end of the bolt length size range.
- To
- Specifies the upper end of the size range.
- Increment
- Sets the amount that the bolt length increases for each size created in the range. You can modify, add, or remove bolt lengths in the Bolt Length Mapping dialog box.
