PLANTSTEELCUT

Cuts structural members with respect to member boundaries.

Access Methods

Ribbon: Structure tab

Cutting panel

Cut Back Member

Command entry: plantsteelcut

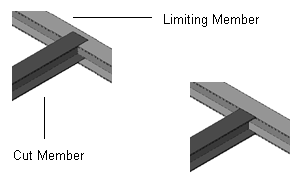

The Cut One option cuts a member to the boundary of another shape. The Cut Both option cuts two members to the boundaries of each other.

The following prompts are displayed.

Select limiting member or [cut Both/Gap]:: Click the limiting member you want to cut.

Specifies that both members are cut to the boundaries of each other.

Specifies a distance or positive value for the cut-back gap.
