Avoid/machine surfaces

The Avoid/Machine surfaces option lets you avoid and/or machine a selection of surfaces, which are specified as Surface Groups. When machining surfaces, this option may be more suitable than using a Machining Boundary because the boundary confines the toolpath in 2D, whereas the Avoid/Machine surfaces confines the toolpath in 3D. When avoiding surfaces, this option may be more suitable than using Model surfaces as any unselected model surfaces are ignored during toolpath generation, which can result in gouges or collisions.

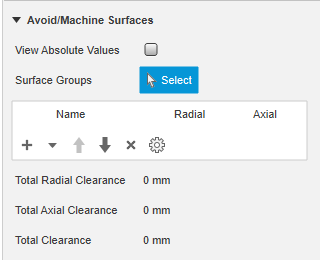

Avoid/Machine Surfaces option in the Geometry tab

The Avoid/Machine Surfaces group gives you more control over what actions you can perform on surface groups. You can select one or more surface groups per operation, and they can each have their own action. Depending on the toolpath, the available actions are:

• Avoid : The tool avoids the surfaces by specified clearance.
• Machine : The tool machines the surface to the stock to leave values.
• Gouge : Allows the tool to cut through the surfaces if they are in the tool's path.
• Fixture : The tool avoids the fixture surface by the specified clearance.

Clearances

Any clearances you specify in the table affect the surface group. However, there are additional clearances that affect the toolpath globally, which are added to the surface group clearances:

• For Avoid surface groups, the total clearance is the sum of the Radial and Axial clearances specified in the Avoid/Machine Surfaces group and the Axial and Radial stock to leave specified in the Passes tab.

• For Machine surface groups, the total stock to leave is the sum of the Radial and Axial clearances stock to leave in the Avoid/Machine Surfaces group and the Axial and Radial stock to leave specified in the Passes tab.

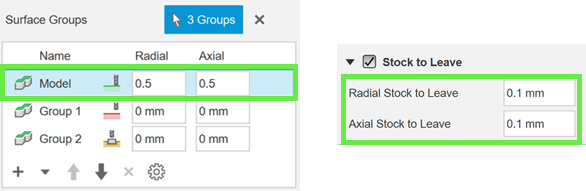

  Total clearance for a surface group set to Machine

• For the Fixture surface groups, the total clearance is the sum of the Radial and Axial fixture clearances specified in the Avoid/Machine Surfaces group and the Axial and Radial fixture clearances specified in the Fixture group in the Setup dialog.

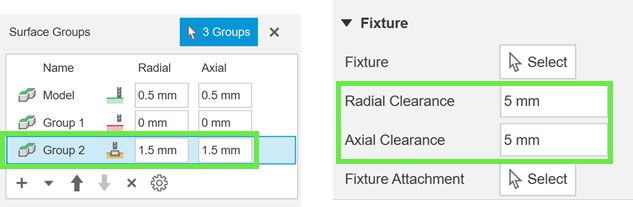

  Total clearance for a surface group set to Fixture

Viewing total clearances

You can view the total values for each surface group by selecting a row from the table:

Total clearances for each surface group

If you want to view the total values for all surface groups in the table, you can select the View Absolute Values checkbox:

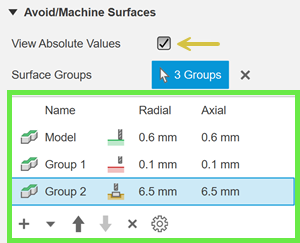

Viewing absolute values for all surface groups

Priority of actions on surfaces

A surface group is a selection of one or more surfaces. If two groups contain the same surface, then the group that is furthest down in the table (usually the most recent selection) takes priority and determines the action for that shared surface.
