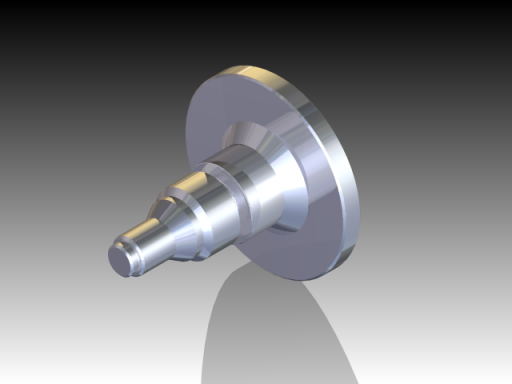

In this tutorial you will learn how to machine the stub axle part shown above using the following procedures:
- Creating a Turning Setup
- Facing Cylindrical Stock
- Machining a Turning Profile
- Machining a Profile Groove
- Cutting an External Thread
- Cutting Off the Part
Before proceeding, open the part Tutorial6.ipt in Inventor HSM.
Note: The files used in these tutorials, as well as other sample datasets, can be found in the C:\Users\Public\Documents\Autodesk\Inventor HSM 2016\Examples subfolder.
