About Supports

Hold parts in place and mitigate thermal effects during printing

There are multiple types of supports that are sufficient or necessary for use with the different methods of additive manufacturing to help keep a part's distortion due to thermal effects to a minimum, allow the deposition of overhanging shapes, and provide general fixation and rigidity during the print process. Netfabb offers a fully comprehensive suite for generating, applying, and editing supports.

Support types in Netfabb

The main types of supports available in Netfabb are bar supports, polyline supports, and volume supports.

Type	Description
Bar supports	Bar supports connect two points, one on the part, and the other one either somewhere else on the same or a different part or on the platform. As such, bars only support single points. Bars may be created as volume-less single-path entities or solid voluminous ones. Bars may also be connected into bouquets that merge multiple bars into tree-like structures which terminate in single trunks at their bottom end.
Polyline supports	Polyline supports are akin to fences. They support a part along a line that are formed by connecting anchors which are set either manually or generated automatically by cluster detection. Polyline supports may come in three main variants, a thin but otherwise featureless wall, the same again, but with holes to resemble a wire-fence-like structure, and a massive wall with a defined thickness beyond that one of a single toolpass.
Volume supports	Volume supports are hollow, regular structures similar to pipes with a square cross section. To create volume supports, you must define at least three anchor points to form an area that can have volume supports applied. Line types, structure properties, fragments and connection types can be adjusted.

Parametric Supports vs. Support Meshes

By default, Netfabb handles supports parametrically: Their meshes are only visualizations of the values used to generate them until they are actually needed in steps such as exporting or labeling.

This allows a more flexible work with supports:

• They can be recreated with fewer or no manual steps whenever an arrangement or packing changes.
• They can be composed of meshes that would technically be unsuitable for printing like regular parts, and as such allow for more freedom in matching your part's support requirements with your chosen printer technology's capabilities with regards to slicing and generating toolpaths for contours and infill, for example.

To help distinguish parts from supports, Netfabb handles parametric supports as attachments colored in blue by default.

Important: The distinction between part and support is saved in the FABBPROJECT file, but forms of export or post-processing may be unable to keep that distinction.

Not all file formats understand the difference between part mesh and support mesh. Currently, only the 3MF format knows the difference.

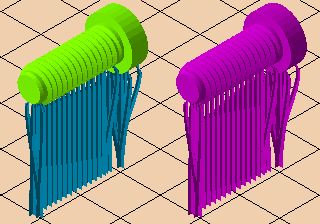

Left: Dedicated support mesh ("parametric supports") is displayed in light blue. Right: Regular-mesh supports show up in the part's (or assembly's) display color or its own actual color (not shown).

Creating Supports in Netfabb

To create supports, Netfabb employs its support module, available in subscription tiers Premium and higher. Other means to create supports are available through certain machine workspaces without the module itself, namely those who are available at subscription tiers Standard and Basic. For example, to learn about creating and modifying supports in an FFF workspace, check out the help provided under Machine Workspaces.
