FBShaderLighted Class Reference

Lighted shader class. More...

#include <fbshader.h>

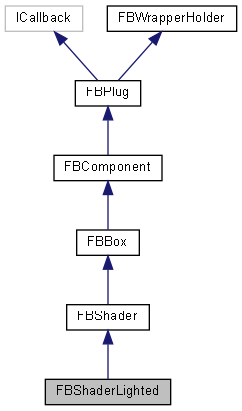

Inheritance diagram for FBShaderLighted:

Public Member Functions
	FBShaderLighted (const char *pName, HIObject pObject=NULL)
	Constructor. More...
Public Member Functions inherited from FBShader
	FBShader (const char *pName, HIObject pObject=NULL)
	Protected constructor. More...
	IObject_Declare (override)
virtual FBShaderModelInfo *	NewShaderModelInfo (HKModelRenderInfo pModelRenderInfo, int pSubRegionIndex)
	Create a new shader-model information object. More...
virtual void	UpdateModelShaderInfo (FBRenderOptions *pOptions, FBShaderModelInfo *pInfo)
	Update shader-model information when model, material & texture mapping or shader setting change. More...
virtual void	DestroyShaderModelInfo (FBRenderOptions *pOptions, FBShaderModelInfo *pInfo)
	Destroy shader-model information object callback. More...
virtual bool	ReplaceAll (FBModel *pModel)
	Replace all shader in pModel. More...
virtual bool	Append (FBModel *pModel)
	Append shader to pModel. More...
virtual bool	ShaderNeedBeginRender ()
	Does the shader need a begin render call. More...
virtual void	ShaderBeginRender (FBRenderOptions *pOptions, FBShaderModelInfo *pInfo)
	Pre-rendering of shaders that is called only one time for a shader instance. More...
virtual void	ShadeModel (FBRenderOptions *pOptions, FBShaderModelInfo *pInfo, FBRenderingPass pPass)
	Real-time shading callback for shader without kFBShaderCapacityMaterialEffect. More...
virtual void	ShadeModelShadow (FBRenderOptions *pRenderOptions, FBShaderModelInfo *pInfo)
	Draw custom shadow shape callback for shader with kFBShaderCapacityDrawShadow but without kFBShaderCapacityMaterialEffect. More...
virtual void	ShaderPassTypeBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the shader instances of the same type, to setup the common state for all this type of shaders. More...
virtual void	ShaderPassTypeEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the shader instances of the same type, to clean the common state for all this type of shaders. More...
virtual void	ShaderPassInstanceBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the models associated with this shader instance, to setup the common state for this shader instance. More...
virtual void	ShaderPassInstanceEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass)
	For all the models associated with this shader instance, to clean the common state for this shader instance. More...
virtual void	ShaderPassMaterialBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo *pInfo)
	For all the models mapped with this material and associated with this shader instance, to setup the common material state for this shader instance. More...
virtual void	ShaderPassMaterialEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo *pInfo)
	For all the models mapped with this material and associated with this shader instance, to clean the common material state for this shader instance. More...
virtual void	ShaderPassGeometryBegin (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo *pInfo)
	For all the models instanced from the same geometry, to setup the common VBO state for this shader instance. More...
virtual void	ShaderPassGeometryEnd (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo *pInfo)
	For all the models instanced from the same geometry, to clean the common VBO state for this shader instance. More...
virtual void	ShaderPassModelsDraw (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, const FBArrayTemplate< FBShaderModelInfo * > &pInfoArray)
	For all the models with the same material/geometry mappings, inside this functions, we only need to setup modelview matrix, and draw the meshes. More...
virtual void	ShaderPassModelDraw (FBRenderOptions *pRenderOptions, FBRenderingPass pPass, FBShaderModelInfo *pInfo)
	Callback for Cg/CgFx shader to setup WorldMaitrx/WorldMatrixIT parameters. More...
virtual void	ShaderPassDrawShadowBegin (FBRenderOptions *pRenderOptions)
	Shadow draw pass begin notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow. More...
virtual void	ShaderPassDrawShadowEnd (FBRenderOptions *pRenderOptions)
	Shadow draw pass end notify for shader with kFBShaderCapacityMaterialEffect and kFBShaderCapacityDrawShow. More...
FBShaderPassActionCallback	GetShaderPassActionCallback () const
	Get Shader Pass Action Callback registration;. More...
void	SetShaderPassActionCallback (FBShaderPassActionCallback pCallback)
	Set Shader Pass Action Callback registration;. More...
virtual void	CloneShaderParameter (FBShader *pNewShader)
	Clone shader. More...
virtual void	DetachDisplayContext (FBRenderOptions *pOptions, FBShaderModelInfo *pInfo)
	Detach the display context from the shader. More...
virtual bool	FbxStore (FBFbxObject *pFbxObject)
	Storage of information into the FBX file format. More...
virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, FBRenderer *pRenderer)
	Retrieval of information into the FBX file format. More...
void	InvalidateShaderVersion ()
	Invalidate Shader version to trigger model-shader informaton to be updated. More...
int	GetShaderVersion () const
	Return Shader Version. More...
FBShaderCapacity	GetShaderCapacity () const
	Return Shader Capacity (bitwise value) More...
bool	HasShaderCapacity (FBShaderCapacity pCapacity)
	Return true if shader has certain capacity. More...
void	SetShaderCapacity (FBShaderCapacity pCapacity, bool pOn)
	Set Shader Capacity (bitwise value). More...
int	GetDrawInstancedMaximumSize () const
	Get shader maximum size for draw instanced. More...
void	SetDrawInstancedMaximumSize (int pMaxSize)
	Set shader maximum size for draw instanced. More...
virtual void	UploadModelViewMatrixArrayForDrawInstanced (const double *pModelViewMatrixArray, int pCount)
	Callback for uploading the modelview array when draw instanced. More...
Public Member Functions inherited from FBBox
	FBBox (const char *pName, HIObject pObject=NULL)
	Constructor. More...
virtual FBAnimationNode *	AnimationNodeInCreate (kReference pUserId, const char *pName, const char *pDataType, bool pIsPublic=false, double *pMin=NULL, double *pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes. More...
virtual FBAnimationNode *	AnimationNodeOutCreate (kReference pUserId, const char *pName, const char *pDataType, bool pIsPublic=false, double *pMin=NULL, double *pMax=NULL, bool pUserData=false)
virtual bool	EvaluateAnimationNodes (FBEvaluateInfo *pEvaluateInfo)
	Evaluation of non TRS nodes that needs to be evaluated. More...
virtual bool	AnimationNodeNotify (FBAnimationNode *pAnimationNode, FBEvaluateInfo *pEvaluateInfo)
	Notification function for animation thread. More...
virtual bool	ResolveCandidate (FBAnimationNode *pAnimationNode, FBEvaluateInfo *pEvaluateInfo)
	Function is call when candidate needs to be resolved (like global to local). More...
virtual ECandidateAction	SetGlobalCandidate (FBAnimationNode *pAnimationNode, double *pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a global candidate is set on an animation node. More...
virtual ECandidateAction	SetStdCandidate (FBAnimationNode *pAnimationNode, double *pData, FBEvaluateInfo *pEvaluateInfo)
	Function is call when a non-global candidate is set on an animation node. More...
virtual bool	FbxStore (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format. More...
virtual bool	FbxRetrieve (FBFbxObject *pFbxObject, kFbxObjectStore pStoreWhat)
virtual bool	AnimationNodeDestroy (FBAnimationNode *pAnimationNode)
	Destroy an animation node. More...
virtual bool	AnimationNodeIsUserData (FBAnimationNode *pAnimationNode)
	Is the animation node user data? More...
virtual void	AnimationNodesOutDisableIfNotWritten (FBEvaluateInfo *pEvaluateInfo)
	This call will disable all out animation nodes from being pull by system (animation thread) for given pEvaluateInfo. More...
virtual FBAnimationNode *	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...
virtual FBAnimationNode *	AnimationNodeOutGet ()
virtual const char *	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...
virtual const char *	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...
	IObject_Declare (override)
virtual int	GetOutConnectorCount () const
	Get the number of animation node outputs for this box. More...
virtual int	GetInConnectorCount () const
	Get the number of animation node inputs for this box. More...
virtual FBAnimationNode *	GetOutConnector (int pIndex) const
	Get the animation node output associated with the given index. More...
virtual FBAnimationNode *	GetInConnector (int pIndex) const
	Get the animation node input associated with the given index. More...
Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor. More...
virtual	~FBComponent ()
	Destructor. More...
virtual bool	FBCreate ()
	Open Reality Creation function. More...
virtual void	FBDestroy ()
	Open Reality destruction function. More...
virtual void	FBDelete () override
	Open Reality deletion function. More...
virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer. More...
virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager. More...
bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager. More...
void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager. More...
void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...
FBProperty *	PropertyCreate (const char *pName, FBPropertyType pType, const char *pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property. More...
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...
void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...
void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...
void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...
void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy. More...
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace. More...
virtual const char *	ClassName () override
	Get the class name. More...
virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not. More...
const char *	GetFullName (void)
	Get the full name. More...
void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object. More...
FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object. More...
FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object. More...
void	HardSelect ()
	HardSelect. More...
virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId. More...
virtual int	GetTypeId () override
	GetTypeId( int pTypeId ) More...
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject. More...
void	AddWrapper (FBScriptWrapper *)
void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyBool	UseContrast
	Read Write Property: Activate the Contrast option. More...
FBPropertyDouble	Contrast
	Read Write Property: Changes the contrast of the object when it reflects light. More...
FBPropertyBool	UseLuminosity
	Read Write Property: Activate the Luminosity option. More...
FBPropertyDouble	Luminosity
	Read Write Property: Changes the brightness of the object when reflecting light. More...
FBPropertyBool	UseSpecular
	Read Write Property: Activate the Specularity option. More...
FBPropertyDouble	Specular
	Read Write Property: Changes an object's level of shininess when it reflects light by affecting the specular highlight. More...
FBPropertyAlphaSource	Transparency
	Read Write Property: Indicates the computation method of the transparency. More...
FBPropertyAnimatableDouble	Alpha
	Read Write Property: Controls the actual effect of the shader on the object. At 0.0 it does nothing, and at 1.0 it fully affects the object. More...
Public Attributes inherited from FBShader
const char *	ShaderDescription
	Description. More...
FBPropertyBool	Enable
	Read Write Property: Is the shader Enabled More...
FBPropertyRenderingPass	RenderingPass
	Read Write Property: Rendering pass object are shaded in. More...
Public Attributes inherited from FBBox
const char *	UniqueName
	internal Unique name. More...
FBPropertyBool	Animatable
	Read Write Property: Is the box animatable. More...
FBPropertyBool	Live
	Read Write Property: Is live? More...
FBPropertyBool	RecordMode
	Read Write Property: Is recording? More...
Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...
FBPropertyListComponent	Components
	List: List of components. More...
FBPropertyListComponent	Parents
	List: Parents. More...
FBPropertyBool	Selected
	Read Write Property: Selected property. More...
FBPropertyString	Name
	Read Write Property: Unique name of object. More...
FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...
FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component. More...

Additional Inherited Members
Public Types inherited from FBBox
enum	ECandidateAction {   eCandidateAccept ,   eCandidateIntercept ,   eCandidateInterceptAfterEvaluation }
	Resolving action for candidates. More...
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()
static void	FBComponentSetName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetName (FBComponent *pObject)
static void	FBComponentSetLongName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetLongName (FBComponent *pObject)
Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object. More...
Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component. More...
bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...
bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...
bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection. More...
bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection. More...
bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection. More...
bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection. More...
void	DisconnectAllSrc ()
	Remove all source connections. More...
void	DisconnectAllDst ()
	Remove all destination connections. More...
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index. More...
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index. More...
bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index. More...
bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index. More...
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B. More...
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex. More...
bool	MoveSrcAt (FBPlug *pSrc, FBPlug *pAtSrc)
	Move source connection pSrc to the position of pAtSrc. More...
int	GetSrcCount ()
	Get source connection count. More...
FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index. More...
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index. More...
int	GetDstCount ()
	Get destination connection count. More...
FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index. More...
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index. More...
bool	BeginChange ()
	Begins a change on multiple plugs. More...
void	EndChange ()
	Ends a change on multiple plugs. More...
void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag. More...
bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed. More...
void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag. More...
bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed. More...
int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List. More...
bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status. More...
void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag. More...
bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed. More...
FBPlug *	GetOwner ()
	Get the owner of this plug. More...
FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index. More...
int	GetOwnedCount ()
	Get the owned plug count. More...
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only. More...
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only. More...
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only. More...
Static Protected Member Functions inherited from FBShader
static FBRenderingPass	GetRenderingPassNeededForAlpha (FBAlphaSource pTransparency)
	In order to be called at the right passes, a shader must set the result of GetRenderingPassNeededForAlpha() to RenderingPass for a given transparency type. More...
Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id. More...
Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component. More...
HIObject	mObject
	Handle on the Plug. More...
bool	mSDKComponent
	bool Plug is an SDK component. More...
Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object. More...
static int	TypeInfo
	TypeInfo. More...
static int	mGlobalTypeInfo
	Represente the Type Index. More...

Detailed Description

Lighted shader class.

This type of shader is the default type used by the application. It allows users to control luminosity, contrast and specularity as well as how the transparency is computed, should it be used.

There are two methods to create a FBShaderLighted object: using the FBShaderManager, or simply by instantiating a class object explicitely.

Note

Please consult the application documentation for more infos on shader properties and their effects.

Warning

This class should not serve as a base class for another class.

Sample C++ code:

// Creation of a lighted shader, and setting it to use
// the constrast and specularity.
FBShaderLighted* lShader = new FBShaderLighted( "New Shader" );

lShader->UseContrast  = true;
lShader->UseSpecular  = true;
lShader->Specular     = 35.0;
lShader->Transparency = kFBAlphaSourceTransluscentAlpha;

// Use the shader.
FBModel* lModel = FBFindModelByLabelName( "Cube" );
if( lModel )
{
lShader->ReplaceAll( lModel );
}

// Do some more things...

// And then delete it when no longer necessary;
lShader->FBDelete();

The following sample code does the same task, but in Python.

Sample Python code:

from pyfbsdk import *

# Creating the shader.
lShader = FBShaderLighted( 'New Python Shader' )
lShader.UseContrast  = True
lShader.UseSpecular  = True
lShader.Specular     = 35.0
lShader.Transparency = FBAlphaSource.kFBAlphaSourceTransluscentAlpha

# User the shader
lModel = FBFindModelByLabelName( 'Cube' )
if lModel <> None:
    lModel.Show = True
    lShader.ReplaceAll( lModel )

Definition at line 775 of file fbshader.h.

Constructor & Destructor Documentation

FBShaderLighted()

FBShaderLighted	(	const char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters

pName	Name of shader.
pObject	Internal parent object to own shader(default=NULL).

Member Data Documentation

Alpha

FBPropertyAnimatableDouble Alpha

Read Write Property: Controls the actual effect of the shader on the object. At 0.0 it does nothing, and at 1.0 it fully affects the object.

Definition at line 797 of file fbshader.h.

Contrast

FBPropertyDouble Contrast

Read Write Property: Changes the contrast of the object when it reflects light.

Definition at line 788 of file fbshader.h.

Luminosity

FBPropertyDouble Luminosity

Read Write Property: Changes the brightness of the object when reflecting light.

Definition at line 791 of file fbshader.h.

Specular

FBPropertyDouble Specular

Read Write Property: Changes an object's level of shininess when it reflects light by affecting the specular highlight.

Definition at line 794 of file fbshader.h.

Transparency

FBPropertyAlphaSource Transparency

Read Write Property: Indicates the computation method of the transparency.

Definition at line 796 of file fbshader.h.

UseContrast

FBPropertyBool UseContrast

Read Write Property: Activate the Contrast option.

Definition at line 787 of file fbshader.h.

UseLuminosity

FBPropertyBool UseLuminosity

Read Write Property: Activate the Luminosity option.

Definition at line 790 of file fbshader.h.

UseSpecular

FBPropertyBool UseSpecular

Read Write Property: Activate the Specularity option.

Definition at line 793 of file fbshader.h.

---

The documentation for this class was generated from the following file:

• fbshader.h
