FBDevice Class Reference

Base Device class. More...

#include <pyfbsdk_generated.h>

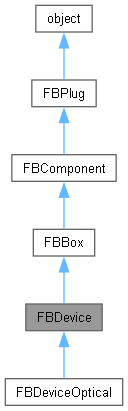

Inheritance diagram for FBDevice:

Public Member Functions

 FBDevice (str pName)
 Constructor.

 AckOneBadSampleReceived ()
 Acknowlege that one bad sample was received (for statistical purposes).

 AckOneSampleReceived ()
 Acknowlege that one sample was received (for statistical purposes).

 AckOneSampleSent ()
 Acknowlege that one sample was sent (for statistical purposes).

bool DeviceOperation (kDeviceOperations pOperation)
 Operate device.

 DeviceSendCommand (kDeviceOperations pOperation)
 Send a command to the device.

bool FBCreate ()
 Open Reality Creation function.

 FBDestroy ()
 Open Reality destruction function.

FBModel ModelBindingCreate ()
 Create a new model binding.

 ModelBindingRootsList (FBModelList pList)
 Get the list of all the possible root models for binding.

 RecordingDoneAnimation (FBAnimationNode pAnimationNode)
 When recording, finish animation.

 RecordingInitAnimation (FBAnimationNode pAnimationNode)
 When recording, initialize animation.

- Public Member Functions inherited from FBBox
 FBBox (str pName)
 Constructor.

bool AnimationNodeDestroy (FBAnimationNode pAnimationNode)
 Destroy an animation node.

FBAnimationNode AnimationNodeInGet ()
 Get the (IN/OUT) animation node for this box.

bool AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
 Is the animation node user data?

FBAnimationNode AnimationNodeOutGet ()

str FbxGetObjectSubType ()
 Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str FbxGetObjectType ()
 Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode GetInConnector (int pIndex)
 Get the animation node input associated with the given index.

int GetInConnectorCount ()
 Get the number of animation node inputs for this box.

FBAnimationNode GetOutConnector (int pIndex)
 Get the animation node output associated with the given index.

int GetOutConnectorCount ()
 Get the number of animation node outputs for this box.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

int CommType
 Read Write Property: Type of communications.


str HardwareVersionInfo
 Read Write Property: Device information: hardware version.


str Information
 Read Write Property: Device information: information.


FBModel ModelBindingRoot
 Component: Root of model currently binded model hierarchy.


FBModelTemplate ModelTemplate
 Component: Root of model template structure.


bool Online
 Read Write Property: Is online?


FBTime RecordingStartTime
 Read Only Property: The time at which the recording started.


FBTime RecordingStopTime
 Read Only Property: The time at which the recording stopped.


FBDeviceSamplingMode SamplingMode
 Read Write Property: Mode to use to record device.


FBTime SamplingPeriod
 Read Write Property: Set this to how many times a device is to be evaluated in one second. There is no theoretical maximum value but practically you should consider scene complexity, system resources, network speed, etc. If set to 0: the device is evaluated on the sync signal. When the sync occurs; the device is scheduled to be evaluated. If you do not set, the sampling period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA).


str Status
 Read Write Property: Device information: status.


- Public Attributes inherited from FBBox
bool Animatable
 Read Write Property: Is the box animatable.


bool Live
 Read Write Property: Is live?


bool RecordMode
 Read Write Property: Is recording?


str UniqueName
 internal Unique name.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Base Device class.


Cannot be instantiated from Python.

# This example shows how to create a Vicon Stream Device (a third-party device), initialize it and add it to the scene:
# Create the Vicon Stream Device
viconStreamDevice = FBCreateObject( 'Browsing/Templates/Devices', 'Vicon Stream Device', 'Vicon Stream Device' )
if viconStreamDevice:
# Initialize the device
viconStreamDevice.DeviceOperation( kDeviceOperations.kOpInit )
# Import the device to the current file
FBSystem().Scene.Devices.append( viconStreamDevice )
print( 'Vicon Stream Device initialized and added to the scene' )
else:
print( 'Vicon Stream Device not found' )
FBListDevice Devices
List: Devices for scene.
Definition: pyfbsdk_generated.h:16863
Provides access to the underlying system, and the MotionBuilder scene.
Definition: pyfbsdk_generated.h:18771
FBScene Scene
Read Only Property: Scene.
Definition: pyfbsdk_generated.h:18884
FBComponent FBCreateObject(str pGroupName, str pEntryName, str pName, pData=None, int nth=0)
FBCreateObject.

See samples: StartDevice.py, StopDevice.py.

Constructor & Destructor Documentation

◆ FBDevice()

FBDevice ( str  pName)

Constructor.

Parameters
pNameName of device.

Member Function Documentation

◆ AckOneBadSampleReceived()

AckOneBadSampleReceived ( )

Acknowlege that one bad sample was received (for statistical purposes).

◆ AckOneSampleReceived()

AckOneSampleReceived ( )

Acknowlege that one sample was received (for statistical purposes).

◆ AckOneSampleSent()

AckOneSampleSent ( )

Acknowlege that one sample was sent (for statistical purposes).

◆ DeviceOperation()

bool DeviceOperation ( kDeviceOperations  pOperation)

Operate device.

This is an operation such as Init, Start, Done, Reset, etc.

Parameters
pOperationOperation to have device perform.
Returns
Current state : <b true if online.

◆ DeviceSendCommand()

DeviceSendCommand ( kDeviceOperations  pOperation)

Send a command to the device.

This function will send the Init, Start, etc. commands to the device.

Parameters
pOperationOperation for device to perform.

◆ FBCreate()

bool FBCreate ( )

Open Reality Creation function.

Returns
Outcome of creation (true/false).

◆ FBDestroy()

FBDestroy ( )

Open Reality destruction function.

◆ ModelBindingCreate()

FBModel ModelBindingCreate ( )

Create a new model binding.

Returns
The model root that has been created or NULL is an error occured.

◆ ModelBindingRootsList()

ModelBindingRootsList ( FBModelList  pList)

Get the list of all the possible root models for binding.

Parameters
pListList to add found models to.

◆ RecordingDoneAnimation()

RecordingDoneAnimation ( FBAnimationNode  pAnimationNode)

When recording, finish animation.

Parameters
pAnimationNodeAnimation node to write information to.

◆ RecordingInitAnimation()

RecordingInitAnimation ( FBAnimationNode  pAnimationNode)

When recording, initialize animation.

Parameters
pAnimationNodeAnimation node to read information from.

Member Data Documentation

◆ CommType

int CommType

Read Write Property: Type of communications.

◆ HardwareVersionInfo

str HardwareVersionInfo

Read Write Property: Device information: hardware version.

◆ Information

str Information

Read Write Property: Device information: information.

◆ ModelBindingRoot

FBModel ModelBindingRoot

Component: Root of model currently binded model hierarchy.

◆ ModelTemplate

FBModelTemplate ModelTemplate

Component: Root of model template structure.

◆ Online

bool Online

Read Write Property: Is online?

◆ RecordingStartTime

FBTime RecordingStartTime

Read Only Property: The time at which the recording started.

◆ RecordingStopTime

FBTime RecordingStopTime

Read Only Property: The time at which the recording stopped.

◆ SamplingMode

FBDeviceSamplingMode SamplingMode

Read Write Property: Mode to use to record device.

◆ SamplingPeriod

FBTime SamplingPeriod

Read Write Property: Set this to how many times a device is to be evaluated in one second. There is no theoretical maximum value but practically you should consider scene complexity, system resources, network speed, etc. If set to 0: the device is evaluated on the sync signal. When the sync occurs; the device is scheduled to be evaluated. If you do not set, the sampling period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA).

◆ Status

str Status

Read Write Property: Device information: status.
