Mesh class. More...

#include <pyfbsdk_generated.h>

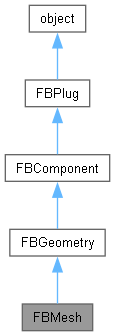

Inheritance diagram for FBMesh:

[legend]

Public Member Functions
	FBMesh (str pName)
	Constructor.

	ComputeVertexNormals (bool pCW=False)
	Compute Mesh Vertex Normal.

	InverseNormal ()
	Inverse Normal.

bool	IsTriangleMesh ()
	Determines if the mesh is composed entirely of triangles.

int	PolygonBegin (int pMaterialId=0)
	Begin Polygon definition.

int	PolygonCount ()
	Get number of polygons in mesh.

int	PolygonEnd ()
	End Polygon definition.

bool	PolygonListAdd (int pPolygonSize, int pIndexArraySize, int pIndexArray, int pMaterialId=0)
	Add Polygon List Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

int	PolygonMaterialIdGet (int pIndex=-1)
	Get a Material ID for the given Polygon index.

bool	PolygonVertexAdd (int pVertex)
	Add a vertex.

list	PolygonVertexArrayGet (int pArraySize)
	Get the array of polygon vertex (i.e.

int	PolygonVertexCount (int pPolygonIndex)
	Get Polygon vertex count.

int	PolygonVertexIndex (int pPolygonIndex, int pVertexPolygonIndex)
	Get global (for the mesh) index of a vertex from a polygon.

bool	TriangleListAdd (int pIndexArraySize, int pIndexArray, int pMaterialId=0)
	Add Triangle List, Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

bool	TriangleStripAdd (int pIndexArraySize, int pIndexArray, int pMaterialId=0)
	Add Triangle Strip Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

Public Member Functions inherited from FBGeometry
bool	GeometryBegin ()
	Begin geometry editing.

bool	GeometryEnd ()
	End geometry editing.

FBNormal	GetBinormalsDirectArray (int pOutArrayCount)
	Get a pointer to the direct array of binormals.

int	GetBinormalsIndexArray (int pOutArrayCount)
	Get a pointer to the index array of binormals.

int	GetMaterialIndexArray (int pOutArrayCount)
	Get a pointer to the index array of Material.

FBNormal	GetNormalsDirectArray (int pOutArrayCount)
	Get a pointer to the direct array of normals.

int	GetNormalsIndexArray (int pOutArrayCount)
	Get a pointer to the index array of normals.

FBVertex	GetPositionsArray (int pOutArrayCount)
	Get a pointer to the position array.

FBNormal	GetTangentsDirectArray (int pOutArrayCount)
	Get a pointer to the direct array of tangents.

int	GetTangentsIndexArray (int pOutArrayCount)
	Get a pointer to the index array of tangents.

FBUV	GetUVSetDirectArray (int pOutArrayCount, str pUVSetName=None)
	Get a pointer to the direct array of UVset Modify array value will be only effective when geometry editing is enabled.

int	GetUVSetIndexArray (int pOutArrayCount, str pUVSetName=None)
	Get a pointer to the index array of UVset.

FBGeometryMappingMode	GetUVSetMappingMode (str pUVSetName=None)
	Get UVSet mapping mode.

FBGeometryReferenceMode	GetUVSetReferenceMode (str pUVSetName=None)
	Get UVSet reference mode.

FBStringList	GetUVSets ()
	Get available UVSet name.

FBColorF	GetVertexColorsDirectArray (int pOutArrayCount)
	Get a pointer to the direct array of vertex color.

int	GetVertexColorsIndexArray (int pOutArrayCount)
	Get a pointer to the index array of vertex color.

int	ShapeAdd (str pName)
	Add new shape.

	ShapeClearAll ()
	Clears all the shapes.

int	ShapeGetCount ()
	Get Shape Count.

str	ShapeGetName (int pShapeIdx)
	Return the shape Name.

	ShapeInit (int pShapeIdx, int pDiffSize, bool pWithNormal=False)
	Init the shape.

bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, FBVertex pPosDiff)
	Set the differentiate point.

bool	ShapeSetDiffPoint (int pShapeIdx, int pDiffIndex, int pOriIndex, FBVertex pPosDiff, FBNormal pNormalDiff)
	Set the differentiate point.

int	VertexAdd (FBVertex pVertex)
	Add a vertex.

int	VertexAdd (FBVertex pVertex, FBNormal pNormal)
	Add a vertex.

int	VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV)
	Add a vertex.

int	VertexAdd (FBVertex pVertex, FBNormal pNormal, FBUV pUV, FBColorF pVertexColor)
	Add a vertex.

int	VertexAdd (float px, float py, float pz)
	Add a vertex.

int	VertexAdd (float px, float py, float pz, float nx, float ny, float nz)
	Begin geometry editing.

int	VertexAdd (float px, float py, float pz, float nx, float ny, float nz, float UVu, float UVv)
	Begin geometry editing.

int	VertexAdd (float px, float py, float pz, float nx, float ny, float nz, float UVu, float UVv, float pRed, float pGreen, float pBlue, float pAlpha)
	Begin geometry editing.

bool	VertexArrayClear ()
	Clear all geometry vertex arrays.

bool	VertexArrayInit (int pVertexcount, bool pUniqueMaterial, unsigned int pFBGeometryArrayIDs=0)
	Init geometry vertex arrays.

bool	VertexClear ()
	Clear all Vertex arrays.

FBColorF	VertexColorGet (int pIndex=-1)
	Get a Vertex Color.

bool	VertexColorSet (FBColorF pColor, int pIndex=-1)
	Set a Vertex Color.

bool	VertexColorSet (float pRed, float pGreen, float pBlue, float pAlpha, int pIndex=-1)
	Set a UV coordinate.

int	VertexCount ()
	Get the number of vertices in the geometry.

FBVertex	VertexGet (int pIndex)
	Get a vertex.

bool	VertexGetSelected (int pIndex)
	Get the selected state of a vertex.

bool	VertexGetTransformable (int pIndex)
	Get the Transformable state of a vertex.

bool	VertexGetVisible (int pIndex)
	Get the visible state of a vertex.

	VertexInit (int pSize, bool pResize, bool pInitUV=True, bool pInitVertexColor=False)
	Resize or Reserve vertex, normal and UV array for performance.

FBNormal	VertexNormalGet (int pIndex=-1)
	Get a normal at a vertex.

bool	VertexNormalSet (FBNormal pVertex, int pIndex=-1)
	Set a normal at a vertex.

bool	VertexNormalSet (float px, float py, float pz, int pIndex=-1)
	Set a normal at a vertex.

bool	VertexSet (FBVertex pVertex, int pIndex=-1)
	Set a vertex.

bool	VertexSet (float px, float py, float pz, int pIndex=-1)
	Set a vertex.

bool	VertexSetSelected (int pIndex, bool pState)
	Set the selected state of a vertex.

bool	VertexSetVisible (int pIndex, bool pState)
	Set the visible state of a vertex.

FBUV	VertexUVGet (int pIndex=-1)
	Get a UV coordinate.

bool	VertexUVSet (FBUV pUV, int pIndex=-1)
	Set a UV coordinate.

bool	VertexUVSet (float pU, float pV, int pIndex=-1)
	Set a UV coordinate.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Additional Inherited Members
Public Attributes inherited from FBGeometry
FBGeometryMappingMode	BinormalMappingMode
	Read Only Property: Binormal mapping mode.

FBGeometryReferenceMode	BinormalReferenceMode
	Read Only Property: Binormal reference mode.

FBGeometryMappingMode	MaterialMappingMode
	Read Property: Material mapping mode.

FBGeometryMappingMode	NormalMappingMode
	Read Only Property: Normal mapping mode.

FBGeometryReferenceMode	NormalReferenceMode
	Read Only Property: Normal reference mode.

FBGeometryMappingMode	TangentMappingMode
	Read Only Property: Tangent mapping mode.

FBGeometryReferenceMode	TangentReferenceMode
	Read Only Property: Tangent reference mode.

FBGeometryMappingMode	VertexColorMappingMode
	Read Only Property: Vertex Color mapping mode.

FBGeometryReferenceMode	VertexColorReferenceMode
	Read Only Property: Vertex Color reference mode.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

Mesh class.

See samples: GeometryInstancing.py, VertexArrayManipulation.py, VertexColor.py.

Constructor & Destructor Documentation

◆ FBMesh()

FBMesh ( str pName )

Constructor.

Parameters

pName Name of Mesh.

Member Function Documentation

◆ ComputeVertexNormals()

ComputeVertexNormals ( bool pCW = False )

Compute Mesh Vertex Normal.

Parameters

pCW	True for clock wise normal, otherwise for counter-clock wise

◆ InverseNormal()

InverseNormal ( )

Inverse Normal.

◆ IsTriangleMesh()

bool IsTriangleMesh ( )

Determines if the mesh is composed entirely of triangles.

Returns: true if all polygons are triangles, false otherwise

◆ PolygonBegin()

int PolygonBegin ( int pMaterialId = 0 )

Begin Polygon definition.

Parameters

pMaterialId Index of material for this polygon. Only effective when MaterialMappingMode is kFBGeometryMapping_BY_POLYGON mode.

Returns: Number of existing polygons in Mesh

◆ PolygonCount()

int PolygonCount ( )

Get number of polygons in mesh.

Returns: Number of polygons in mesh.

◆ PolygonEnd()

int PolygonEnd ( )

End Polygon definition.

Clean up and associate vertices internally.

Returns: Current number of polygons.

Note: MoBu expect each polygon to contain at least 3 vertices, the behavior is undefined if user add less than 3 vertices polygon.

◆ PolygonListAdd()

bool PolygonListAdd	(	int	pPolygonSize,
		int	pIndexArraySize,
		int	pIndexArray,
		int	pMaterialId = `0`
	)

Add Polygon List Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

Parameters

pPolygonSize	Size of polygon, 3 mean triangle, 4 for quadrilateral, and so on. minimum input value is 3.
pIndexArraySize	Size of pIndexArray, Added polygon count is floor(max(pIndexArraySize, 0) / pPolygonSize)
pIndexArray	Index array of triangle strip.
pMaterialId	Index of material for this polygon. Only effective when MaterialMappingMode is kFBGeometryMapping_BY_POLYGON mode.

Note: The indexes' value in input pIndexArray won't be validated, and the behavior is undefined if out of range.

◆ PolygonMaterialIdGet()

int PolygonMaterialIdGet ( int pIndex = -1 )

Get a Material ID for the given Polygon index.

Parameters

pIndex Polygon's index to get material ID at (default=-1).

Returns: ID of material of vertex at pIndex.

◆ PolygonVertexAdd()

bool PolygonVertexAdd ( int pVertex )

Add a vertex.

Parameters

pVertex Index in mesh of vertex to add to polygon, must be in range of [0, ControlPointCount)

Returns: true if successful.

◆ PolygonVertexArrayGet()

list PolygonVertexArrayGet ( int pArraySize )

Get the array of polygon vertex (i.e.

index to control points). This array is a concatenation of the list of polygon vertices of all the polygons. Example: a mesh made of 2 triangles [1,2,3] and [2,3,4] results in [1,2,3,2,3,4]. The first polygon starts at position 0 and the second at position 3.

Parameters

pArraySize Polygon vertex array size.

Returns: Readonly polygon vertex array.

◆ PolygonVertexCount()

int PolygonVertexCount ( int pPolygonIndex )

Get Polygon vertex count.

Parameters

pPolygonIndex Index of polygon to get vertex count from.

Returns: Number of vertices in polygon at pPolygonIndex.

◆ PolygonVertexIndex()

int PolygonVertexIndex	(	int	pPolygonIndex,
		int	pVertexPolygonIndex
	)

Get global (for the mesh) index of a vertex from a polygon.

Parameters

pPolygonIndex	Index of polygon in question.
pVertexPolygonIndex	Polygon vertex index.

Returns: Index in mesh of vertex.

◆ TriangleListAdd()

bool TriangleListAdd	(	int	pIndexArraySize,
		int	pIndexArray,
		int	pMaterialId = `0`
	)

Add Triangle List, Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

Parameters

pIndexArraySize	Size of pIndexArray, Added triangle count is floor(max(pIndexArraySize, 0) / 3)
pIndexArray	Index array of triangle list.
pMaterialId	Index of material for this polygon. Only effective when MaterialMappingMode is kFBGeometryMapping_BY_POLYGON mode.

Note: The indexes' value in input pIndexArray won't be validated, and the behavior is undefined if out of range.

◆ TriangleStripAdd()

bool TriangleStripAdd	(	int	pIndexArraySize,
		int	pIndexArray,
		int	pMaterialId = `0`
	)

Add Triangle Strip Must be called in-between FBGeometry::GeometryBegin() / GeometryEnd() It's user's responsibility to make sure to input valid index values, otherwise afterwards behavior will be undefined.

Parameters

pIndexArraySize	Size of pIndexArray, Added triangle count is max(pIndexArraySize - 2, 0)
pIndexArray	Index array of triangle strip.
pMaterialId	Index of material for this polygon. Only effective when MaterialMappingMode is kFBGeometryMapping_BY_POLYGON mode.

Note: The indexes' value in input pIndexArray won't be validated, and the behavior is undefined if out of range.

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FBMesh()

Member Function Documentation

◆ ComputeVertexNormals()

◆ InverseNormal()

◆ IsTriangleMesh()

◆ PolygonBegin()

◆ PolygonCount()

◆ PolygonEnd()

◆ PolygonListAdd()

◆ PolygonMaterialIdGet()

◆ PolygonVertexAdd()

◆ PolygonVertexArrayGet()

◆ PolygonVertexCount()

◆ PolygonVertexIndex()

◆ TriangleListAdd()

◆ TriangleStripAdd()
