FBVisualContainer Class Reference

Used to create a container for a tool UI. More...

#include <pyfbsdk_generated.h>

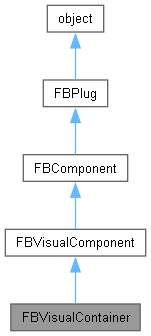

Inheritance diagram for FBVisualContainer:

Public Member Functions
	FBVisualContainer ()
	Constructor.
int	GetSelection ()
	Get the selected item.
bool	ItemIconSet (kReference pRef, FBImage pImage, bool pUseACopyOfTheImage=True)
	Set an item's icon.
bool	ItemIconSet (kReference pRef, str pFilename)
	Set an item's icon.
bool	ItemNameEdit (kReference pRef)
	Edit a container item.
Public Member Functions inherited from FBVisualComponent
	FBVisualComponent ()
	Constructor.
bool	AddChild (FBVisualComponent pChild, int pId=0)
	Add a child component.
FBVisualComponent	GetChild (int pId=0)
	Get a child component.
QWidget	GetQWidgetAddress ()
	Get internal QWidget.
bool	IsView ()
	Is component a view?
	Refresh (bool pNow=False)
	Refresh component.
	ViewExpose ()
	Exposed view callback function.
	ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
	Input callback function.
Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.
str	ClassName ()
	Get the class name.
	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
bool	FBCreate ()
	Open Reality Creation function.
	FBDelete ()
	Open Reality deletion function.
	FBDestroy ()
	Open Reality destruction function.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.
	HardSelect ()
	HardSelect.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
bool	Is (int pTypeId)
	Returns true if object is of type TypeId.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.
int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.
FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.
	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.
	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBIconPosition	IconPosition
	Read Write Property: Where the icon is positioned for the items.
int	ItemHeight
	Read Write Property: Item height.
int	ItemIndex
	Read Write Property: Current item selected.
int	ItemWidth
	Read Write Property: Item width.
bool	ItemWrap
	Read Write Property: Are items wrapped when enough space is available?
FBStringList	Items
	List: Names of items in container.
FBEvent	OnChange
	Event: Container contents changed.
FBEvent	OnDblClick
	Event: Double click.
FBEvent	OnDragAndDrop
	Event: Drag and Drop event.
FBOrientation	Orientation
	Read Write Property: Orientation of container.
Public Attributes inherited from FBVisualComponent
str	Caption
	Property: Widget caption.
bool	Enabled
	Read Write Property: Is visual enabled?
int	Height
	Read Write Property: Height.
str	Hint
	Read Write Property: Hint to show.
int	Left
	Read Write Property: Left coordinate.
bool	ReadOnly
	Read Write Property: Is visual component read only?
int	Top
	Read Write Property: Top coordinate.
bool	Visible
	Read Write Property: Is visual component visible?
int	Width
	Read Write Property: Width.
Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.
str	LongName
	Read Write Property: Name and namespace for object.
str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.
FBListComponent	Parents
	List: Parents.
FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
bool	Selected
	Read Write Property: Selected property.
int	TypeInfo
	Contains the Type information of the object.
Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.
int	TypeInfo
	TypeInfo.

Detailed Description

Used to create a container for a tool UI.

See samples: Container.py, PropertyDrop.py, TutorialBox.py.

Constructor & Destructor Documentation

FBVisualContainer()

FBVisualContainer

(

)

Constructor.

Member Function Documentation

GetSelection()

int GetSelection

(

)

Get the selected item.

Returns

Index of current selection.

ItemIconSet() [1/2]

bool ItemIconSet	(	kReference	pRef,
		FBImage	pImage,
		bool	pUseACopyOfTheImage = True
	)

Set an item's icon.

Parameters

pRef	Reference to item in container.
pImage	Handle to image to use.
pUseACopyOfTheImage	Create a copy of the image?(default=true)

Returns

Operation was successful (true or false).

ItemIconSet() [2/2]

bool ItemIconSet	(	kReference	pRef,
		str	pFilename
	)

Set an item's icon.

Parameters

pRef	Reference to item in container.
pFilename	Name of file where image is located.

Returns

Operation was successful (true or false).

ItemNameEdit()

bool ItemNameEdit

(

kReference

pRef

)

Edit a container item.

Parameters

pRef	Reference of container to edit.

Returns

Operation was successful (true or false).

Member Data Documentation

IconPosition

FBIconPosition IconPosition

Read Write Property: Where the icon is positioned for the items.

ItemHeight

int ItemHeight

Read Write Property: Item height.

ItemIndex

int ItemIndex

Read Write Property: Current item selected.

Items

FBStringList Items

List: Names of items in container.

ItemWidth

int ItemWidth

Read Write Property: Item width.

ItemWrap

bool ItemWrap

Read Write Property: Are items wrapped when enough space is available?

OnChange

FBEvent OnChange

Event: Container contents changed.

OnDblClick

FBEvent OnDblClick

Event: Double click.

OnDragAndDrop

FBEvent OnDragAndDrop

Event: Drag and Drop event.

Orientation

FBOrientation Orientation

Read Write Property: Orientation of container.
