Color Balance Rendering Effect

The Color Balance Effect allows you to manipulate additive/subtractive color tinting through independent control of RGB channels.

• Default menu: Rendering menu > Effects > Environment and Effects dialog > Effects panel > Add > Add Effect dialog > Color Balance
• Alt menu: Rendering menu > Environment and Effects > Environment and Exposure Settings > Environment and Effects dialog > Effects panel > Add > Add Effect dialog > Color Balance

Above: Color balance effect used to correct the color cast.

Below: Original rendering has a yellow cast.

Interface

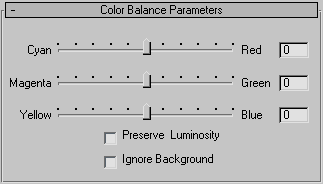

The Color Balance Parameters rollout contains the following parameters:

Cyan/Red

Adjusts the red channel.

Magenta/Green

Adjusts the green channel.

Yellow/Blue

Adjusts the blue channel.

Preserve Luminosity

When on, retains the luminosity of the image while correcting the color.

Ignore Background

When on, allows you to image correct a model without affecting the background.
