Create a Constraint

When enforced motion loads are applied as displacements, Inventor Nastran In-CAD requires that a constraint is applied in the direction of the displacement load. To create this constraint load:

1. Click Constraints .

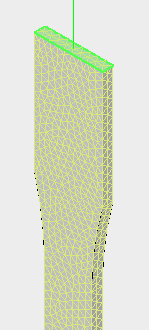

2. Select the top surface of the coupon with the applied displacement load (face <1>).



3. Make sure only the Ty component check box is enabled.

4. Click OK.
