To Review Analysis Results

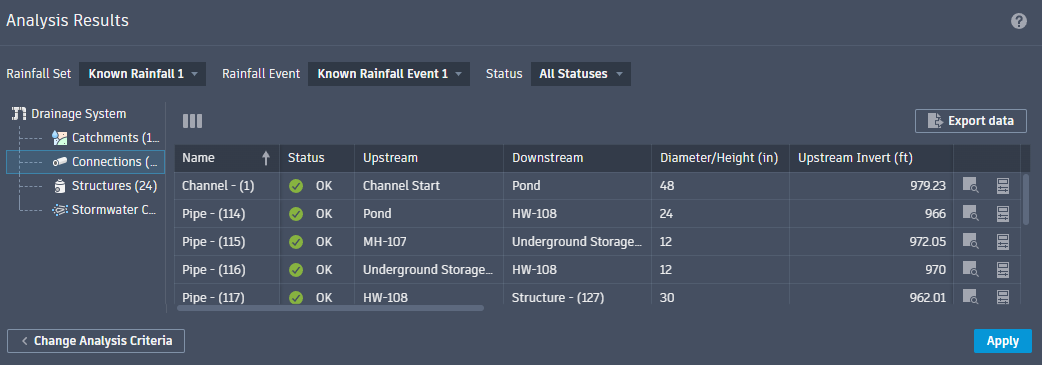

When your system analysis is complete, the result are reported at the system level, and as object categories: Inflows, Pipes, Structures, and Stormwater.

Refer to the Analysis Results dialog box section for more detailed information about each object category and their unique results.

To Adjust How You View the Data

Filter. Use the Status filter at the top of the page to isolate objects with specific statuses. This filter is available for the Pipes, Structures, and Stormwater pages. The filter defaults to All.

Show/Hide Columns. To narrow the kind of data shown, click Columns. You can specify what available columns of data are displayed on the current analysis page.

To Review and Modify your Drainage System

Much like the initial system check for errors and warnings, you can step through individual objects in your drainage system and adjust for potential problematic issues. Each category has its own unique analysis data and status warnings. Step through any requiring attention and use the following tools for correction:

Zoom to Object . Use the Zoom to Object tool to locate the object and correct any drawing issues such as connections, location, object type, sizes, and elevation.

Drainage Object Properties . Use the Object Properties dialog boxes to update any parameter issues for the object.
