To Export Analysis Results

Use the Export data tool to save your analysis result data as a *.xlsx file.

At the top right of the Analysis Results page, click export Export data.

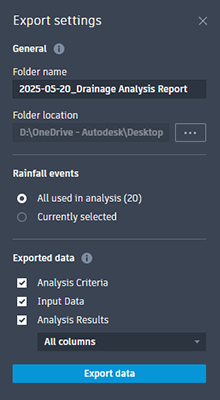

The Export settings panel opens.

analysis results export settings

Under General, specify a folder name and location for the exported files.
Under Rainfall events, select which rainfall events to be exported with the analysis data. Each event will create a new *xlsx file.
- All used in analysis will export every rainfall event used by the analysis. The total number of rainfall events is shown in parentheses.
- Currently selected will export the Rainfall Event specified at the top of Analysis Results.
Under Exported data, specify what data to include in the exported results. This data appears as sheets in the created *.xlsx file.
- Analysis Criteria includes rainfall analysis criteria used for the analysis: Rqainfall Type, Rainfall Set, Rainfall Event, Duration, and Run time.
- Input Data includes all Time Area Runoff data in the analysis.
- Analysis Results includes all results:
  - Drainage System Results (totals)
  - Connection Results
  - Catchment Results
  - Structure Results
  - Stormwater Control Results

Click Export data to generate the files.
