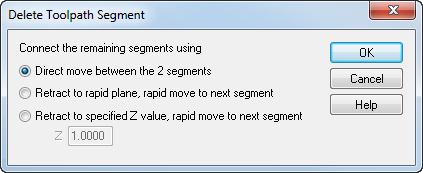

To display the
Delete Toolpath Segment dialog, click
Delete segment
on the
Toolpaths tab of the
Milling Feature Properties dialog.
When you delete a toolpath segment, you must select how to connect the remaining segments from these options:
- Direct move between the 2 segments
- Retract to rapid plane, rapid move to next segment
- Retract to specified Z value, rapid move to next segment, and enter a Z value
