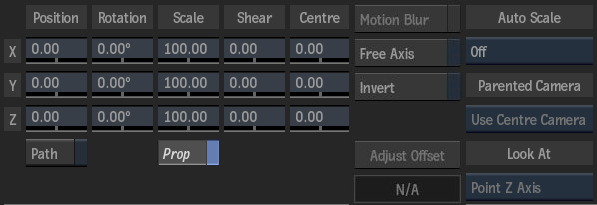

Axis Menu Settings

When accessing Action as a Timeline FX, you have access to some of these Axis settings in the Timeline FX ribbon. To see the full Axis menu, click Editor to enter Action in the Effects environment.

X Position field

Displays the position of the X axis.

Y Position field

Displays the position of the Y axis.

Z Position field

Displays the position of the Z axis.

Motion Path

Enable to animate the position of the axis using a spline drawn in the scene. Disable to animate the position of the axis using explicit animation.

X Rotation field

Displays the rotation of the X axis.

Y Rotation field

Displays the rotation of the Y axis.

Z Rotation field

Displays the rotation of the Z axis.

X Scale field

Displays the scale of the X axis.

Y Scale field

Displays the scale of the Y axis.

Z Scale field

Displays the scale of the Z axis.

Proportional

Enable to change the fields proportionally.

X Shear field

Displays the shear of the X axis.

Y Shear field

Displays the shear of the Y axis.

Z Shear field

Displays the shear of the Z axis.

X Centre field

Displays the centre of the X axis.

Y Centre field

Displays the centre of the Y axis.

Z Centre field

Displays the centre of the Z axis.

Motion Blur

Enable to use a motion blur effect for the selected axis (can only be used once the global Motion Blur is enabled in the Setup menu).

Free Axis

Enable to ignore transformations from parent axes.

Invert

Enable to invert numerical Axis menu settings. This does not affect settings of nodes connected to the Axis.

Adjust Offset

Enable to set the current frame as a reference frame that has no transformation data.

Reference Frame field

Displays the frame number of the reference frame that has no transformation data.

Autoscale option option

Select whether to autoscale when Position settings are changed relative to the camera (On Position Changes), or when Position, Rotation, Shear, or Centre settings are changed (On All Transforms).

Select:	To:
Off	Not use autoscaling on the image.
On Position Changes	Preserve the projected size of the image by automatically scaling when changing any Position parameters that affect the depth of the image relative to the camera.
On All Transforms	Preserve the projected size of the image by automatically changing Position, Scale, and Centre parameters (when any Position, Rotation, Shear, or Centre parameters are changed).

Parented Camera option

Select which camera is used for the parenting offset when the immediate parent is a stereo camera. Choose left, right, or centre camera. Active only when there is exactly one parent that is a stereo camera, or if a look-at connection is attached between the axis and the stereo camera.

Point Axis option

Select which axis is pointed to the attached look-at object. Available only when objects are attached with a Look At connection.

See Applying Look-At Connections.

Tracking Mode option

Select the tracking mode.

Enter Tracker

Click to open the Tracker menu to apply tracking data for the selected tracking mode.

Rotation

Enable to apply rotation data to the track.

Skew

Enable to apply skew data to the track.

Scale

Enable to apply scale data to the track.

Perspective

Enable to apply perspective data to the track.

Camera option

Specify which camera to take into account when tracking or viewing in Action Object view (F8).

Use Media field

Displays the number of the media associated with the analysis. To track the Back media, select 0.

Tracking View option

When the media associated to the analysis is a Source node, select to track the media in the Source Front, Source Matte, or Source Result view.

Media FX

Enable to take into account blur and colour correct settings from the Action Media list in the analysis.

Note: Specific Planar Tracking settings are the same whether you access them from the Axis, Perspective Grid, or GMask node. See Planar Tracking Settings.

Shape Reference

Enable to display an overlay of the reference frame when tracking in Object view (F8).

Shape Current

Enable to display an overlay of the current frame when tracking in Object view (F8).
