You can get visual feedback about some parameters on Standard labels. If you select these parameters a small graphic is displayed.
The graphic is updated during replay of the simulation to give feedback on the state of the network object.
The parameters available are:
- Reservoir - Percentage Full. A graphic displays the state of the reservoir with an arrow to show if it is currently filling or emptying
- Pumping Station - Pump State. An icon is displayed for each pump in the pumping station. Red means the pump is off, green means it is on.
- Valve - Opening. The valve
can be
- green - fully open
- red - fully closed
- grey - partially open

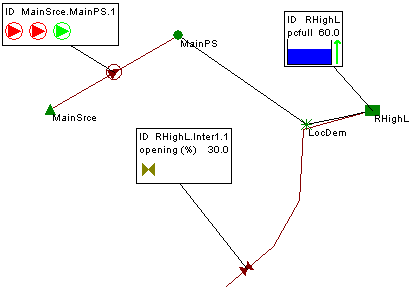

These are illustrated on the image below.
Graphical Labels
