This window displays warnings data for all of the warnings that occurred for objects in the simulation currently displayed on the Baseline page. The window is displayed at the bottom of the Baseline page beneath the Map view.
The display of results in the window can be restricted to a selection of objects by choosing an option from the
(Selection list for results display) dropdown on the
Results toolbar. The options are:
- All assets - results for all network assets will be displayed in the details window.
- List - results for objects in the chosen selection list will be displayed in the details window. When this option is chosen, a list of all available selection lists will be displayed.
- Visible in map - results for network assets currently displayed in the Map view will be displayed in the details window.
- Selected in map - results for network assets currently selected in the Map view will be displayed in the details window.
The window is displayed by doing one of the following:
- Clicking the Details tab at the bottom of the Baseline page.
- Selecting Windows | Results | Details.
- Clicking the
(Details) tool of the
Baseline Results toolbar.
To view a summary of warnings per object, see the Summary window.
To sort the items in the grid, right click in the column to be sorted and select Sort Ascending or Sort Descending from the context menu.
To zoom to and highlight an object on the Map view, right click in the object row and select Select and find on map from the context menu.

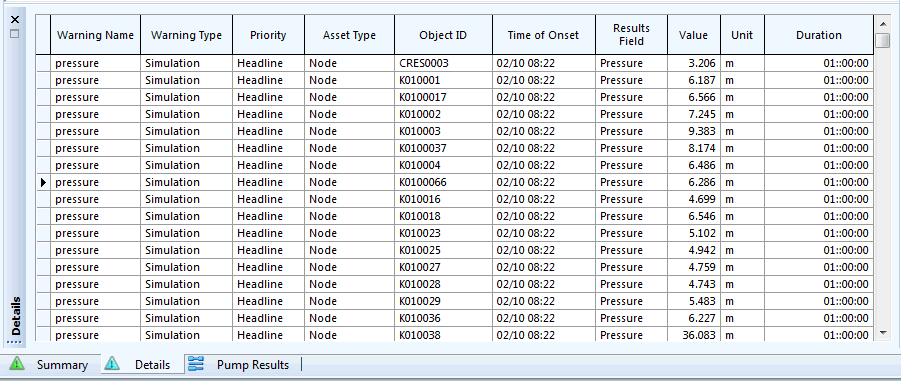

The fields in the warning details window are as follows:
| Field | Description |
|---|---|
| Warning Name |
The name of the warning, identifying the type of event occurring in the network, e.g. critical pressure. Warning names are specified in the Warning Template set up in InfoWorks WS Pro. |
|
Warning Type |
Type of the warning (Simulation or Verification). |
| Priority | Priority of the warning, either Background, Important or Headline |
| Asset Type | The type of object that the warning applies to, e.g. reservoir, pump station |
|
Asset ID / Object ID /User Text |
The object identifier, as set up in the Administrator mode. Configuration of asset display names is implemented in the Configure Display Rules dialog. Display names can be one of the following (combinations are allowed): Asset ID / Object ID /User Text If the object does not have an Asset ID, the Object ID will be displayed instead. |
| Time of Onset | Simulation time at which the event that triggered the warning first started |
| Value Causing Warning |
Value of the measured criteria of the event that has triggered the warning |
| Duration Causing Warning |
Applicable to duration warnings Duration of the event that has triggered the warning |
It is possible to export warning detail results by using the Results Export Window.
