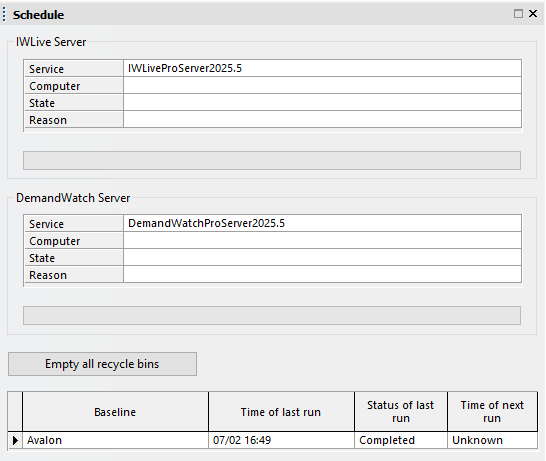

The Schedule window displays details of the current server(s) and a grid of the most recent projection run for each baseline (Headlines page) or the selected baseline (Zones page). The window is displayed on the left side of the Headlines page, and in the Zones page.
To display the window, click the Schedule tab on the left of the Headlines / Zones page, or select Window | Schedule.
To view a summary of the total number of warnings per object that occurred during the simulation, see the Summary window.
All fields in the window are read only:
| Field | Description |
|---|---|
| IWLive Server |
IWLive Server details:
|
|
Empty all recycle bins |
Click the Empty all recycle bins button to delete all runs with Status set to Marked for deletion for all the baselines in the database. The status of a run can be set in the Run Admin window. Tip: It is possible to delete all the runs marked for deletion for the current baseline only by using the
Empty bin button of the
Run Admin Window.
Please note that in addition to this, the server will perform automated emptying of recycle bins as specified by the Configure Clean Up dialog, which is accessible from the Configuration menu. |
| Baseline grid |
List of baselines and projection run details:
Tip:
In the case of the Zones page, the Schedule window shows only the most recent projection run for the currently selected baseline. This is why only that baseline name will appear in the Baseline column. Right click the grid view to display a context menu allowing the following operations to be carried out on the grid:
|
