Dynamic Geometry Attributes: Node Attributes

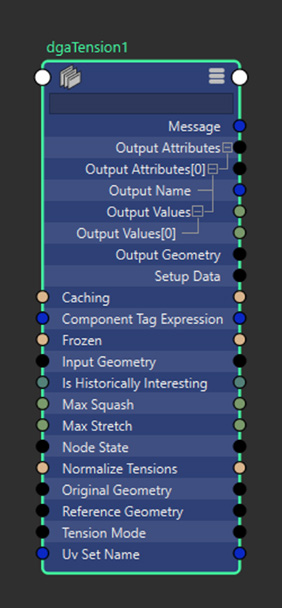

dgaTension Node

Dynamic Geometry Attributes

Input Geometry:The geometry being analyzed for tension calculations. Must match the topology of the Original Geometry to ensure accurate vertex-to-vertex comparisons.

Reference Geometry: Optional geometry to compare against when calculating tension. If not connected, the Original Geometry will be used as the reference. Must match the topology of the Original Geometry.

Original Geometry: Non-deforming base geometry, used similarly to a deformer's Original Geometry. Provides the topology data needed for tension calculations and serves as the reference if Reference Geometry is not connected.

Tension Calculation

Normalize Tensions: When enabled, tension outputs are clamped and scaled to a [0, 1] range based on the Max Stretch and Max Squash values. This provides consistent output ranges regardless of mesh scale or deformation intensity.

Max Stretch:Maximum stretch value for clamping and normalization. Values are clamped to this limit even if normalization is disabled. Minimum value of 1 represents a 1:1 ratio (no stretch). Output values are clamped and normalized to this value minus 1.

Max Squash: Maximum compression value for clamping and normalization. Values are clamped to this limit even if normalization is disabled. Minimum value of 1 represents a 1:1 ratio (no squash). Output values are normalized to this value minus 1.

UV Set Name: Specifies the UV set to use for UV directional tension calculations. If left blank, the current active UV set is used. Only applicable when using UV-based calculation methods.

Component Tag Expression: Expression for defining a subset of components to process. Works similarly to component tags in deformers. When processing subsets, outputs are generated as sparse arrays containing data only for the specified components.

Output Data

Output Attributes:

• Edge Mode:
  • [0] Squash: Overall squash values per vertex showing how much attached edge lengths have shrunk compared to reference geometry.
  • [1] Stretch: Overall stretch values per vertex showing how much attached edge lengths have expanded compared to reference geometry.
• UV Mode:
  • [0] Squash U: Squash in the U-component direction based on UV mapping.
  • [1] Squash V: Squash in the V-component direction based on UV mapping.
  • [2] Stretch U: Stretch in the U-component direction based on UV mapping.
  • [3] Stretch V: Stretch in the V-component direction based on UV mapping.

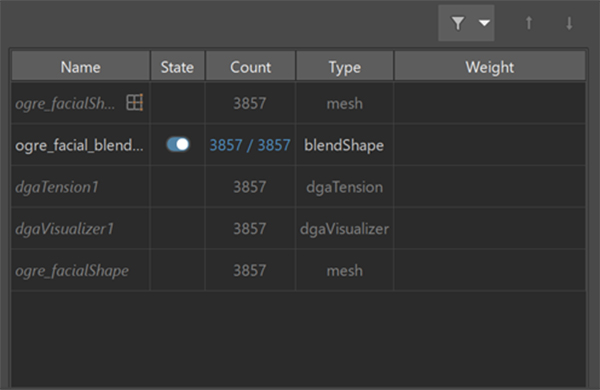

Output Geometry: Passthrough of the unchanged input geometry, provided for convenience in node graph connections. When connected, the tension node appears in the output mesh node's Deformation table.

dgaDelta Node

Dynamic Geometry Attributes

Input Geometry: The geometry being analyzed for delta calculations. Must match the topology of the Original Geometry for accurate vertex-to-vertex comparisons.

Reference Geometry: Optional geometry to compare against when calculating deltas. If not connected, the Original Geometry is used for comparison. Must match the topology of the Original Geometry.

Original Geometry: Non-deforming base geometry providing topology data for calculations. Used as the reference geometry if Reference Geometry is not connected.

Delta Calculation

Normalize Output: When enabled, delta outputs are clamped and scaled to a [0, 1] range based on the Normalization Min and Max values.

Normalization Min: Minimum value for clamping and normalization. Only applicable when normalization is enabled.

Normalization Max: Maximum value for clamping and normalization. Only applicable when normalization is enabled.

Component Tag Expression: Expression for defining a subset of components to process. Works similarly to component tags in deformers. When processing subsets, outputs are generated as sparse arrays containing data only for the specified components.

Output Data

Output Attributes: Array of calculated output attributes with compound data containing names and per-vertex values. Contents depend on the calculation mode:

• Position Mode:
  • [0] PositionDelta: Overall magnitude of each vertex's positional change in object space (always positive).
  • [1] PositionDeltaX: Positional change in the X direction (may be positive or negative).
  • [2] PositionDeltaY: Positional change in the Y direction (may be positive or negative).
  • [3] PositionDeltaZ: Positional change in the Z direction (may be positive or negative).
• Normal Mode:
  • [0] Normal: Change in vertex normal direction, measured in degrees (ranges from 0 to 180 when not normalized).

Output Geometry: Passthrough of the unchanged input geometry for node graph convenience. When connected, the delta node appears in the output mesh node's Deformation table.

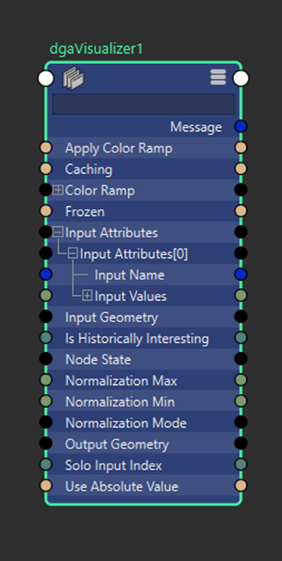

dgaVisualizer Node

Dynamic Geometry Attributes Visualization

Input Attributes: Dynamic Geometry Attributes data to visualize. Connects directly to Output Attributes from DGA calculation nodes, enabling easy switching between different attribute visualizations.

Solo Input Index: Index of the input attribute to visualize. For example, when connected to edge tension data, index 0 visualizes squash and index 1 visualizes stretch.

Use Absolute Value: When enabled, visualization uses absolute values of incoming data, displaying negative values as if they were positive.

Visualization Controls

Normalization Mode: Controls how incoming data is normalized for color mapping:

• Static: Normalizes input to a 0-1 scale using provided min and max values, clamping anything outside that range for consistent visualization.
• Dynamic: Uses current data min and max values for normalization with no clamping, but color scale varies as data changes.

Normalization Min: Minimum expected value in point data, used for static normalization mode.

Normalization Max: Maximum expected value in point data, used for static normalization mode.

Apply Color Ramp: Boolean control determining whether point data maps to the color ramp (true) or displays as greyscale (false).

Color Ramp: Color gradient used to map data values when Apply Color Ramp is enabled.

Output

Output Geometry: Copy of input geometry with vertex colors applied to the active color set based on point data and visualization settings. Colors must be enabled in the mesh's display colors attribute to be visible.

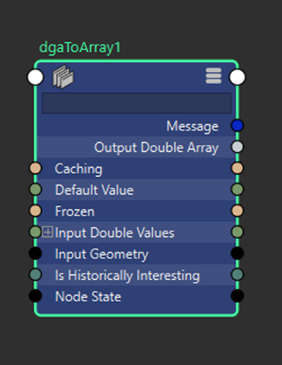

dgaToArray Node

Arnold Integration

Input Geometry: Geometry that the data applies to, determining the size of the output array.

Input Double Values: Sparse array of Dynamic Geometry Attributes data to be converted to Arnold-compatible format.

Default Value: Double value used to fill missing data when point data doesn't cover the full vertex count, ensuring complete arrays for Arnold.

Output

Output Double Array: Converted point data containing one value per vertex of the input geometry. Missing values from sparse input are filled with the default value.
