Visualization examples of the simulation results
Results may be visualized in Simulation Utility or third-party tools like Paraview.
To view the results, import the CASE files.
Jump to:
Temperature result examples

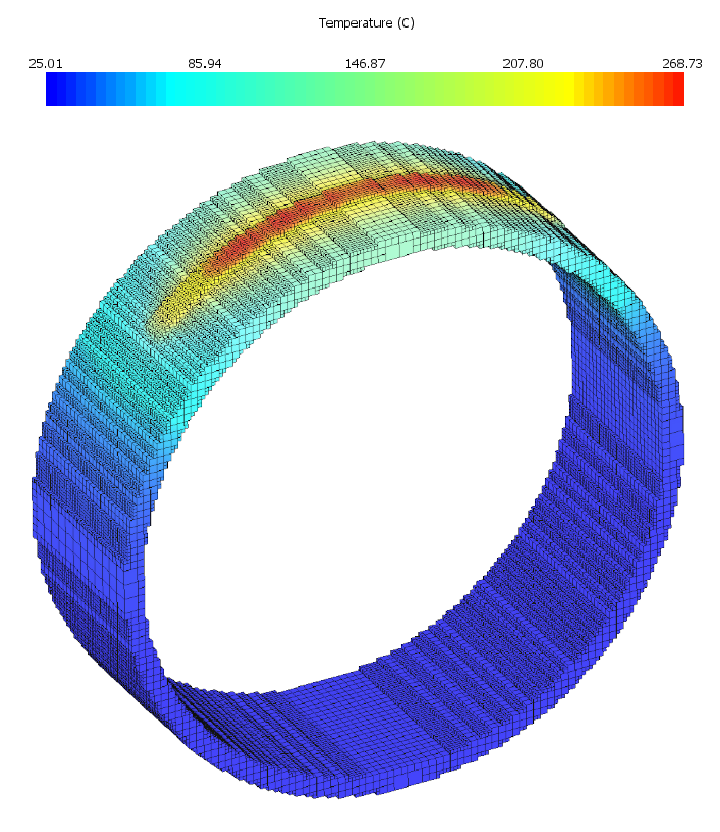

Temperature results (°C) at increment #1

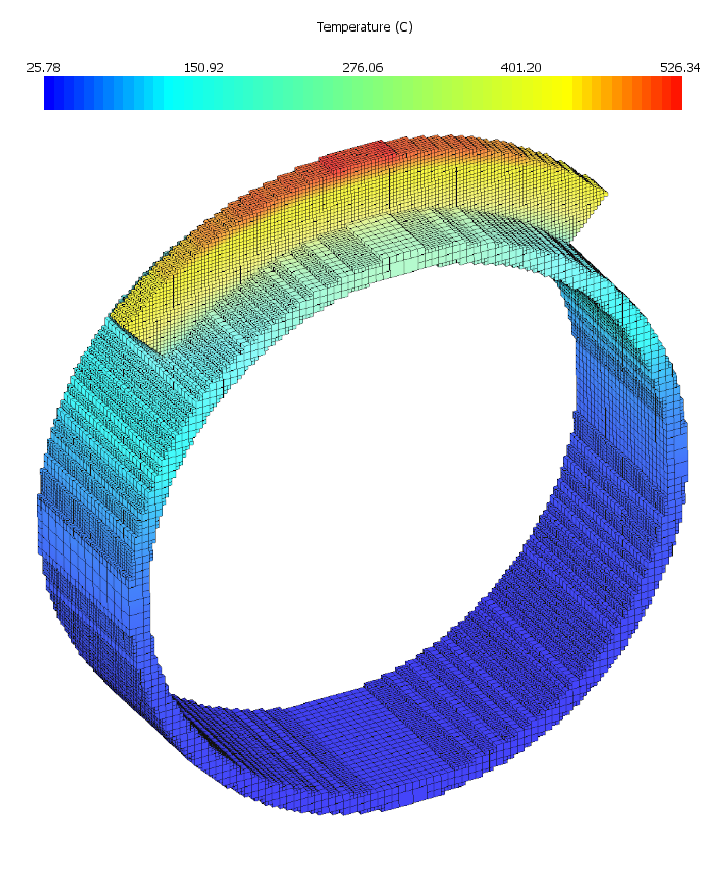

Temperature result (°C) at increment #28
Displacement result examples

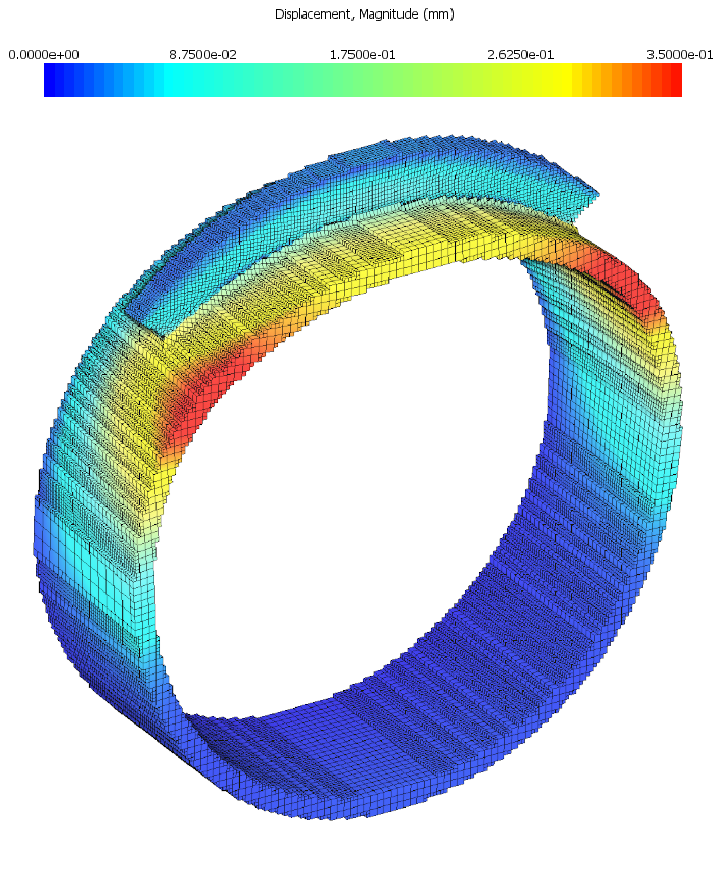

Displacement result (mm) at sample increment #28 during deposition

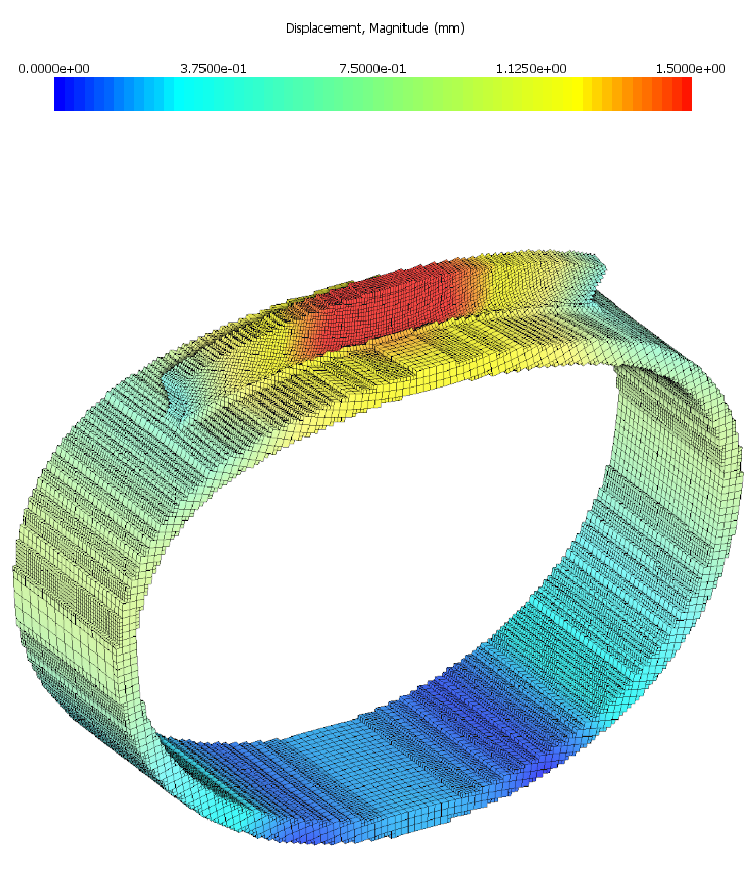

Displacement result (mm) at sample increment #31, after release of the *FISR spring constraints
