Pores of 1u octahedra in face-centered cubic packing with pores of matching tetrahedra. Offset by u/2 in Z, this forms the octet-truss structure.
Jump to:
Topology extract

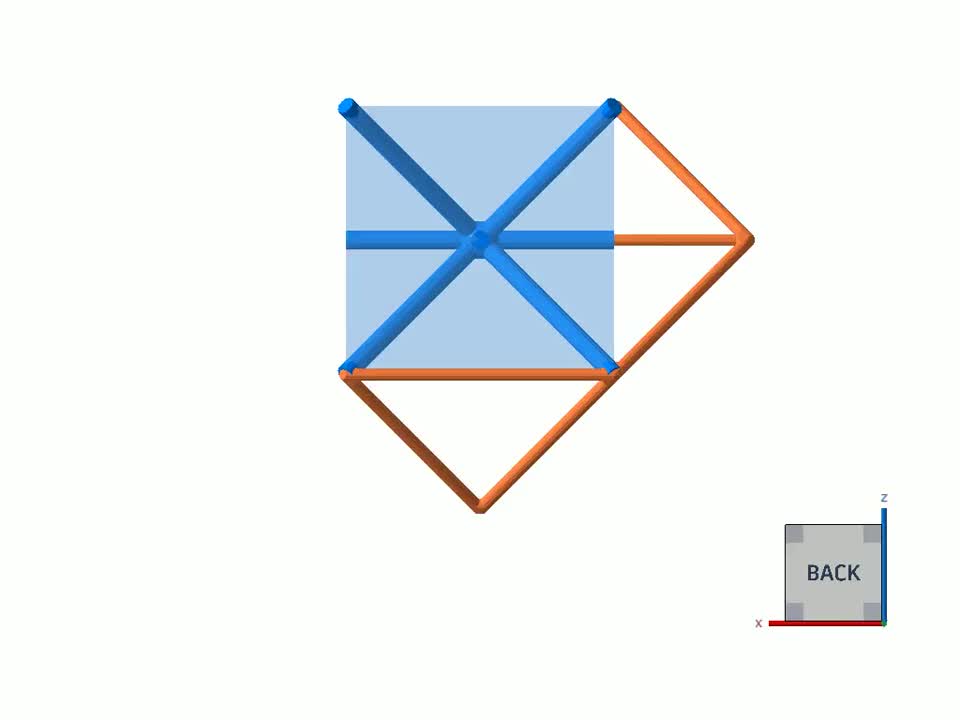

The Tetra topology with a selection of close neighboring bars
Video Player is loading.
Key
- Solid blue: Topology
- Solid orange: Neighboring bars
- Transparent blue: Unit cell
Topology extract, alternative version
A different set of neighboring bars to highlight the octet-truss nature
Video Player is loading.
Key
- Solid blue: Topology
- Solid orange: Neighboring bars
- Transparent blue: Unit cell
