This unit cell topology is similar to Hexagon, except that the angles are adjusted so that the cross sectional projection forms exactly regular hexagons.
This topology uses two additional layers in the vertical, each with a different offset of unit cell topology, to be in phase again with the origin cell. For clarity, these are not shown in the animation.
Video Player is loading.

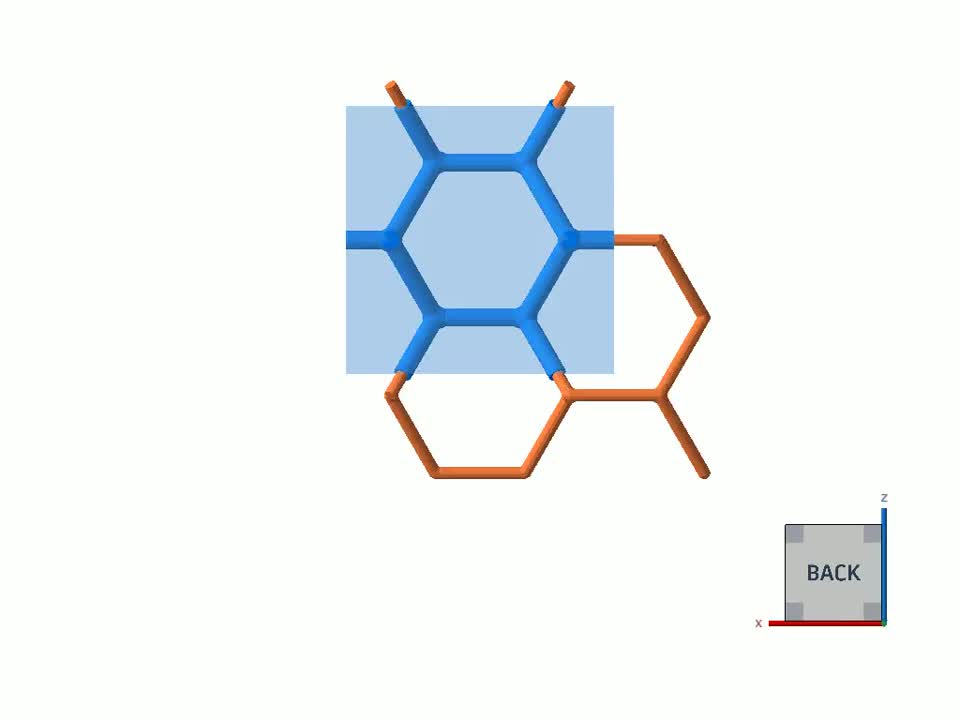

Key
- Solid blue: Topology
- Solid orange: Neighboring bars
- Transparent blue: Unit cell
