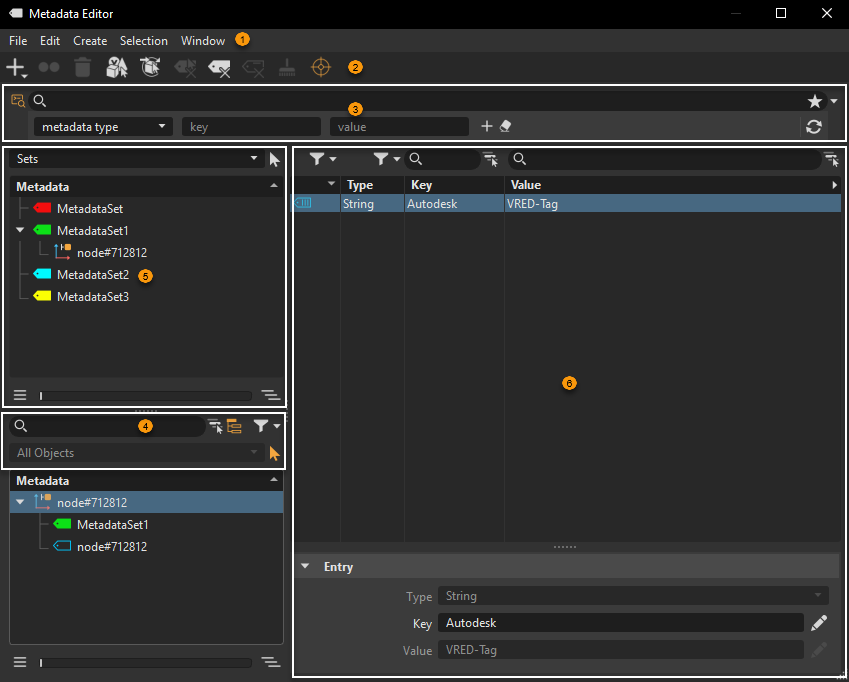

Metadata Editor

File

• Load Metadata Sets - Opens an Explorer window for loading CATIA, DGN, Inventor, IGES, JT, NX, CREO, SolidEdge, SolidWorks, STEP, and PLMXML metadata. Locate a .json file containing metadata sets, then click Open to load them into your current project.

  • If multiple sets with the same name are loaded, VRED adds a trailing number to the end of the name to make it unique.

  • Empty sets are not loaded.

  • Reloading any X-Rite, Substance, or Substance panorama material will detach (unassign) all currently assigned metadata sets from the material and assign all included metadata from the reloaded X-Rite, Substance, or Substance panorama file.

• Save Metadata Sets - Saves the selected objects or metadata sets to a .json file for future use. Once a location is selected, click Save.

Edit

• Rename (Ctrl+R) - Renames the selected set or entry.

• Copy (Ctrl+C) - Copies selected sets and/or entries to the clipboard.

• Paste (Ctrl+V) - Pastes all content from the clipboard to the selected object.

• Duplicate (Ctrl+D) - Creates a duplicate of the selected sets.

• Delete (Del) - Deletes the selected sets or entries.

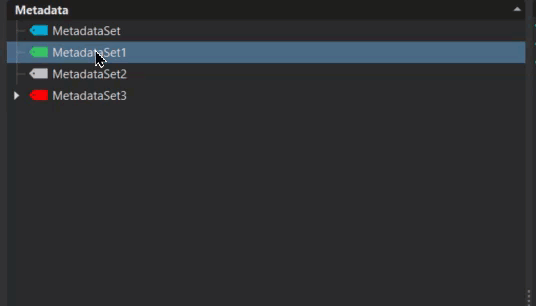

• Lock - Locks the selection, so it cannot be modified. The selection is greyed out and a lock icon is added to its icon.



• Unlock - Unlocks the locked set or entry, so it can be modified. The selection is no longer greyed out and a lock icon is removed from the icon.

• Assign Sets To - Assigns the selected sets to the chosen assignment option. Choose from your last selection, or any selected nodes, materials, cameras, lights, or sceneplates.

• Remove Selected Assignment - Removes your selection from its assigned parent.



• Remove All Assignments - Removes your selection from all geometry assignments.

• Delete All Entries - Deletes all entries from the selection.

Create

• Create Set - Creates a set, adding it to the selected object.

• Create Entry - Creates an entry, adding it to the selected object.

Selection

• All Editors - Selects all objects in all editors assigned to the selected set or entry.

• Scenegraph - Selects the nodes in the Scenegraph assigned to the selected set or entry.

• Material Editor - Selects any materials in the Material Editor assigned to the selected set or entry.

• Camera Editor - Selects any cameras in the Camera Editor assigned the selected set or entry.

• Light Editor - Selects any lights in the Light Editor assigned to the selected set or entry.

• Sceneplate Editor - Selects any sceneplates in the Sceneplate Editor assigned to the selected set or entry.

• Select All - Selects everything in the editor.

• Deselect All - Deselects everything in the editor.

• Invert Selection - Selects everything that wasn't selected in the editor.

Window

• Focus Mode - Displays in the table, all metadata of the currently focused list. When displaying dual lists and this is enabled, the last active is highlighted and all metadata elements for that list are displayed, regardless of any selection. When disabled, the table displays only the content of the current selection.



There are two search modes, basic and advanced. The advanced search is Python script-based and widget-based.

Basic Search

For a basic search, enter a search term in the search field. Its list updates to display only entries that contain the search term. Click the X to clear the search. For more precise search results, use the following tools:

• Selected Hierarchy - Restricts the search to a selected hierarchy. It searches the selected branch for nodes containing the search string. You can also use the shortcut, Ctrl + F (Find) to set the search bar in focus, where you can enter a string, and click Enter, enabling and searching the selected branch only for content matching the string.

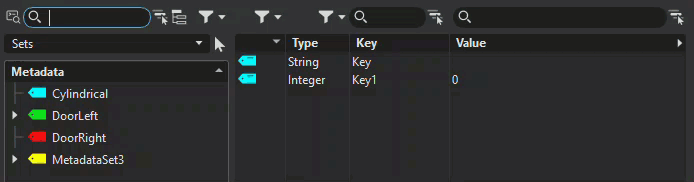

• Search Depth - Toggles between flat and recursive matching. When disabled, only top-level matches appear. When enabled, matches deeper in the hierarchy appear.



• Filter - Toggles filtering on and off. When the displayed content is filtered, changes to .

• Filter Selection - Opens the Filter Selection menu for configuring the filter settings, when is pressed. Choose from:

  • Select All - Enables all the filter settings (Locked, Unlocked, Asset, and Unassigned).
  • None - Deselects all filter settings (Locked, Unlocked, Asset, and Unassigned).
  • Invert Selection - Selects all unselected filter settings and deselects all selected settings.
  • Locked - Displays all locked metadata sets in the list. Use in combination with other filters to further refine your search.
  • Unocked - Displays all unlocked metadata sets in the list. Use in combination with other filters to further refine your search.
  • Asset - Displays all asset metadata sets in the list. Use in combination with other filters to further refine your search.
  • Unassigned - Displays all unassigned metadata sets in the list. Use in combination with other filters to further refine your search.

Advanced Search

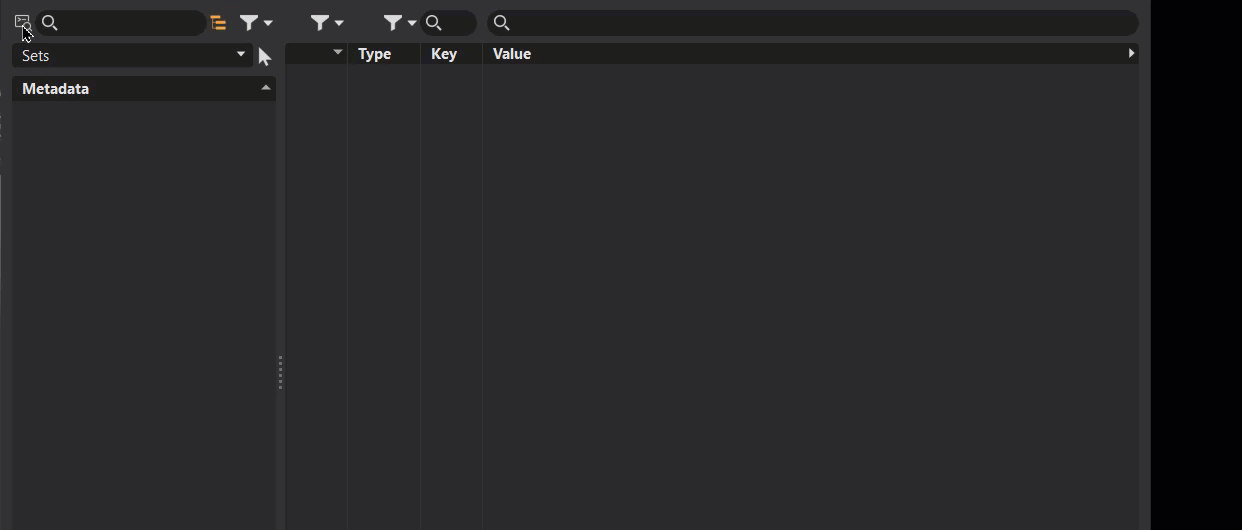

For an advanced search, click . This clears any search terms from a basic search and exposes a field for entering Python script-based and widget-based search queries.

See Advanced Searches for detailed information on the interface and performing advanced searches.

Lists

If a material has a tag assigned to it, or content in the Scenegraph, Camera Editor, Light Editor, or Sceneplate Editor have elements with metadata sets assigned, they appear in the Metadata Editor. Use to select the type of content listed. Choose from the following:

• Sets - Lists all metadata sets existing in the scene. The table displays all set entries, regardless of whether a set or its assigned objects are selected.

• Scenegraph, Material Editor, Camera Editor, Light Editor, Sceneplate Editor, and All Objects - Lists all objects of the scene where metadata sets and/or direct entries are assigned. The table displays entries determined by the selection, be it set entries, object entries, or all assigned entries when an object itself is selected.

Selection Filter - Enables the last section when toggled on. Objects on which the last selection was executed in the viewport or other modules are listed in the list below.

Use the List Tree and its options to add metadata and custom values to a node, like you do with the Node Attribute Editor. Here is a list of List Tree-specific icons. All others are used in various editors and a list of them can be found in Node Icons.

Icons in Use	Identified
	Object-level Entry that is directly assigned to an object (Perspective Camera).
	Object-level Entry that is directly assigned to an object (Spherical Light).
	Object-level Entry that is directly assigned to an object (Material Asset, Material Switch, and Environment Asset).
	Object-level Entry that is directly assigned to an object (Group Node or Geometry Node).
	Set with a custom color, Asset Set representing content in the Asset Manager, and a Set.

• For information on the list tree slider and its tools, see Slider.

• For hiding or exposing a second graph, see Split Tree in the Tree View section.

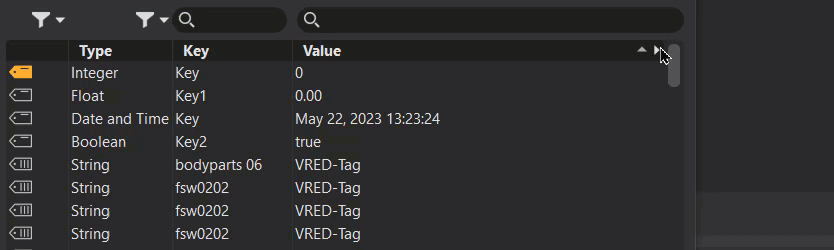

Use this table to quickly find content, using search and filtering options.

There are The following five columns. They can be added, removed, repositioned, or resized. Use to access the menu for adding or removing columns. Click for filtering menus. Note that some columns can be filtered, while others can be searched.

• Icon - Displays the following icons, which indicate a tag or entry and where is resides. These can be custom colored.

  • is a tag on object, for example a scene tag.
  • is an entry on object.
  • is a tag inside set.
  • is an entry inside set.

• Assignment - Lists the set or object where entries are assigned, such as a material name or node.

• Type - Indicates the type of metadata entry, such as a string or integer.

• Key - Lists the chosen names of the metadata keys, such as a description.

• Value - Lists the defined metadata value of its type, such as a VRED-Tag.

Displaying and Hiding Table Columns

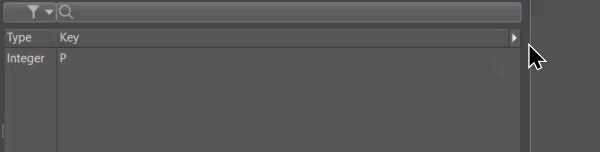

To the right of the table column names is . Click it to access a menu with a column list. Check an option to display the column and uncheck one to hide it.

Column Filtering

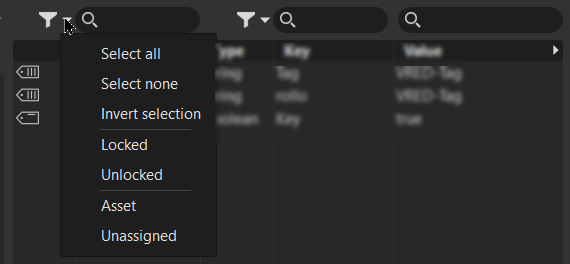

For columns that can be filtered, click to access a menu of options specific to that column.

When the displayed content is filtered, changes to .

These options are common to both the Icon and Type columns.

• Select All - Enables all the filter settings, such as Locked, Unlocked, Asset, and Unassigned or String, Float, Date, etc.
• None - Deselects all filter settings, such as Locked, Unlocked, Asset, and Unassigned or String, Float, Date, etc.
• Invert Selection - Selects all unselected filter settings and deselects all selected settings.

These options are specific to the Icon column and can be used in combination with other filters to further refine your search:

• Locked - Displays all locked metadata sets in the graph.
• Unocked - Displays all unlocked metadata sets in the graph.
• Asset - Displays all asset metadata sets in the graph.
• Unassigned - Displays all unassigned metadata sets in the graph.

Selecting options specific to the Type column will display all metadata sets of that type. Therefore, if String is selected, only metadata sets with an assigned string type are displayed.

Column Searching

Enter simple search term in the field for the Assignment, Key, and Value columns. When the column is displaying search results, the changes to .

To clear a search, either click the x next to the search term or delete the content in the search field.

Create - Creates a set or entry.

Duplicate Set - Creates a duplicate of the selected sets.

Delete Set - Deletes the selected set.

Select All Objects - Selects everything with the assigned metadata in the Scenegraph.

Assign Sets To - Assigns the selected sets to the chosen assignment, such as your last selection, or any selected nodes, materials, cameras, lights, or sceneplates.

Remove Selected Sets - Removes only the selected sets from their current object.

Remove All Set - Removes all the sets from the selected object.

Delete All Entries - Deletes all entries from the selection.

Delete All Unassigned Sets - Deletes all sets not assigned to an object.

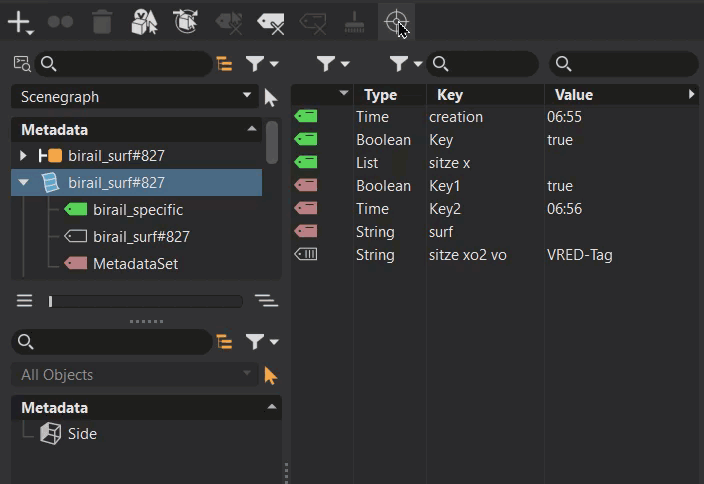

Focus Mode - Displays, in the table beside, the content of the list currently in focus. When enabled and displaying dual lists, the last active list is highlighted and all metadata elements in that list are displayed, regardless of any selection in the focused list. When disabled, the table displays only the content of the current selection.
