A scenario is a presentation package featuring all or part of a model. Create a scenario and share it in the cloud. Viewers ditch scenarios to the InfraWorks 360 web viewer or the InfraWorks 360 iPad app.
Share a scenario in the cloud by defining it in the Scenario Editor and syncing (regenerating) its model or proposal.
Scenario creator or members of a group sharing its model control who may view it:
- Within the group, by syncing a shared model.
- Invited viewers outside the group, by sending an invitation.
- Public, where "public" means anyone with Autodesk 360 privileges and the InfraWorks 360 iPad app.

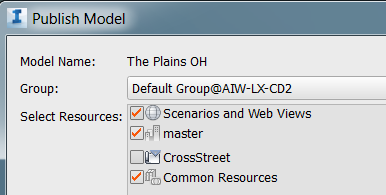

Controlling when to publish or update (sync) a scenario
Scenarios and Storyboards
A scenario may be as simple as a single snapshot or as large as the entire model. If the entire model, viewers navigate it on their own. Or, create a scenario composed of a series of snapshots or storyboards. Storyboards take viewers on a visually sophisticated tour of interesting parts of the model.
Scenario creation workflow:
- Open the model, switch to the relevant proposal (or create a new proposal).
Optionally, create a storyboard in a separate workflow before defining a scenario.
- Open the Scenario Browser, located with Presentation tools:
. - Open the Scenario Editor by adding a new scenario or selecting an existing one.
- Define the scenario in the Editor, including adding storyboards, if any.
- Sync the model.
- Check the status of scenario generation in the Scenario Browser.
- View the scenario in the Web Browser or with the iPad app.
- Invite someone to view the scenario from the Scenario Browser or from Manage On-line Scenarios (InfraWorks 360 Home).
Autodesk InfraWorks users and other stakeholders can use Design Feed to view and comment on a scenario. To view a scenario in the InfraWorks Mobile App and To comment using Design Feed.
