To define and publish a scenario by syncing it with its model

Create a new scenario, name it and define its area of interest. After defining a scenario, sync it with its model.

First, you define a scenario from its asset card and the scenario editor. Then you publish it or update changes to the scenario when you include it in a sync of the model that contains it. Sharing a scenario makes it available for viewing with the InfraWorks 360 iPad app or InfraWorks 360 web viewer.

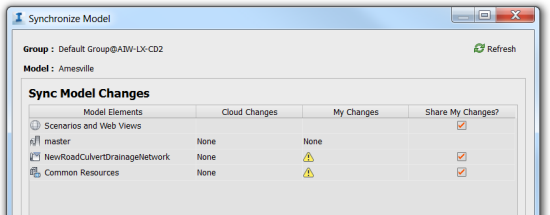

You include a scenario in a sync by selecting the Share My Changes checkbox for Scenarios and Web Views on the Synchronise Model panel. See also To synchronise models.

To Open the Scenario Editor:

1. Open the model; work in the master or switch the view to a proposal. Scenario definition requires setting the Area of Interest in the target proposal or model.
2. Click to open the Scenario Browser.
3. Click to open the Scenario Editor for a new scenario.

   Double-click an existing scenario to open it in the Editor.

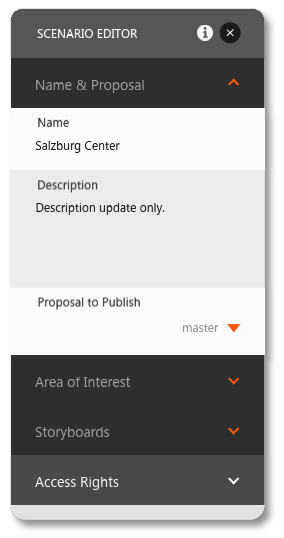

To Define a scenario:

Click inside a section of the Scenario Editor to expand it.

Supply two required values and optional ones to complete the definition: Two Required Values: Name the scenario and select the master or proposal to publish. Outline the Area of Interest. Optional Values: Description, Storyboards to include, if any, Access Rights (default: group only.) Click to sync the model. InfraWorks 360 starts to re-generate the model, attaching the scenario to it. The Scenario Browser reports the status of scenario generation.

Note: To include content in Tooltips in models and scenarios, the content must be available on the web. For example, if you link to an image, document, or video, that item must be available from the web. This is true also for tooltips related to features, captions and points of interest.
