A character is the link between a motion source and a character model. More...

#include <pyfbsdk_generated.h>

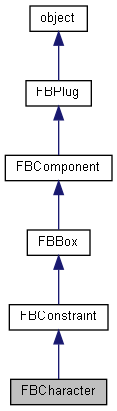

Inheritance diagram for FBCharacter:

[legend]

Public Member Functions
	FBCharacter (str pName)
	Constructor. More...

	AddCharacterExtension (FBCharacterExtension pExt)
	AddCharacterExtension. More...

FBCharacter	Clone ()
	Clone the character. More...

	ConnectControlRig (FBControlSet pControlSet, bool pUpdateLimit, bool pResetHierarchy)
	Connect a Control-Rig to the character. More...

	CopyAnimation ()
	Copy the animation from the input character to us. More...

bool	CreateAuxiliary (FBEffectorId pEffectorId, bool pPivot, float pAuxReachT=100, float pAuxReachR=100)
	Create auxiliary on effector. More...

bool	CreateCharacterMarkerSet (bool pSetActive)
	Create the Character Marker Set. More...

bool	CreateControlRig (bool pSetFKIK)
	Create the Control-Rig. More...

	CycleAnalysisCurrentCharacter ()
	Run Cycle Analysis on current character. More...

	DisconnectControlRig ()
	Disconnect the Control-Rig from the character. More...

	FBDelete ()
	Actual Character destructor. More...

	GetActiveBodyPart (bool pActivePart)
	Get the active body part array. More...

FBCharacterMarkerSet	GetCharacterMarkerSet (bool pForce=False)
	Obtain Input CharacterMarkerSet. More...

bool	GetCharacterize ()
	Get Characterize flag. More...

str	GetCharacterizeError ()
	Get error message for the previous SetCharacterizeOn operation. More...

FBModel	GetCtrlRigModel (FBBodyNodeId pBodyNodeId)
	Get the model associated with each body part in the Control Rig of the character. More...

FBControlSet	GetCurrentControlSet (bool pForce=False)
	Obtain Input ControlSet. More...

FBCycleAnalysisNode	GetCycleAnalysisNode ()
	Get the Cycle Analysis Node from the current character. More...

FBModel	GetEffectorModel (FBEffectorId pEffectorId, FBEffectorSetID pEffectorSetID=FBEffectorSetDefault)
	Get the model associated with each effector in the Control Rig of the character. More...

FBCharacterSolver	GetExternalSolver ()
	Get a pointer to the external solver of a character, or NULL is no external solver is used on the character. More...

FBVisibilityState	GetFKVisibility ()
	Get the FK visibility state. More...

FBModel	GetFloorContactModel (FBFloorContactID pMemberIndex)
	Get the model associated with the floor contact ID. More...

FBModel	GetGoalModel (FBBodyNodeId pBodyNodeId)
	Get the goal model associated with each body part in the Character Marker Set of the character. More...

FBVisibilityState	GetIKVisibility ()
	Get the IK visibility state. More...

FBBodyNodeId	GetIndexByModel (FBModel pModel)
	Get the index associated with Given Model. More...

FBModel	GetModel (FBBodyNodeId pBodyNodeId)
	Get the model associated with each body part of the character. More...

	GetParentROffset (FBBodyNodeId pBodyNodeId, FBRVector pRVector)

	GetROffset (FBBodyNodeId pBodyNodeId, FBRVector pRVector)

	GetSOffset (FBBodyNodeId pBodyNodeId, FBSVector pSVector)

FBVisibilityState	GetSkeletonVisibility ()
	Get the skeleton visibility state. More...

	GetSkinModelList (FBModelList pSkinModelList)
	Get the skin model associated with character bones. More...

	GetTOffset (FBBodyNodeId pBodyNodeId, FBTVector pTVector)

	GetTransformOffset (FBBodyNodeId pBodyNodeId, FBMatrix pOffsetMatrix)

	GoToStancePose (bool pPushUndo=False, bool pIncludeCharacterExtensions=True)
	Set the character in stance pose. More...

bool	IsParentNodeOffset (FBBodyNodeId pNodeId)
	Check if there is an offset on Parent. More...

bool	IsRotationPin (FBEffectorId pEffectorIndex)
	Return true if the object is Pinned in Rotation (Manipulation). More...

bool	IsTranslationPin (FBEffectorId pEffectorIndex)
	Return true if the object is Pinned in Translation (Manipulation). More...

bool	PlotAnimation (FBCharacterPlotWhere pPlotWhere, FBPlotOptions pPlotOptions)
	Plot the animation of the character. More...

bool	ReadyForRetarget ()
	Test if character is ready for the Retarget operation (basically, is it in character input ?). More...

	RemoveCharacterExtension (FBCharacterExtension pExt)
	Get the model associated with each body part of the character. More...

	ResetProperties (FBCharacterResetProperties pType)
	Reset the properties of the character. More...

	Retarget (bool pOnBaseLayer)
	Retarget the animation from the input character to us. More...

	SelectModels (bool pSelect, bool pApplyToCharacter, bool pApplyToRig, bool pApplyToExtensions)
	Select the objects that make a character. More...

	SetCharacterizeOff ()
	Set Characterize flag off. More...

bool	SetCharacterizeOn (bool pSetAsBiped)
	Set the Characterize flag on. More...

	SetExternalSolver (int pIndex)
	Set character external solver. More...

	SetExternalSolver (FBCharacterSolver pSolver)
	Set character solver. More...

bool	SetFKVisibility (bool pState)
	Set the FK visibility state. More...

bool	SetIKVisibility (bool pState)
	Set the IK visibility state. More...

bool	SetRotationPin (FBEffectorId pEffectorIndex, bool pValue)
	Set the object Pinned in Rotation (Manipulation) status. More...

bool	SetSkeletonVisibility (bool pState)
	Set the skeleton visibility state. More...

bool	SetTranslationPin (FBEffectorId pEffectorIndex, bool pValue)
	Set the object Pinned in Translation (Manipulation) status. More...

Public Member Functions inherited from FBConstraint
	FBConstraint (str pName)
	Constructor. More...

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
	Animation Node Creations (IN). More...

FBAnimationNode	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT). More...

FBConstraint	Clone ()
	Clone the constraint. More...

bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint. More...

bool	DeformerUnBind (FBModel pModel)

bool	Disable (FBModel pModel)
	Disable constraint on pModel. More...

	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state. More...

	FreezeSuggested ()
	Suggest 'freeze'. More...

bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group. More...

FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference. More...

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group. More...

int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references. More...

int	ReferenceGroupGetCount ()
	Return the number of reference groups. More...

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question. More...

str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group. More...

bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex. More...

	RemoveAllAnimationNodes ()
	Remove animation nodes. More...

	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel. More...

	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel. More...

	SetupAllAnimationNodes ()
	Setup animation nodes. More...

	SnapSuggested ()
	Suggest 'snap'. More...

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor. More...

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node. More...

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box. More...

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data? More...

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'. More...

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'. More...

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index. More...

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box. More...

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index. More...

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box. More...

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor. More...

str	ClassName ()
	Get the class name. More...

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags. More...

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags. More...

bool	FBCreate ()
	Open Reality Creation function. More...

	FBDelete ()
	Open Reality deletion function. More...

	FBDestroy ()
	Open Reality destruction function. More...

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated). More...

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled. More...

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object. More...

	HardSelect ()
	HardSelect. More...

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled. More...

bool	Is (int pTypeId)
	Returns true if object is of type TypeId. More...

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace. More...

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager. More...

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property. More...

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading. More...

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager. More...

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags. More...

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status. More...

Public Attributes
bool	ActiveInput
	Read Write Property: Is the character input active? More...

FBListCharacterExtension	CharacterExtensions
	List: Character Extensions in the character. More...

FBCharacterContactBehaviour	ContactBehaviour
	Read Write Property: Contact Behavior selection. More...

FBAnimatableDouble	FKFingerMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges. More...

FBAnimatableDouble	FKFingerTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges. More...

FBAnimatableDouble	FKThumbTipMultiplier
	Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges. More...

FBCharacterHipsTranslationMode	HipsTranslationMode
	Read Write Property: Hips Translation Mode. More...

FBAnimatableBool	HumanFingerLimits
	Read Write Property: Enables/Disables human finger limits during actor solve. More...

FBActor	InputActor
	Read Write Property: The index of the actor used for the input. More...

FBCharacter	InputCharacter
	Read Write Property: The index of the character used for the input. More...

FBCharacterInputType	InputType
	Read Write Property: The input type for the character (ex: Actor). More...

bool	InverseLeftElbow
	Read Write Property: Is left elbow inverted. More...

bool	InverseLeftKnee
	Read Write Property: Is left knee inverted. More...

bool	InverseRightElbow
	Read Write Property: Is right elbow inverted. More...

bool	InverseRightKnee
	Read Write Property: Is right knee inverted. More...

FBCharacterKeyingMode	KeyingMode
	Read Write Property: The current keying mode. More...

bool	LeftElbowKillPitch
	Read Write Property: is Pitch used for Left elbow. More...

FBAnimatableDouble	LeftHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	LeftHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

bool	LeftKneeKillPitch
	Read Write Property: is Pitch used for Left knee. More...

bool	LockX
	Read Write Property: Lock character skeleton in place on X axis. More...

bool	LockY
	Read Write Property: Lock character skeleton in place on Y axis. More...

bool	LockZ
	Read Write Property: Lock character skeleton in place on Z axis. More...

bool	MirrorMode
	Read Write Property: is in mirror mode. More...

bool	RightElbowKillPitch
	Read Write Property: is Pitch used for Right elbow. More...

FBAnimatableDouble	RightHandIndexIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandIndexMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandIndexPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandIndexRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandMiddleIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandMiddleMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandMiddlePinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandMiddleRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandPinkyIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandPinkyMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandPinkyPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandPinkyRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandRingIndex
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandRingMiddle
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandRingPinky
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

FBAnimatableDouble	RightHandRingRing
	Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs. More...

bool	RightKneeKillPitch
	Read Write Property: is Pitch used for Right knee. More...

FBCharacterRollSolver	RollSolver
	Read Write Property: Roll Solver selection. More...

FBAnimatableDouble	ShoulderCorrection
	Read Write Property: shoulder correction values. More...

bool	SyncMode
	Read Write Property: is character in sync mode. More...

bool	WriteReference
	Read Write Property: are we writing back on reference. More...

Public Attributes inherited from FBConstraint
bool	Active
	Read Write Property: Active state. More...

bool	Deformer
	Read Write Property: Is a deformer constraint? More...

str	Description
	Read Write Property: Long description of constraint. More...

bool	HasLayout
	Read Write Property: Does the constraint have a layout? More...

bool	Lock
	Read Write Property: Lock state. More...

FBAction	Snap
	Function Property: Snap constraint. More...

FBAnimatableDouble	Weight
	Read Write Property: Weight of constraint. More...

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable. More...

bool	Live
	Read Write Property: Is live? More...

bool	RecordMode
	Read Write Property: Is recording? More...

str	UniqueName
	internal Unique name. More...

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components. More...

str	LongName
	Read Write Property: Name and namespace for object. More...

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py. More...

FBListComponent	Parents
	List: Parents. More...

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

bool	Selected
	Read Write Property: Selected property. More...

int	TypeInfo
	Contains the Type information of the object. More...

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object. More...

int	TypeInfo
	TypeInfo. More...

Detailed Description

A character is the link between a motion source and a character model.

These classes are under development and may change dramatically between versions. This class exposes part of the functionality associated with a Character. A character can possess a number of potential sources at the same time, such as an actor and another character, but with only one active at any given time. Before setting the InputType to the desired value, one must make sure to have previously set either the InputCharacter or the InputActor.To obtain the list of characters present in a scene, you need to create an instance of class FBSystem, to obtain the current scene. The FBScene object holds the list of characters in the property Characters.

FBSystem lSystem;
FBScene* lScene = lSystem.Scene;
for( int lIdx = 0; lIdx < lScene->Characters.GetCount(); ++lIdx )
{
    FBTrace( "Character[%d]: '%s'\n", lIdx, (char*)lScene->Characters[lIdx] );
}

The current character selected in the Character tool can be obtained via the FBApplication object.

FBApplication lApplication;
FBCharacter* lCharacter = lApplication.CurrentCharacter;
if( lCharacter )
{
    FBTrace( "Current character is: '%s'\n", (char*)lCharacter->Name );
}
else
{
    FBTrace( "No character currently selected\n" );
}

See samples: CharacterMarkerSet.py, EnableGameModeOnSelectedCharacters_Z.py, MirrorPoseOverTime.py, PlotNonSelectedCharStoryTracks.py, PlotSelectedCharStoryTracks.py.

Constructor & Destructor Documentation

◆ FBCharacter()

FBCharacter ( str pName )

Constructor.

Parameters

pName Name of new character.

Member Function Documentation

◆ AddCharacterExtension()

AddCharacterExtension ( FBCharacterExtension pExt )

AddCharacterExtension.

Parameters

pExt	extension to be added to the character.

◆ Clone()

FBCharacter Clone ( )

Clone the character.

◆ ConnectControlRig()

ConnectControlRig	(	FBControlSet	pControlSet,
		bool	pUpdateLimit,
		bool	pResetHierarchy
	)

Connect a Control-Rig to the character.

Parameters

pControlSet	The control set to connect. NULL will disconnect the Control-Rig from the character.
pUpdateLimit	Whether to update the models' limit for a character. E.g. the Pre rotation and post rotation.
pResetHierarchy	Whether to reset hierarchy for a character.

◆ CopyAnimation()

CopyAnimation ( )

Copy the animation from the input character to us.

◆ CreateAuxiliary()

bool CreateAuxiliary	(	FBEffectorId	pEffectorId,
		bool	pPivot,
		float	pAuxReachT = `100`,
		float	pAuxReachR = `100`
	)

Create auxiliary on effector.

Parameters

pEffectorId	The effector ID.
pPivot	Create effector or pivot (pivot offset should be set on IKPivot property, at creation default values are set).
pAuxReachT	Default auxiliary effector reach for translation (IK Blend T since MotionBuilder 2013).
pAuxReachR	Default auxiliary effector reach for rotation (IK Blend R since MotionBuilder 2013).

Returns: True if auxiliary was created (can fail if FBLastEffectorSetIndex limit reached).

◆ CreateCharacterMarkerSet()

bool CreateCharacterMarkerSet ( bool pSetActive )

Create the Character Marker Set.

Parameters

pSetActive True when new input should be set and active.

Returns: True when marker got created and connected to character.

◆ CreateControlRig()

bool CreateControlRig ( bool pSetFKIK )

Create the Control-Rig.

Parameters

pSetFKIK true to use FK/IK or false to use IK only.

Returns: current state of the flag after the operation (true if it did succeed).

◆ CycleAnalysisCurrentCharacter()

CycleAnalysisCurrentCharacter ( )

Run Cycle Analysis on current character.

◆ DisconnectControlRig()

DisconnectControlRig ( )

Disconnect the Control-Rig from the character.

◆ FBDelete()

FBDelete ( )

Actual Character destructor.

This method is used to delete the actual character object represented by an instance of FBCharacter.

See sample: DeleteHierarchy.py.

◆ GetActiveBodyPart()

GetActiveBodyPart ( bool pActivePart )

Get the active body part array.

Parameters

pActivePart A pointer to an array of bool. On return, the index with a "true" value are active part.

◆ GetCharacterize()

bool GetCharacterize ( )

Get Characterize flag.

Returns: Current state of the Characterize flag.

◆ GetCharacterizeError()

str GetCharacterizeError ( )

Get error message for the previous SetCharacterizeOn operation.

Returns: The string containing all errors and warnings.

◆ GetCharacterMarkerSet()

FBCharacterMarkerSet GetCharacterMarkerSet ( bool pForce = False )

Obtain Input CharacterMarkerSet.

Parameters

pForce If True, will return the current CharacterMarkerSet even if the character is not in CharacterMarkerSet Input.

Returns: Return current Active CharacterMarkerSet, NULL if none.

◆ GetCtrlRigModel()

FBModel GetCtrlRigModel ( FBBodyNodeId pBodyNodeId )

Get the model associated with each body part in the Control Rig of the character.

Returns: The model in the Control Rig corresponding to the specified body part.

◆ GetCurrentControlSet()

FBControlSet GetCurrentControlSet ( bool pForce = False )

Obtain Input ControlSet.

Parameters

pForce If True, will return the current ControlSet even if the character is not in ControlSet Input.

Returns: Return current Active ControlSet, NULL if none.

◆ GetCycleAnalysisNode()

FBCycleAnalysisNode GetCycleAnalysisNode ( )

Get the Cycle Analysis Node from the current character.

Returns: Cycle Analysis Node linked to the current character, or create a new node

◆ GetEffectorModel()

FBModel GetEffectorModel	(	FBEffectorId	pEffectorId,
		FBEffectorSetID	pEffectorSetID = `FBEffectorSetDefault`
	)

Get the model associated with each effector in the Control Rig of the character.

Parameters

pEffectorId	The effector ID.
pEffectorSetID	Id of the ControlSet to obtain, if not specified the current one is taken.

Returns: The model in the Control Rig corresponding to the specified Effector.

◆ GetExternalSolver()

FBCharacterSolver GetExternalSolver ( )

Get a pointer to the external solver of a character, or NULL is no external solver is used on the character.

Returns: The pointer of the current External Solver, NULL if it's the internal solver.

◆ GetFKVisibility()

FBVisibilityState GetFKVisibility ( )

Get the FK visibility state.

Returns: The FK visibility state.

◆ GetFloorContactModel()

FBModel GetFloorContactModel ( FBFloorContactID pMemberIndex )

Get the model associated with the floor contact ID.

Parameters

pMemberIndex Id of the floor contact

Returns: The model associated with the floor contact ID

◆ GetGoalModel()

FBModel GetGoalModel ( FBBodyNodeId pBodyNodeId )

Get the goal model associated with each body part in the Character Marker Set of the character.

Returns: The model in the Character Marker Set corresponding to the specified body part.

◆ GetIKVisibility()

FBVisibilityState GetIKVisibility ( )

Get the IK visibility state.

Returns: The IK visibility state.

◆ GetIndexByModel()

FBBodyNodeId GetIndexByModel ( FBModel pModel )

Get the index associated with Given Model.

Returns: The model linked to the specified body part.

◆ GetModel()

FBModel GetModel ( FBBodyNodeId pBodyNodeId )

Get the model associated with each body part of the character.

Returns: The model linked to the specified body part.

◆ GetParentROffset()

GetParentROffset	(	FBBodyNodeId	pBodyNodeId,
		FBRVector	pRVector
	)

◆ GetROffset()

GetROffset	(	FBBodyNodeId	pBodyNodeId,
		FBRVector	pRVector
	)

◆ GetSkeletonVisibility()

FBVisibilityState GetSkeletonVisibility ( )

Get the skeleton visibility state.

Returns: The skeleton visibility state.

◆ GetSkinModelList()

GetSkinModelList ( FBModelList pSkinModelList )

Get the skin model associated with character bones.

Could be deformable model connected to bone via cluster, or non deformable model parented directly under the bones.

Parameters

pSkinModelList List to be filled up. (will not be cleared)

◆ GetSOffset()

GetSOffset	(	FBBodyNodeId	pBodyNodeId,
		FBSVector	pSVector
	)

◆ GetTOffset()

GetTOffset	(	FBBodyNodeId	pBodyNodeId,
		FBTVector	pTVector
	)

◆ GetTransformOffset()

GetTransformOffset	(	FBBodyNodeId	pBodyNodeId,
		FBMatrix	pOffsetMatrix
	)

◆ GoToStancePose()

GoToStancePose	(	bool	pPushUndo = `False`,
		bool	pIncludeCharacterExtensions = `True`
	)

Set the character in stance pose.

Parameters

pPushUndo	Should we push an undo transaction on the undo stack? Don't push undo in non UI thread.
pIncludeCharacterExtensions	Should the character extensions go to stance pose too?

◆ IsParentNodeOffset()

bool IsParentNodeOffset ( FBBodyNodeId pNodeId )

Check if there is an offset on Parent.

Parameters

pNodeId Node Id to Check.

Returns: True if there is an offset on Parent.

◆ IsRotationPin()

bool IsRotationPin ( FBEffectorId pEffectorIndex )

Return true if the object is Pinned in Rotation (Manipulation).

Parameters

pEffectorIndex Given Index to obtain Model

Returns: True if the effector is pinned in Rotation

◆ IsTranslationPin()

bool IsTranslationPin ( FBEffectorId pEffectorIndex )

Return true if the object is Pinned in Translation (Manipulation).

Parameters

pEffectorIndex Given Index to obtain Model

Returns: True if the effector is pinned in Translation

◆ PlotAnimation()

bool PlotAnimation	(	FBCharacterPlotWhere	pPlotWhere,
		FBPlotOptions	pPlotOptions
	)

Plot the animation of the character.

When plotting onto Control Rig while the Control Rig being the source of the Character, only the selected properties, based on the active keying group, will be plotted.

Parameters

pPlotWhere	Where to plot a character, control rig or Skeleton
pPlotOptions	Option parameters for plotting

Returns: True if the operation completed successfully.

◆ ReadyForRetarget()

bool ReadyForRetarget ( )

Test if character is ready for the Retarget operation (basically, is it in character input ?).

Returns: True if the character is ready.

◆ RemoveCharacterExtension()

RemoveCharacterExtension ( FBCharacterExtension pExt )

Get the model associated with each body part of the character.

Parameters

pExt	extension to be removed to the character.

◆ ResetProperties()

ResetProperties ( FBCharacterResetProperties pType )

Reset the properties of the character.

Parameters

pType Speficy which properties will be reset.

◆ Retarget()

Retarget ( bool pOnBaseLayer )

Retarget the animation from the input character to us.

Parameters

pOnBaseLayer if true, keys corrections will be made on base layer; else they will be made on another layer.

◆ SelectModels()

SelectModels	(	bool	pSelect,
		bool	pApplyToCharacter,
		bool	pApplyToRig,
		bool	pApplyToExtensions
	)

Select the objects that make a character.

Parameters

pSelect	True to select, false to deselect.
pApplyToCharacter	Should the character constraint be selected ?
pApplyToRig	should The rig (and its children) be selected ?
pApplyToExtensions	Should the character extensions (and their children) be selected ?

◆ SetCharacterizeOff()

SetCharacterizeOff ( )

Set Characterize flag off.

◆ SetCharacterizeOn()

bool SetCharacterizeOn ( bool pSetAsBiped )

Set the Characterize flag on.

Parameters

pSetAsBiped true to use biped characterization or false to use quadruped.

Returns: current state of the flag after the operation (true if it did succeed).

See sample: 3dsMaxBipedTemplate.py.

◆ SetExternalSolver() [1/2]

SetExternalSolver ( FBCharacterSolver pSolver )

Set character solver.

Parameters

pSolver Character solver that will be used by the character.

◆ SetExternalSolver() [2/2]

SetExternalSolver ( int pIndex )

Set character external solver.

Parameters

pIndex Index of external solver.

◆ SetFKVisibility()

bool SetFKVisibility ( bool pState )

Set the FK visibility state.

Parameters

pState The FK visibility state.

Returns: True if the operation is successful, false otherwise.

◆ SetIKVisibility()

bool SetIKVisibility ( bool pState )

Set the IK visibility state.

Parameters

pState The IK visibility state.

Returns: True if the operation is successful, false otherwise.

◆ SetRotationPin()

bool SetRotationPin	(	FBEffectorId	pEffectorIndex,
		bool	pValue
	)

Set the object Pinned in Rotation (Manipulation) status.

Parameters

pEffectorIndex	Given Index to obtain Model.
pValue	The object Pinned in Rotation status.

Returns: True if the operation is successful, false otherwise.

◆ SetSkeletonVisibility()

bool SetSkeletonVisibility ( bool pState )

Set the skeleton visibility state.

Parameters

pState The skeleton visibility state.

Returns: True if the operation is successful, false otherwise.

◆ SetTranslationPin()

bool SetTranslationPin	(	FBEffectorId	pEffectorIndex,
		bool	pValue
	)

Set the object Pinned in Translation (Manipulation) status.

Parameters

pEffectorIndex	Given Index to obtain Model
pValue	The object Pinned in Translation status.

Returns: True if the operation is successful, false otherwise.

Member Data Documentation

◆ ActiveInput

bool ActiveInput

Read Write Property: Is the character input active?

◆ CharacterExtensions

FBListCharacterExtension CharacterExtensions

List: Character Extensions in the character.

◆ ContactBehaviour

FBCharacterContactBehaviour ContactBehaviour

Read Write Property: Contact Behavior selection.

◆ FKFingerMultiplier

FBAnimatableDouble FKFingerMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered intermediate finger phalanges.

◆ FKFingerTipMultiplier

FBAnimatableDouble FKFingerTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered finger tip phalanges.

◆ FKThumbTipMultiplier

FBAnimatableDouble FKThumbTipMultiplier

Read Write Property: Used to augment the amount of FK propagation for unmarkered thumb tip phalanges.

◆ HipsTranslationMode

FBCharacterHipsTranslationMode HipsTranslationMode

Read Write Property: Hips Translation Mode.

◆ HumanFingerLimits

FBAnimatableBool HumanFingerLimits

Read Write Property: Enables/Disables human finger limits during actor solve.

◆ InputActor

FBActor InputActor

Read Write Property: The index of the actor used for the input.

◆ InputCharacter

FBCharacter InputCharacter

Read Write Property: The index of the character used for the input.

◆ InputType

FBCharacterInputType InputType

Read Write Property: The input type for the character (ex: Actor).

◆ InverseLeftElbow

bool InverseLeftElbow

Read Write Property: Is left elbow inverted.

◆ InverseLeftKnee

bool InverseLeftKnee

Read Write Property: Is left knee inverted.

◆ InverseRightElbow

bool InverseRightElbow

Read Write Property: Is right elbow inverted.

◆ InverseRightKnee

bool InverseRightKnee

Read Write Property: Is right knee inverted.

◆ KeyingMode

FBCharacterKeyingMode KeyingMode

Read Write Property: The current keying mode.

◆ LeftElbowKillPitch

bool LeftElbowKillPitch

Read Write Property: is Pitch used for Left elbow.

◆ LeftHandIndexIndex

FBAnimatableDouble LeftHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexMiddle

FBAnimatableDouble LeftHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexPinky

FBAnimatableDouble LeftHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandIndexRing

FBAnimatableDouble LeftHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleIndex

FBAnimatableDouble LeftHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleMiddle

FBAnimatableDouble LeftHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddlePinky

FBAnimatableDouble LeftHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandMiddleRing

FBAnimatableDouble LeftHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyIndex

FBAnimatableDouble LeftHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyMiddle

FBAnimatableDouble LeftHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyPinky

FBAnimatableDouble LeftHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandPinkyRing

FBAnimatableDouble LeftHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingIndex

FBAnimatableDouble LeftHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingMiddle

FBAnimatableDouble LeftHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingPinky

FBAnimatableDouble LeftHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftHandRingRing

FBAnimatableDouble LeftHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ LeftKneeKillPitch

bool LeftKneeKillPitch

Read Write Property: is Pitch used for Left knee.

◆ LockX

bool LockX

Read Write Property: Lock character skeleton in place on X axis.

◆ LockY

bool LockY

Read Write Property: Lock character skeleton in place on Y axis.

◆ LockZ

bool LockZ

Read Write Property: Lock character skeleton in place on Z axis.

◆ MirrorMode

bool MirrorMode

Read Write Property: is in mirror mode.

◆ RightElbowKillPitch

bool RightElbowKillPitch

Read Write Property: is Pitch used for Right elbow.

◆ RightHandIndexIndex

FBAnimatableDouble RightHandIndexIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexMiddle

FBAnimatableDouble RightHandIndexMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexPinky

FBAnimatableDouble RightHandIndexPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandIndexRing

FBAnimatableDouble RightHandIndexRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleIndex

FBAnimatableDouble RightHandMiddleIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleMiddle

FBAnimatableDouble RightHandMiddleMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddlePinky

FBAnimatableDouble RightHandMiddlePinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandMiddleRing

FBAnimatableDouble RightHandMiddleRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyIndex

FBAnimatableDouble RightHandPinkyIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyMiddle

FBAnimatableDouble RightHandPinkyMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyPinky

FBAnimatableDouble RightHandPinkyPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandPinkyRing

FBAnimatableDouble RightHandPinkyRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingIndex

FBAnimatableDouble RightHandRingIndex

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingMiddle

FBAnimatableDouble RightHandRingMiddle

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingPinky

FBAnimatableDouble RightHandRingPinky

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightHandRingRing

FBAnimatableDouble RightHandRingRing

Read Write Property: Used to set blending coefficients. Each of the 4 fingers can be a blend of the 4 finger. This is not available for thumbs.

◆ RightKneeKillPitch

bool RightKneeKillPitch

Read Write Property: is Pitch used for Right knee.

◆ RollSolver

FBCharacterRollSolver RollSolver

Read Write Property: Roll Solver selection.

◆ ShoulderCorrection

FBAnimatableDouble ShoulderCorrection

Read Write Property: shoulder correction values.

◆ SyncMode

bool SyncMode

Read Write Property: is character in sync mode.

◆ WriteReference

bool WriteReference

Read Write Property: are we writing back on reference.

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FBCharacter()

Member Function Documentation

◆ AddCharacterExtension()

◆ Clone()

◆ ConnectControlRig()

◆ CopyAnimation()

◆ CreateAuxiliary()

◆ CreateCharacterMarkerSet()

◆ CreateControlRig()

◆ CycleAnalysisCurrentCharacter()

◆ DisconnectControlRig()

◆ FBDelete()

◆ GetActiveBodyPart()

◆ GetCharacterize()

◆ GetCharacterizeError()

◆ GetCharacterMarkerSet()

◆ GetCtrlRigModel()

◆ GetCurrentControlSet()

◆ GetCycleAnalysisNode()

◆ GetEffectorModel()

◆ GetExternalSolver()

◆ GetFKVisibility()

◆ GetFloorContactModel()

◆ GetGoalModel()

◆ GetIKVisibility()

◆ GetIndexByModel()

◆ GetModel()

◆ GetParentROffset()

◆ GetROffset()

◆ GetSkeletonVisibility()

◆ GetSkinModelList()

◆ GetSOffset()

◆ GetTOffset()

◆ GetTransformOffset()

◆ GoToStancePose()

◆ IsParentNodeOffset()

◆ IsRotationPin()

◆ IsTranslationPin()

◆ PlotAnimation()

◆ ReadyForRetarget()

◆ RemoveCharacterExtension()

◆ ResetProperties()

◆ Retarget()

◆ SelectModels()

◆ SetCharacterizeOff()

◆ SetCharacterizeOn()

◆ SetExternalSolver() [1/2]

◆ SetExternalSolver() [2/2]

◆ SetFKVisibility()

◆ SetIKVisibility()

◆ SetRotationPin()

◆ SetSkeletonVisibility()

◆ SetTranslationPin()

Member Data Documentation

◆ ActiveInput

◆ CharacterExtensions

◆ ContactBehaviour

◆ FKFingerMultiplier

◆ FKFingerTipMultiplier

◆ FKThumbTipMultiplier

◆ HipsTranslationMode

◆ HumanFingerLimits

◆ InputActor

◆ InputCharacter

◆ InputType

◆ InverseLeftElbow

◆ InverseLeftKnee

◆ InverseRightElbow

◆ InverseRightKnee

◆ KeyingMode

◆ LeftElbowKillPitch

◆ LeftHandIndexIndex

◆ LeftHandIndexMiddle

◆ LeftHandIndexPinky

◆ LeftHandIndexRing

◆ LeftHandMiddleIndex
