FBCharacterExtension Class Reference

Objects Grouping class. More...

#include <pyfbsdk_generated.h>

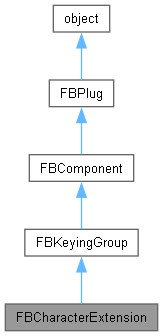

Inheritance diagram for FBCharacterExtension:

Public Member Functions
	FBCharacterExtension (str pName)
	Constructor.
	AddObjectProperties (FBComponent pObj)
	Add TR Properties from Object.
	FBDelete ()
	Virtual FBDelete function.
FBCharacter	GetCharacter ()
	Return the attached Character.
FBComponent	GetExtensionObjectWithLabelName (str pLabelName)
	Find stored object based on label name.
	GetLabelNameWithExtensionObject (str pLabelName, FBComponent pObj, bool pReturnObjectNameIfNotFound=False)
	Find the label name that was used to store object pose.
FBCharacterExtension	GetMirrorExtension ()
	Return the character extension determined by MirrorLabel.
int	GetRetargetPropertyCount ()
	Return the total number of retarget properties.
FBProperty	GetRetargetReferenceProperty (int pPropIndex)
	Return the reference property of the given index.
FBProperty	GetRetargetSourceProperty (int pPropIndex)
	Return the source property of the given index (the source property is the property that drives the reference property during retargeting).
FBCharacterExtension	GetSourceExtension ()
	Return the character extension that is used to drive this extension during retargeting.
int	GetSourceExtensionIndex ()
	Return the enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.
FBObjectPose	GetStancePose ()
	Return stance pose.
	GoToStancePose ()
	Reset object position to the stance.
bool	IsElementSelected ()
	Return true if one object in object dependency list is selected.
bool	IsPropertyIncluded (FBProperty pProp)
	Return true if the property is in character extension.
	RemoveObjectAndProperties (FBComponent pObj)
	Remove TR Properties from Object.
	RemoveRetargetSourceProperty (int pPropIndex)
	Remove the source property for retargeting.
	SetRetargetSourceProperty (int pPropIndex, FBProperty pSourceProp)
	Set the source property for retargeting.
	SetSourceExtension (FBCharacterExtension pSourceExtension)
	Set the character extension to drive this extension during retargeting.
	SetSourceExtensionIndex (int pSrcExtIndex)
	Set the enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.
	UpdateStancePose ()
	Update the stance pose to the current position of the character extension element.
Public Member Functions inherited from FBKeyingGroup
	FBKeyingGroup (str pName, FBKeyingGroupType pType)
	Constructor.
	AddObjectDependency (FBComponent pObj)
	AddObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).
	AddProperty (FBProperty pProp)
	Add property to be keyed when current keying group is active.
	ClearAllItems ()
	ClearAllItems clear object dependency, properties and child keying group.
	DeselectAllAnimatableProperties ()
	FBDeselectAllAnimatableProperties, deselect all animatable properties in the scene.
	FBDelete ()
	Virtual FBDelete function.
int	FindPropertyIndex (FBProperty pProp)
	FindPropertyIndex.
FBProperty	GetCumulativeProperty (int pIndex, bool pStopAtVisible=False)
	GetCumulativeProperty Same as GetSubKeyingGroup but recursive in child keying group.
int	GetCumulativePropertyCount (bool pStopAtVisible=False)
	GetCumulativePropertyCount Same as GetSubKeyingGroupCount but recursive in child keying group.
FBKeyingGroup	GetParentKeyingGroup (int pIndex)
	GetParentKeyingGroup.
int	GetParentKeyingGroupCount ()
	GetParentKeyingGroupCount.
FBProperty	GetProperty (int pIndex)
	GetProperty from the keyinggroup list.
int	GetPropertyCount ()
	GetPropertyCount.
FBKeyingGroup	GetSubKeyingGroup (int pIndex)
	GetSubKeyingGroup.
int	GetSubKeyingGroupCount ()
	GetSubKeyingGroupCount.
FBComponent	GetSubObject (int pIndex)
	GetSubObject.
int	GetSubObjectCount ()
	GetSubObjectCount.
bool	IsObjectDependency (FBComponent pObj)
	IsObjectDependency determine if the pObj is a dependency.
bool	IsObjectDependencySelected ()
	IsObjectDependencySelected.
	RemoveAllObjectDependency ()
	IsObjectDependencySelected empty the content list.
	RemoveAllProperties ()
	IsObjectDependencySelected empty the property list.
	RemoveAllSubKeyingGroup ()
	RemoveAllSubKeyingGroup empty the child keying group.
	RemoveObjectDependency (FBComponent pObj)
	RemoveObjectDependency An object dependency is the content of a keying group and will activate keying group when selected (activation only works if the keying group is a character extension).
	RemoveProperty (FBProperty pProp)
	RemoveProperty from the keyinggroup list.
	SetActive (bool pActive)
	SetActive, activate the keying group, replacing the other keying group.
	SetActiveAppend (bool pActive)
	SetActiveAppend, activate and append the keying group to the other keying groups.
	SetEnabled (bool pEnable)
	SetEnabled, makes the keying group available in keying group list of the key control UI.
	SetObjectType (FBComponent pObject)
	Set the object type filter for and object type keying group.
Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.
str	ClassName ()
	Get the class name.
	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
bool	FBCreate ()
	Open Reality Creation function.
	FBDelete ()
	Open Reality deletion function.
	FBDestroy ()
	Open Reality destruction function.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.
	HardSelect ()
	HardSelect.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
bool	Is (int pTypeId)
	Returns true if object is of type TypeId.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.
int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.
FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.
	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.
	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
bool	IncludePartInBodyPart
	Read Write Property: Include or not this extension when the Body Part mode is active.
bool	IncludePartInFullBody
	Read Write Property: Include or not this extension when the Full Body mode is active.
str	Label
	Read Write Property: The logical name of the extension, use for mirroring.
int	MirrorLabel
	Read Write Property: Enum that indicate which extension is used as mirror, 0 is none, 1 is self, 2-n represent the (ith - 2)character extension in the attached character excluding self.
FBPlotAllowed	PlotAllowed
	Read Write Property: Controls if objects in the set are transformable.
FBModel	ReferenceModel
	Read Write Property: Controls the referential of the extension.
FBCharacterExtensionRetargetMode	RetargetMode
	Read Write Property: Character extension retarget mode.
FBCharacterExtensionStancePoseMode	StancePoseMode
	Read Write Property: Character extension stance pose mode.
FBSyncActivationAndVisibilityMode	SyncActivationAndVisibilityMode
	Read Write Property: The "Sync Activation & Visibility" mode.
Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.
str	LongName
	Read Write Property: Name and namespace for object.
str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.
FBListComponent	Parents
	List: Parents.
FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
bool	Selected
	Read Write Property: Selected property.
int	TypeInfo
	Contains the Type information of the object.
Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.
int	TypeInfo
	TypeInfo.

Detailed Description

Objects Grouping class.

This class is an interface to manipulate object's grouping in the scene.

See sample: CreateCharacterExtensionOnSelectedObject.py.

Constructor & Destructor Documentation

FBCharacterExtension()

FBCharacterExtension

(

str

pName

)

Constructor.

Parameters

pName

Group name.

Member Function Documentation

AddObjectProperties()

AddObjectProperties

(

FBComponent

pObj

)

Add TR Properties from Object.

Parameters

pObj	Object to add TR properties.

FBDelete()

FBDelete

(

)

Virtual FBDelete function.

See sample: DeleteHierarchy.py.

GetCharacter()

FBCharacter GetCharacter

(

)

Return the attached Character.

Returns

attached Character.

GetExtensionObjectWithLabelName()

FBComponent GetExtensionObjectWithLabelName

(

str

pLabelName

)

Find stored object based on label name.

Parameters

pLabelName

The label name.

Returns

The extension object.

GetLabelNameWithExtensionObject()

GetLabelNameWithExtensionObject	(	str	pLabelName,
		FBComponent	pObj,
		bool	pReturnObjectNameIfNotFound = False
	)

Find the label name that was used to store object pose.

Parameters

pLabelName	The label name that was used to store object pose.
pObj	The extension object.
pReturnObjectNameIfNotFound	If the value is true, if the object is not found, pLabelName will be set to the object name; otherwise pLabelName will be set to empty string. By default the value is false.

GetMirrorExtension()

FBCharacterExtension GetMirrorExtension

(

)

Return the character extension determined by MirrorLabel.

Returns

character extension determined by MirrorLabel.

GetRetargetPropertyCount()

int GetRetargetPropertyCount

(

)

Return the total number of retarget properties.

Returns

The total number of retarget properties.

GetRetargetReferenceProperty()

FBProperty GetRetargetReferenceProperty

(

int

pPropIndex

)

Return the reference property of the given index.

Parameters

pPropIndex

Index to query.

Returns

Reference property of the given index.

GetRetargetSourceProperty()

FBProperty GetRetargetSourceProperty

(

int

pPropIndex

)

Return the source property of the given index (the source property is the property that drives the reference property during retargeting).

Parameters

pPropIndex

Index to query.

Returns

Source property (the property that drives the reference property during retargeting) of the given index.

GetSourceExtension()

FBCharacterExtension GetSourceExtension

(

)

Return the character extension that is used to drive this extension during retargeting.

Returns

The character extension that is used to drive this extension during retargeting.

GetSourceExtensionIndex()

int GetSourceExtensionIndex

(

)

Return the enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.

Returns

The enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.

GetStancePose()

FBObjectPose GetStancePose

(

)

Return stance pose.

Returns

stance pose.

GoToStancePose()

GoToStancePose

(

)

Reset object position to the stance.

IsElementSelected()

bool IsElementSelected

(

)

Return true if one object in object dependency list is selected.

Returns

true if one object in object dependency list is selected.

IsPropertyIncluded()

bool IsPropertyIncluded

(

FBProperty

pProp

)

Return true if the property is in character extension.

Parameters

pProp

Property to check.

Returns

true if the property is in character extension.

RemoveObjectAndProperties()

RemoveObjectAndProperties

(

FBComponent

pObj

)

Remove TR Properties from Object.

Parameters

pObj	Object to remove TR properties.

RemoveRetargetSourceProperty()

RemoveRetargetSourceProperty

(

int

pPropIndex

)

Remove the source property for retargeting.

Only applicable if RetargetMode is Manually Assign.

Parameters

pPropIndex

Index to remove.

Remarks

Only applicable if RetargetMode is Manually Assign.

SetRetargetSourceProperty()

SetRetargetSourceProperty	(	int	pPropIndex,
		FBProperty	pSourceProp
	)

Set the source property for retargeting.

Only applicable if RetargetMode is Manually Assign.

Parameters

pPropIndex	Index to set.
pSourceProp	Source property to set.

Remarks

Only applicable if RetargetMode is Manually Assign.

SetSourceExtension()

SetSourceExtension

(

FBCharacterExtension

pSourceExtension

)

Set the character extension to drive this extension during retargeting.

Only applicable if RetargetMode is Assign.

Parameters

pSourceExtension

The source extension to drive this extension during retargeting.

Remarks

Only applicable if RetargetMode is Assign.

SetSourceExtensionIndex()

SetSourceExtensionIndex

(

int

pSrcExtIndex

)

Set the enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.

Only applicable if RetargetMode is Manually Assign.

Parameters

pSrcExtIndex

Enum that indicate which extension is used as a source during retargeting, 0 is none, 1-n represent the (ith - 1)character extension in the source character.

Remarks

Only applicable if RetargetMode is Manually Assign.

UpdateStancePose()

UpdateStancePose

(

)

Update the stance pose to the current position of the character extension element.

Member Data Documentation

IncludePartInBodyPart

bool IncludePartInBodyPart

Read Write Property: Include or not this extension when the Body Part mode is active.

IncludePartInFullBody

bool IncludePartInFullBody

Read Write Property: Include or not this extension when the Full Body mode is active.

Label

str Label

Read Write Property: The logical name of the extension, use for mirroring.

MirrorLabel

int MirrorLabel

Read Write Property: Enum that indicate which extension is used as mirror, 0 is none, 1 is self, 2-n represent the (ith - 2)character extension in the attached character excluding self.

PlotAllowed

FBPlotAllowed PlotAllowed

Read Write Property: Controls if objects in the set are transformable.

ReferenceModel

FBModel ReferenceModel

Read Write Property: Controls the referential of the extension.

RetargetMode

FBCharacterExtensionRetargetMode RetargetMode

Read Write Property: Character extension retarget mode.

StancePoseMode

FBCharacterExtensionStancePoseMode StancePoseMode

Read Write Property: Character extension stance pose mode.

SyncActivationAndVisibilityMode

FBSyncActivationAndVisibilityMode SyncActivationAndVisibilityMode

Read Write Property: The "Sync Activation & Visibility" mode.
