Model marker class. More...

#include <pyfbsdk_generated.h>

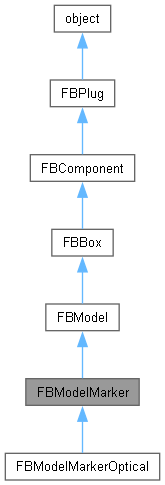

Inheritance diagram for FBModelMarker:

[legend]

Public Member Functions
	FBModelMarker (str pName)
	Constructor.

Public Member Functions inherited from FBModel
	FBModel (str pName)
	Constructor.

FBModel	Clone ()
	Clone the model.

	CollapseInSchematic ()
	Collapse the model in the schematic view.

	DofToLRM (FBMatrix pLM, FBRVector pDof)
	Convert object space vector to local matrix.

	ExpandInSchematic ()
	Expand the model in the schematic view.

	FBDelete ()
	Open Reality deletion function.

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Model'.

	ForceAlwaysEvaluate ()
	Force Always Evaluate.

FBColor	GetAdditionalUniqueColorID (unsigned int pIndex)
	Get Additional Unique Color Id.

unsigned int	GetAdditionalUniqueColorIDCount ()
	Get additional unique color count.

	GetBoundingBox (FBVector3d pMin, FBVector3d pMax)
	Get the bounding box of the model.

unsigned int	GetHierarchyWorldMatrices (FBMatrix pMatricesArray, unsigned int pMatricesArrayCount, FBModelHiercharyTraverserType pHiercharyTraverserType, FBEvaluateInfo pEvaluateInfo=None)
	Computes the global transform matrices between this model and all its children (all levels).

	GetLocalTransformationMatrixWithGlobalRotationDoF (FBMatrix pMatrix, bool pInverse=False, FBEvaluateInfo pEvaluateInfo=None)
	Get the local transformation (or local inverse transformation) matrix with the global Rotation DoF values from the model.

	GetMatrix (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, FBEvaluateInfo pEvaluateInfo=None)
	Get a matrix from the model.

FBVector2d	GetSchematicPosition ()
	Get the position in the schematic view for the model.

int	GetSelectedPointsCount ()
	Get the number of selected points in the model.

	GetVector (FBVector3d pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=True, FBEvaluateInfo pEvaluateInfo=None)
	Get a vector from the model.

bool	IsCollapsedInSchematic ()
	Returns if the model is collapsed or not (expanded) in the schematic view.

bool	IsEvaluationReady (FBModelEvaluationTaskType pWhat, FBEvaluateInfo pEvaluateInfo=None)
	Is the model's evaluation task result ready.

bool	IsForceAlwaysEvaluate ()
	Return Force Always Evaluate status.

bool	IsVisible (FBEvaluateInfo pEvaluateInfo=None)
	If the model is visible.

	LRMToDof (FBRVector pDof, FBMatrix pLM)
	Convert local matrix to object space vector.

	MatrixToRotation (FBRVector pRotation, FBMatrix pMatrix)
	Convert Rotation Matrix to Euler Vector based on model's rotation order.

int	NoFrustumCullingRelease ()
	Release no frustum culling request.

int	NoFrustumCullingRequire ()
	Acquire no frustum culling request.

bool	RayCast (FBCamera pCamera, int pMouseX, int pMouseY, FBVector3d pHitPosition, FBVector3d pHitNormal)
	Ray cast test.

	RotationToMatrix (FBMatrix pMatrix, FBRVector pRotation)
	Convert Euler Vector to Rotation Matrix based on model's rotation order.

bool	SetAdditionalUniqueColorIDCount (unsigned int pCount)
	Request additional Unique color IDs.

	SetMatrix (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None)
	Set a matrix for the model.

	SetMatrixWithPrecision (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None, float pPrecision=FBMat2EulerDegenerateForPrecision10)
	Set a matrix for the model.

	SetSchematicPosition (int pX, int pY)
	Set the position in the schematic view for the model.

	SetSchematicPosition (FBVector2d pVector2d)
	Set the position in the schematic view for the model.

	SetVector (FBVector3d pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None)
	Set a vector for the model.

	SetupPropertiesForShapes ()
	Setup Shape Properties.

bool	UseFrustumCulling ()
	Get the current Frustum Culling Status.

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBColor	Color
	Read Write Property: Color of model marker.

FBVector3d	IKPivot
	Read Write Property: marker Pivot Offset.

float	Length
	Read Write Property: Length for capsule (not related to scaling).

FBMarkerLook	Look
	Read Write Property: Look of model marker.

FBMarkerResolutionLevel	ResLevel
	Read Write Property: Resolution level of model marker.

float	Size
	Read Write Property: Size (not related to scaling).

FBMarkerType	Type
	Read Write Property: Type of model marker.

Public Attributes inherited from FBModel
FBAnimationNode	AnimationNode
	Read Only Property: Animation node of the model.

bool	BlendShapeDeformable
	Read Write Property: Model blend-shape deformable. Not Savable

bool	CastsShadows
	Read Write Property: If true, the geometry will produce shadows.

FBListModel	Children
	List: Children for model.

bool	ConstrainDeformable
	Read Write Property: Model constraint deformable. Not Savable

FBListDeformer	Deformers
	List: Deformers (Skeleton Deformer or Point Cache Deformer).

FBVector3d	GeometricRotation
	Read Write Property: Geometric rotation.

FBVector3d	GeometricScaling
	Read Write Property: Geometric scaling.

FBVector3d	GeometricTranslation
	Read Write Property: Geometric translation.

FBGeometry	Geometry
	Read Write Property: Geometry for the model.

int	GeometryUpdateId
	Read Only Property: model geometry (vertex data) related update id.

bool	Icon3D
	Read Write Property: Is model a 3D icon?

bool	IsConstrained
	Read Only Property: Is model constrained?

bool	IsDeformable
	Read Only Property: Is model deformable?

FBModel	LookAt
	Read Write Property: Look at model (interest point).

FBListMaterial	Materials
	List: Materials for model.

FBModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model.

FBModel	Parent
	Read Write Property: Parent model.

bool	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'.

bool	PointCacheDeformable
	Read Write Property: Model point cache deformable. Not Savable

bool	PointCacheRecord
	Read Write Property: Record Point Cache for model? Not Savable

FBVector3d	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true)

FBVector3d	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true)

bool	PrimaryVisibility
	Read Write Property: Control the geometry render state. Geometry can still cast shadows even if this is turned off.

bool	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation.

bool	ReceiveShadows
	Read Write Property: If true, the geometry will receive shadows.

FBAnimatableVector3d	Rotation
	Read Write Property: Lcl rotation.

bool	RotationActive
	Read Write Property: Is model using Rotation Limits?

FBVector3d	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true)

bool	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X?

bool	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y?

bool	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z?

FBVector3d	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true)

bool	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X?

bool	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y?

bool	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z?

FBModelRotationOrder	RotationOrder
	Read Write Property: Rotation order.

bool	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits?

FBAnimatableVector3d	Scaling
	Read Write Property: Lcl scaling.

FBScene	Scene
	Read Only Property: Scene containing the model.

FBListShader	Shaders
	List: Shaders for model.

FBModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model.

bool	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'.

bool	SkeletonDeformable
	Read Write Property: Model skeleton deformable. Not Savable

bool	SoftSelected
	Read Write Property: Is model Soft selected?

FBListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials).

bool	Transformable
	Read Write Property: Indicate if a model can be transformable in the viewer. This has a default value of 'true'.

FBAnimatableVector3d	Translation
	Read Write Property: Lcl translation.

FBColor	UniqueColorId
	Read Only Property: Unique Color Id for color based viewer picking. Color channel values are in the range [0, 1] with 1.0/255 precision.

FBModel	UpVector
	Read Write Property: UpVector model.

FBAnimatableBool	Visibility
	Read Write Property: Visibility of model. This can be overridden by the 'Show' property.

bool	VisibilityInheritance
	Read Write Property: //!< When this value is set to True the Visibility of this model is also applied to all its descendants

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

Model marker class.

See sample: FBCamera.py.

Constructor & Destructor Documentation

◆ FBModelMarker()

FBModelMarker ( str pName )

Constructor.

Parameters

pName Name of model marker. If pObject is not NULL, pName will be ignored.

Member Data Documentation

◆ Color

FBColor Color

Read Write Property: Color of model marker.

◆ IKPivot

FBVector3d IKPivot

Read Write Property: marker Pivot Offset.

◆ Length

float Length

Read Write Property: Length for capsule (not related to scaling).

◆ Look

FBMarkerLook Look

Read Write Property: Look of model marker.

◆ ResLevel

FBMarkerResolutionLevel ResLevel

Read Write Property: Resolution level of model marker.

◆ Size

float Size

Read Write Property: Size (not related to scaling).

◆ Type

FBMarkerType Type

Read Write Property: Type of model marker.

Public Member Functions

Public Attributes
